Datasheet STPS2H100 (STMicroelectronics) - 6
| Manufacturer | STMicroelectronics |
| Description | 100 V, 2 A power Schottky rectifier |
| Pages / Page | 19 / 6 — STPS2H100. Characteristics (curves) |
| File Format / Size | PDF / 413 Kb |
| Document Language | English |
STPS2H100. Characteristics (curves)
Model Line for this Datasheet
Text Version of Document

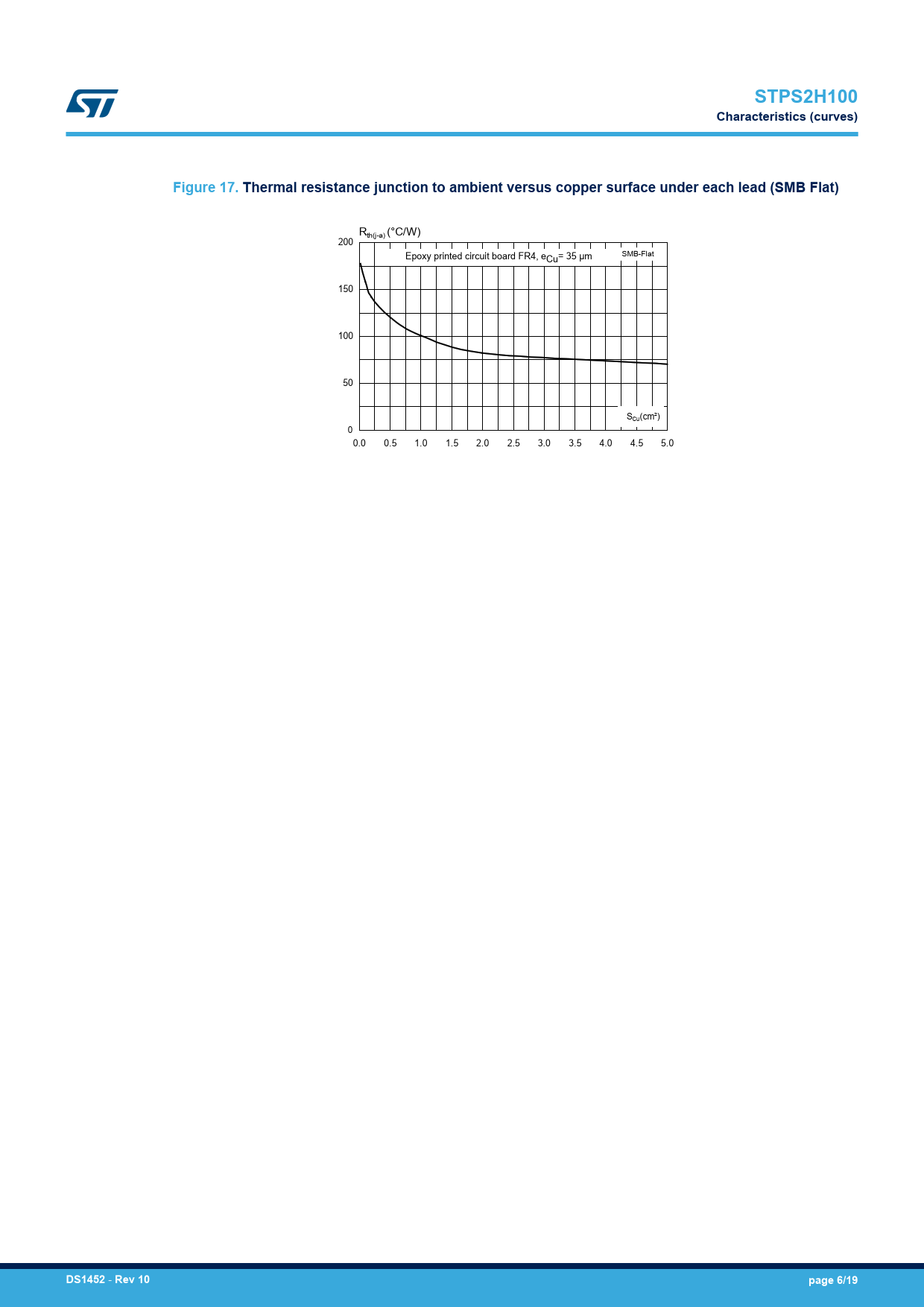

STPS2H100 Characteristics (curves) Figure 17. Thermal resistance junction to ambient versus copper surface under each lead (SMB Flat)
Rth(j-a) (°C/W) 200 SMB-Flat Epoxy printed circuit board FR4, eCu= 35 µm 150 100 50 SCu(cm²) 0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
DS1452
-
Rev 10 page 6/19
