STPS2H100. Package information. 2.1. SMA Flat package information. Figure 18. SMA Flat package outline
Model Line for this Datasheet
Text Version of Document
STPS2H100 Package information 2 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark.
2.1 SMA Flat package information
• Epoxy meets UL94, V0 • Lead-free package

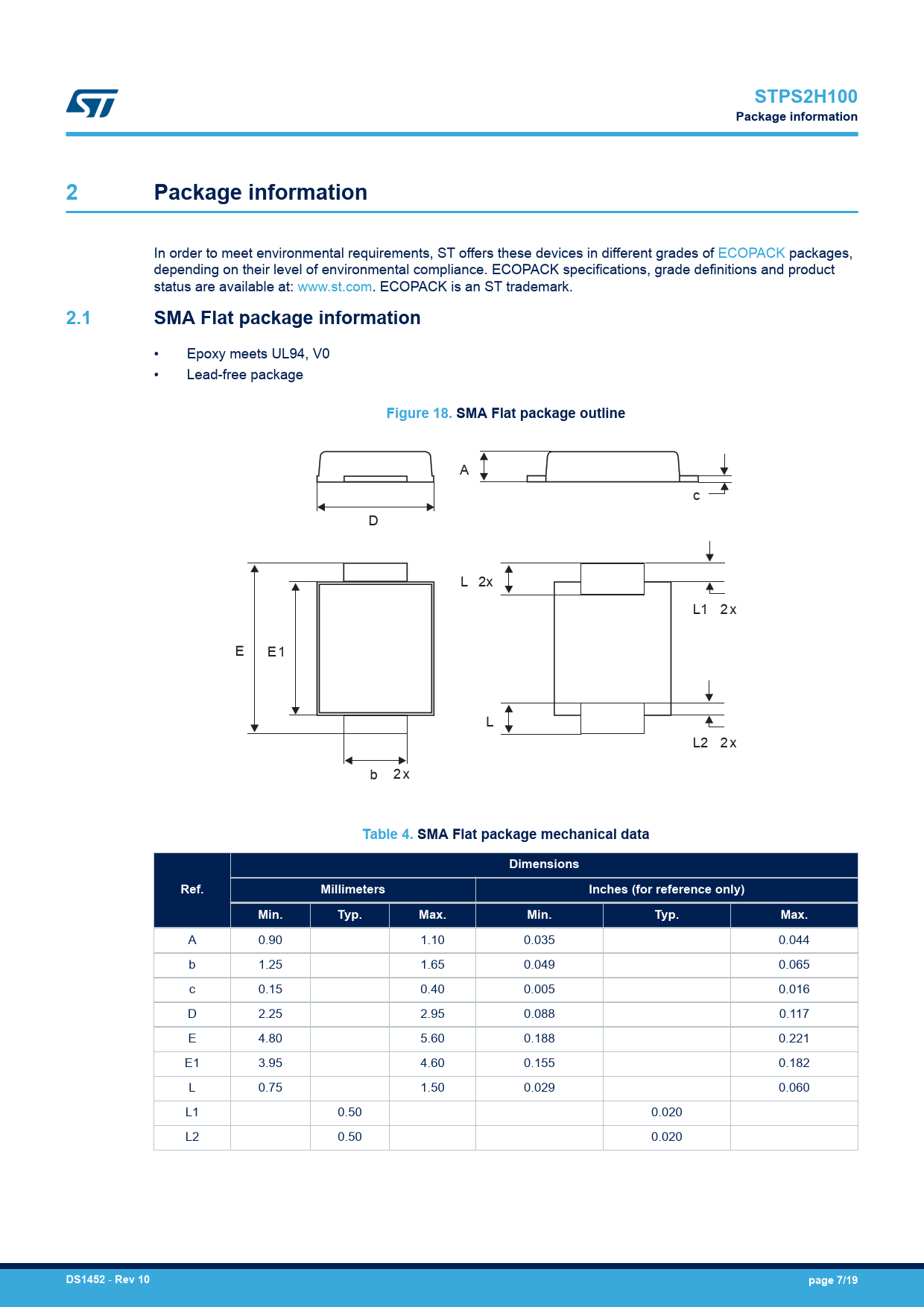

Figure 18. SMA Flat package outline
A c D L 2x L1 2 x E E1 L L2 2 x b 2 x
Table 4. SMA Flat package mechanical data Dimensions Ref. Millimeters Inches (for reference only) Min. Typ. Max. Min. Typ. Max.
A 0.90 1.10 0.035 0.044 b 1.25 1.65 0.049 0.065 c 0.15 0.40 0.005 0.016 D 2.25 2.95 0.088 0.117 E 4.80 5.60 0.188 0.221 E1 3.95 4.60 0.155 0.182 L 0.75 1.50 0.029 0.060 L1 0.50 0.020 L2 0.50 0.020
DS1452
-
Rev 10 page 7/19
