Datasheet STPS2H100 (STMicroelectronics) - 8
| Manufacturer | STMicroelectronics |
| Description | 100 V, 2 A power Schottky rectifier |
| Pages / Page | 19 / 8 — STPS2H100. SMA Flat package information. Figure 19. SMA Flat recommended … |
| File Format / Size | PDF / 413 Kb |
| Document Language | English |

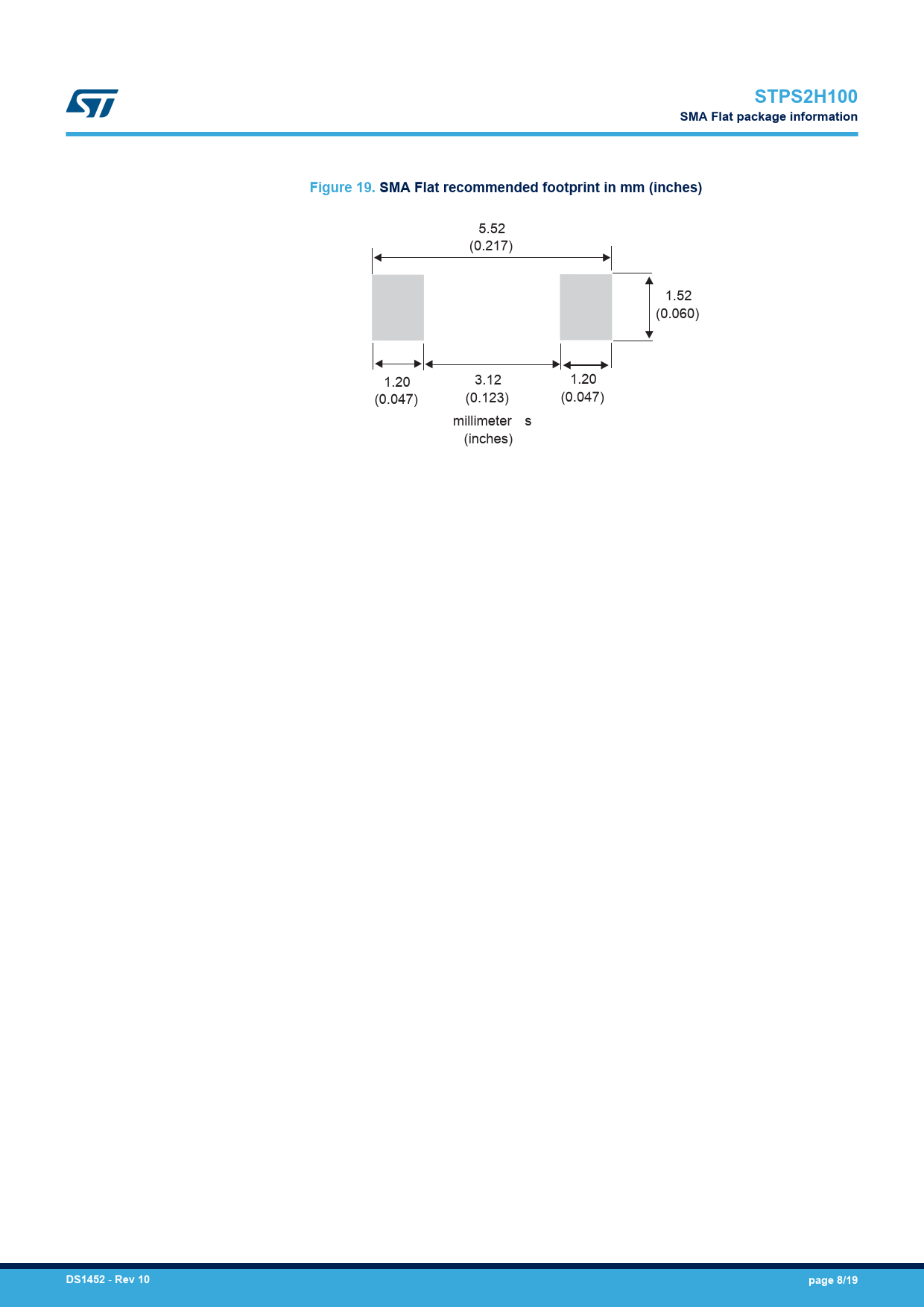

STPS2H100. SMA Flat package information. Figure 19. SMA Flat recommended footprint in mm (inches). DS1452. Rev 10. page 8/19
Model Line for this Datasheet
Text Version of Document
STPS2H100 SMA Flat package information Figure 19. SMA Flat recommended footprint in mm (inches)
5.52 (0.217) 1.52 (0.060) 1.20 3.12 1.20 (0.047) (0.123) (0.047) millimeter s (inches)
DS1452
-
Rev 10 page 8/19
