Datasheet STPS2H100 (STMicroelectronics) - 9
| Manufacturer | STMicroelectronics |
| Description | 100 V, 2 A power Schottky rectifier |
| Pages / Page | 19 / 9 — STPS2H100. SMA Flat Notch package information. 2.2. Figure 20. SMA Flat … |
| File Format / Size | PDF / 413 Kb |
| Document Language | English |
STPS2H100. SMA Flat Notch package information. 2.2. Figure 20. SMA Flat Notch package outline
Model Line for this Datasheet
Text Version of Document
STPS2H100 SMA Flat Notch package information 2.2 SMA Flat Notch package information
• Epoxy meets UL94, V0 • Cooling method: by conduction (C) • Band indicates cathode

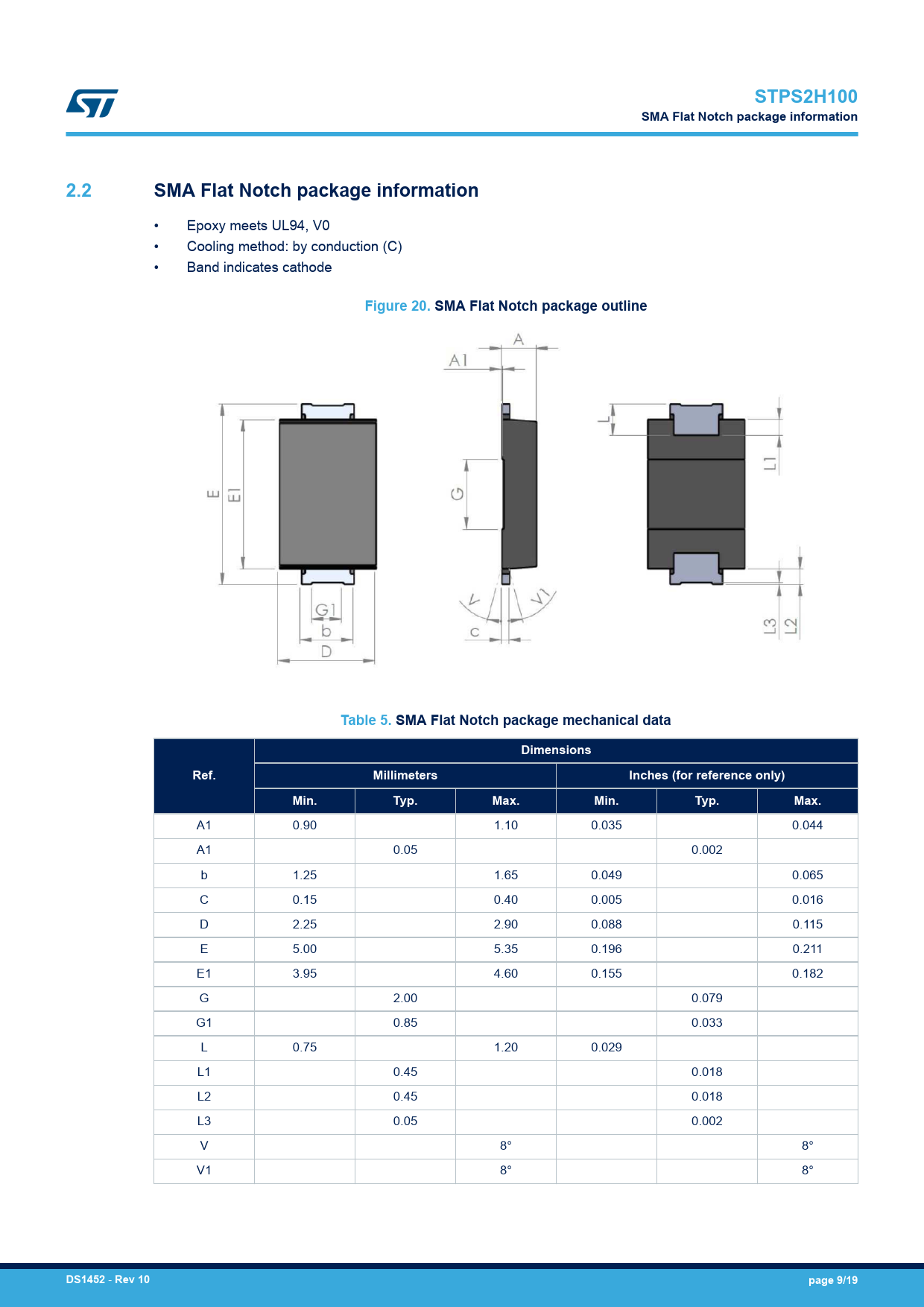

Figure 20. SMA Flat Notch package outline Table 5. SMA Flat Notch package mechanical data Dimensions Ref. Millimeters Inches (for reference only) Min. Typ. Max. Min. Typ. Max.
A1 0.90 1.10 0.035 0.044 A1 0.05 0.002 b 1.25 1.65 0.049 0.065 C 0.15 0.40 0.005 0.016 D 2.25 2.90 0.088 0.115 E 5.00 5.35 0.196 0.211 E1 3.95 4.60 0.155 0.182 G 2.00 0.079 G1 0.85 0.033 L 0.75 1.20 0.029 L1 0.45 0.018 L2 0.45 0.018 L3 0.05 0.002 V 8° 8° V1 8° 8°
DS1452
-
Rev 10 page 9/19
