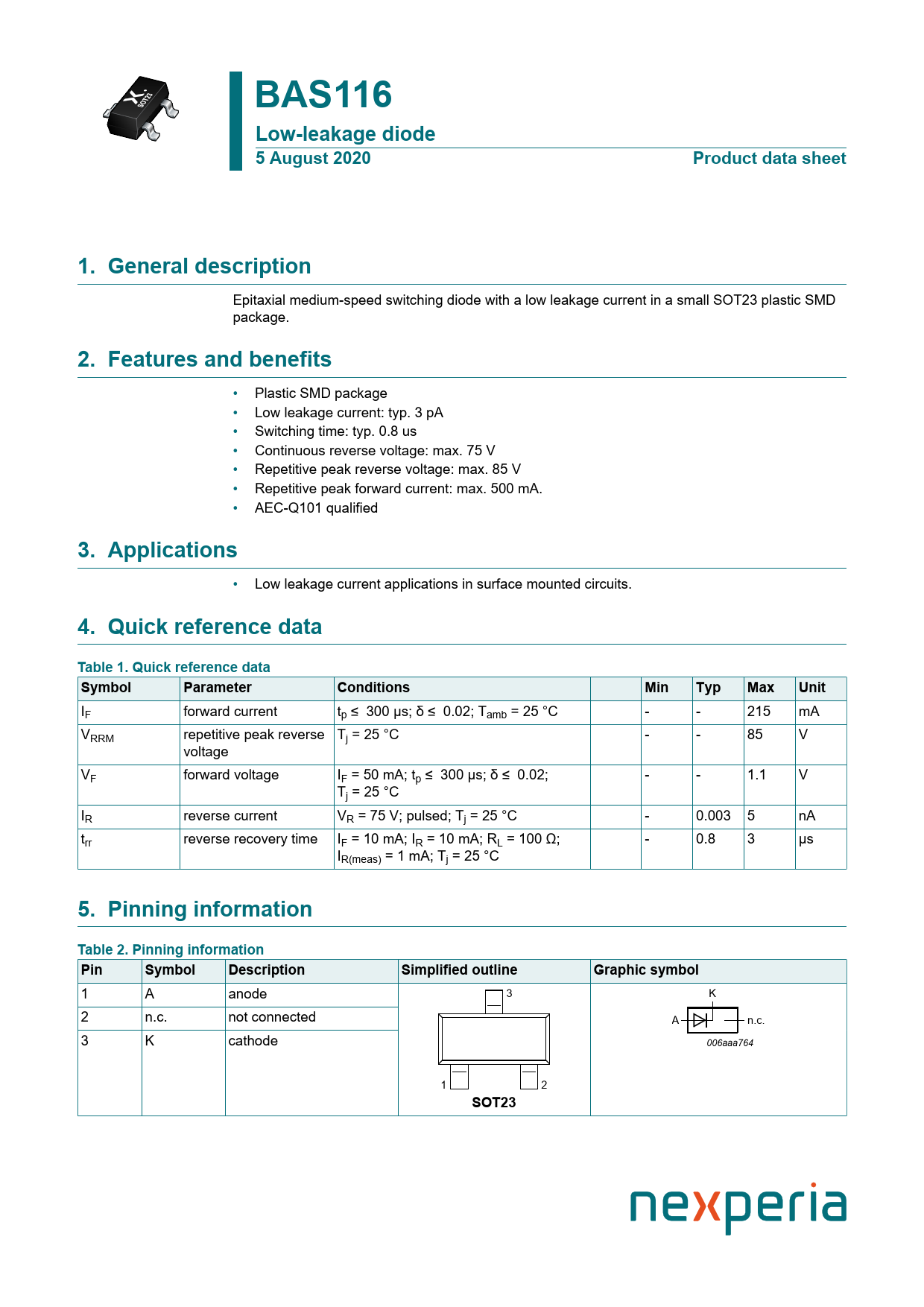

BAS116 Low-leakage diode 5 August 2020 Product data sheet 1. General description
Epitaxial medium-speed switching diode with a low leakage current in a small SOT23 plastic SMD package.
2. Features and benefits
• Plastic SMD package • Low leakage current: typ. 3 pA • Switching time: typ. 0.8 us • Continuous reverse voltage: max. 75 V • Repetitive peak reverse voltage: max. 85 V • Repetitive peak forward current: max. 500 mA. • AEC-Q101 qualified
3. Applications
• Low leakage current applications in surface mounted circuits.
4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
IF forward current tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C - - 215 mA VRRM repetitive peak reverse Tj = 25 °C - - 85 V voltage VF forward voltage IF = 50 mA; tp ≤ 300 µs; δ ≤ 0.02; - - 1.1 V Tj = 25 °C IR reverse current VR = 75 V; pulsed; Tj = 25 °C - 0.003 5 nA trr reverse recovery time IF = 10 mA; IR = 10 mA; RL = 100 Ω; - 0.8 3 µs IR(meas) = 1 mA; Tj = 25 °C
5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 A anode 3 K 2 n.c. not connected A n.c. 3 K cathode 006aaa764 1 2
SOT23
