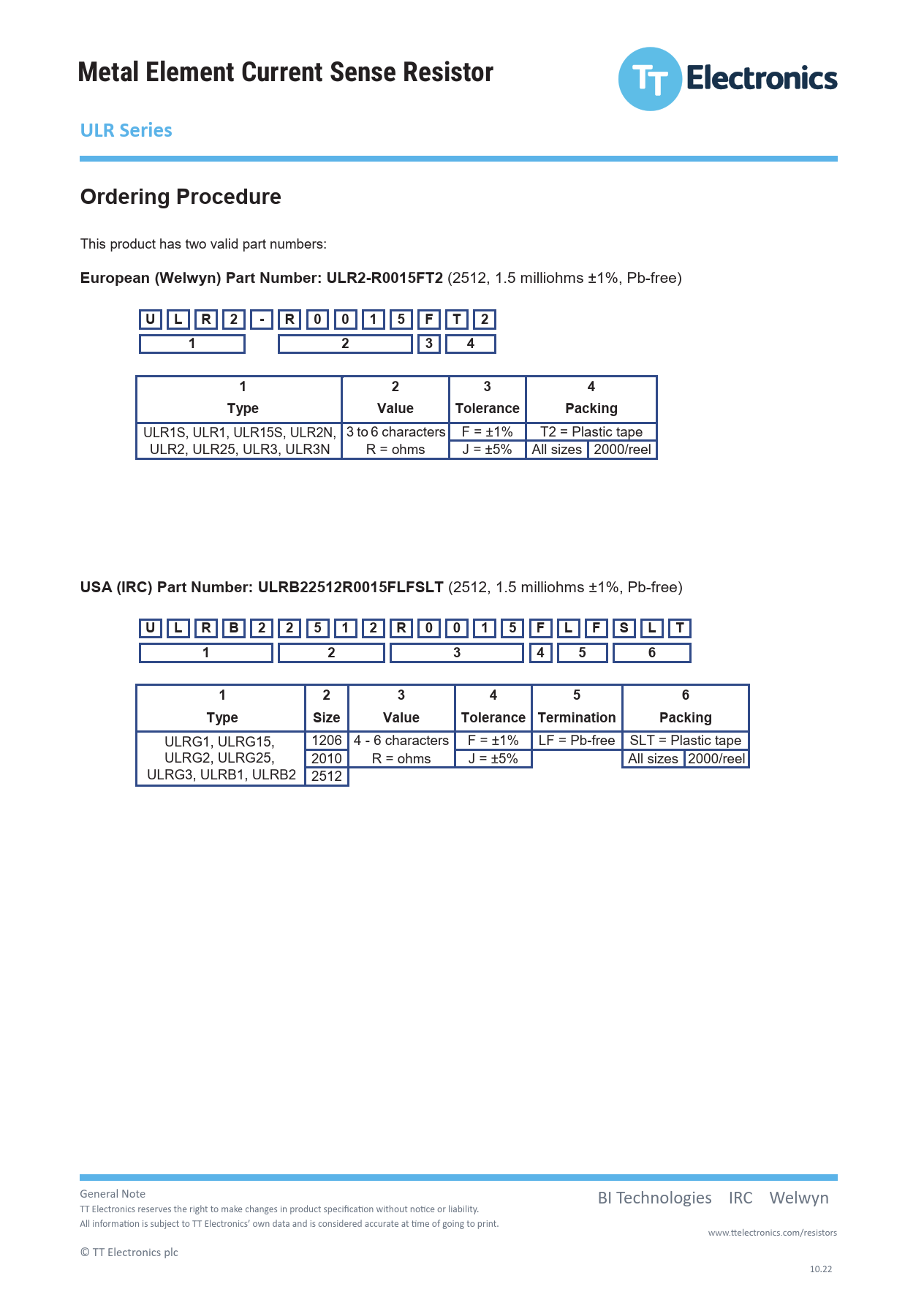

This product has two valid part numbers:
European (Welwyn) Part Number: ULR2-R0015FT2
(2512, 1.5 mil iohms ±1%, Pb-free)
U L R 2 - R 0 0 1 5 F T 2 1 2 3 4 1 2 3 4 Type Value Tolerance Packing
ULR1S, ULR1, ULR15S, ULR2N, 3 to 6 characters F = ±1% T2 = Plastic tape ULR2, ULR25, ULR3, ULR3N R = ohms J = ±5% Al sizes 2000/reel
USA (IRC) Part Number: ULRB22512R0015FLFSLT
(2512, 1.5 mil iohms ±1%, Pb-free)
U L R B 2 2 5 1 2 R 0 0 1 5 F L F S L T 1 2 3 4 5 6 1 2 3 4 5 6 Type Size Value Tolerance Termination Packing
ULRG1, ULRG15, 1206 4 - 6 characters F = ±1% LF = Pb-free SLT = Plastic tape ULRG2, ULRG25, 2010 R = ohms J = ±5% Al sizes 2000/reel ULRG3, ULRB1, ULRB2 2512
