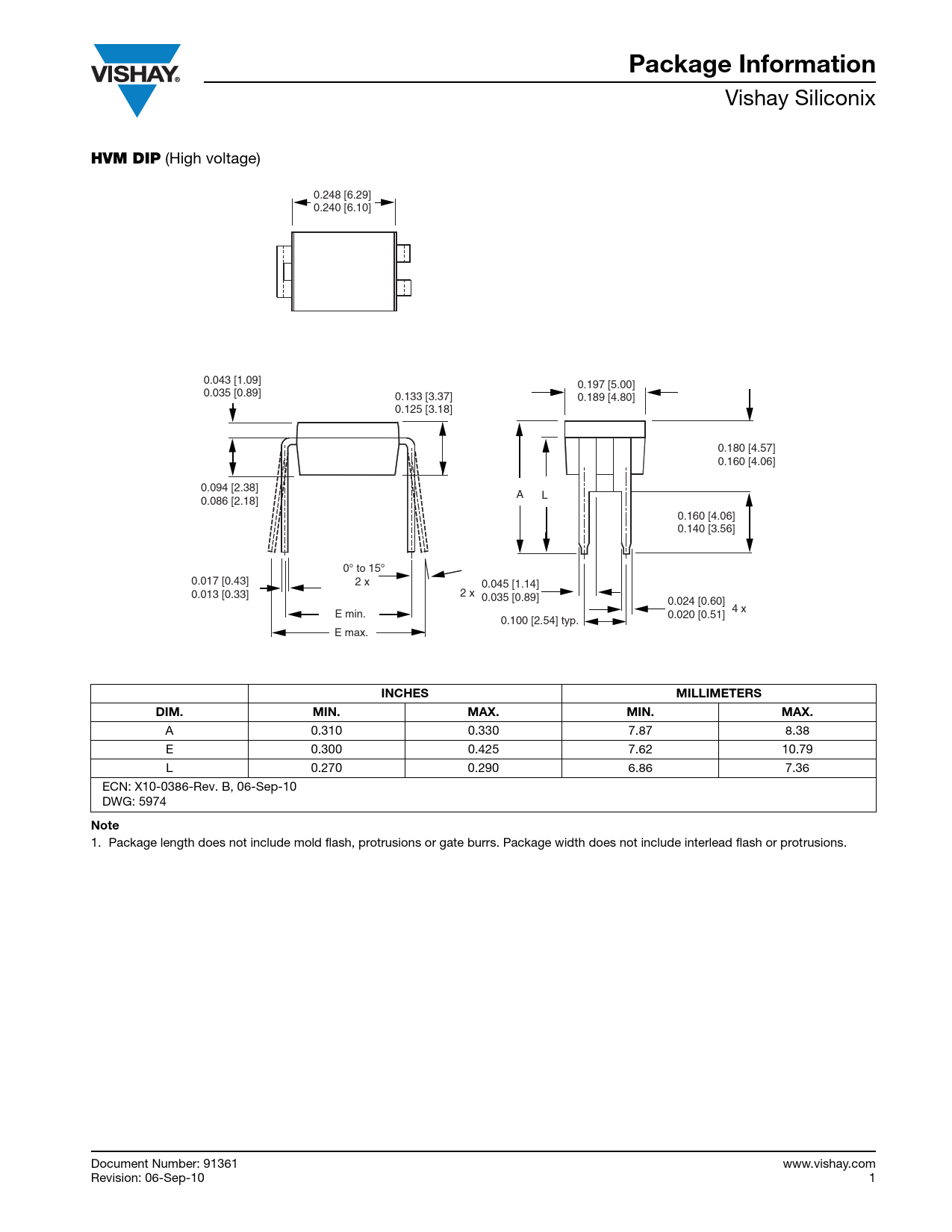

Package Information
Vishay Siliconix
HVM DIP
(High voltage) 0.248 [6.29] 0.240 [6.10] 0.043 [1.09] 0.197 [5.00] 0.035 [0.89] 0.133 [3.37] 0.189 [4.80] 0.125 [3.18] 0.180 [4.57] 0.160 [4.06] 0.094 [2.38] A L 0.086 [2.18] 0.160 [4.06] 0.140 [3.56] 0° to 15° 0.017 [0.43] 2 x 0.045 [1.14] 0.013 [0.33] 2 x 0.035 [0.89] 0.024 [0.60] 4 x E min. 0.020 [0.51] 0.100 [2.54] typ. E max.
INCHES MILLIMETERS DIM. MIN. MAX. MIN. MAX.
A 0.310 0.330 7.87 8.38 E 0.300 0.425 7.62 10.79 L 0.270 0.290 6.86 7.36 ECN: X10-0386-Rev. B, 06-Sep-10 DWG: 5974
Note
1. Package length does not include mold flash, protrusions or gate burrs. Package width does not include interlead flash or protrusions. Document Number: 91361 www.vishay.com Revision: 06-Sep-10 1
