Current Transformer TI 300/0,3 300 A / 0,3 A. Absolute Maximum Ratings. Symbol. Term. Values. TI 300 / 0,3
Model Line for this Datasheet
- SKPT 14a3 SKPT 14b2,5 SKPT 14c2,5 SKPT 14c3,5 SKPT 14g3 SKPT 14i3 SKPT 14i5 SKPT 14k2,5 SKPT 14k6 SKPT 21a3 SKPT 21a5 SKPT 21b3 SKPT 21b3/650 SKPT 21b4 SKPT 21b4/650 SKPT 21b5 SKPT 21b5/650 SKPT 21c3 SKPT 21d3 SKPT 21e3 SKPT 22e3/650 SKPT 25a3 SKPT 25a3/s SKPT 25a4 SKPT 25a4/s SKPT 25a5 SKPT 25a5/s SKPT 25b10 SKPT 25b10/s SKPT 25b20/s SKPT 25b3 SKPT 25b3/s SKPT 25b4 SKPT 25b4/hs SKPT 25b4/s SKPT 25b5 SKPT 25b5/s SKPT 25b6/N SKPT 25b8 SKPT 25b8/s SKPT 25e3 SKPT 25e3/s SKPT 25g4 SKPT 25h3 SKPT 25h3/s SKPT 25j2 SKPT 25k3/650 SKPT 25m3 SKPT 25m5 SKPT 25n3 SKPT 25o5 SKPT 25p3/650 SKPT 26a3 SKPT 26b10 SKPT 26b3 SKPT 26e3 SKPT 27a10 SKPT 27a3 SKPT 27a5 SKPT 27b10 SKPT 27b10/650 SKPT 27b10ES SKPT 27b3 SKPT 27b3/650 SKPT 27b4/1300 SKPT 27b5 SKPT 27b5/650 SKPT 27c10 SKPT 27d3,5 SKPT 27e3,5 SKPT 909 SKPT HVb3
Text Version of Document
Current Transformer TI 300/0,3 300 A / 0,3 A Absolute Maximum Ratings Symbol Term Values
I1 Max. primary current 300 A I2 Max. secondary current 0,3 A Precision class sec. current 0,5 % ns Transformer current ratio 1000 : 1 np Pout Max. Power output (50/60 Hz) 2 VA fop Operating frequency 50 / 60 Hz R2 Load resistance 1) > 22,2 Ω
TI 300 / 0,3

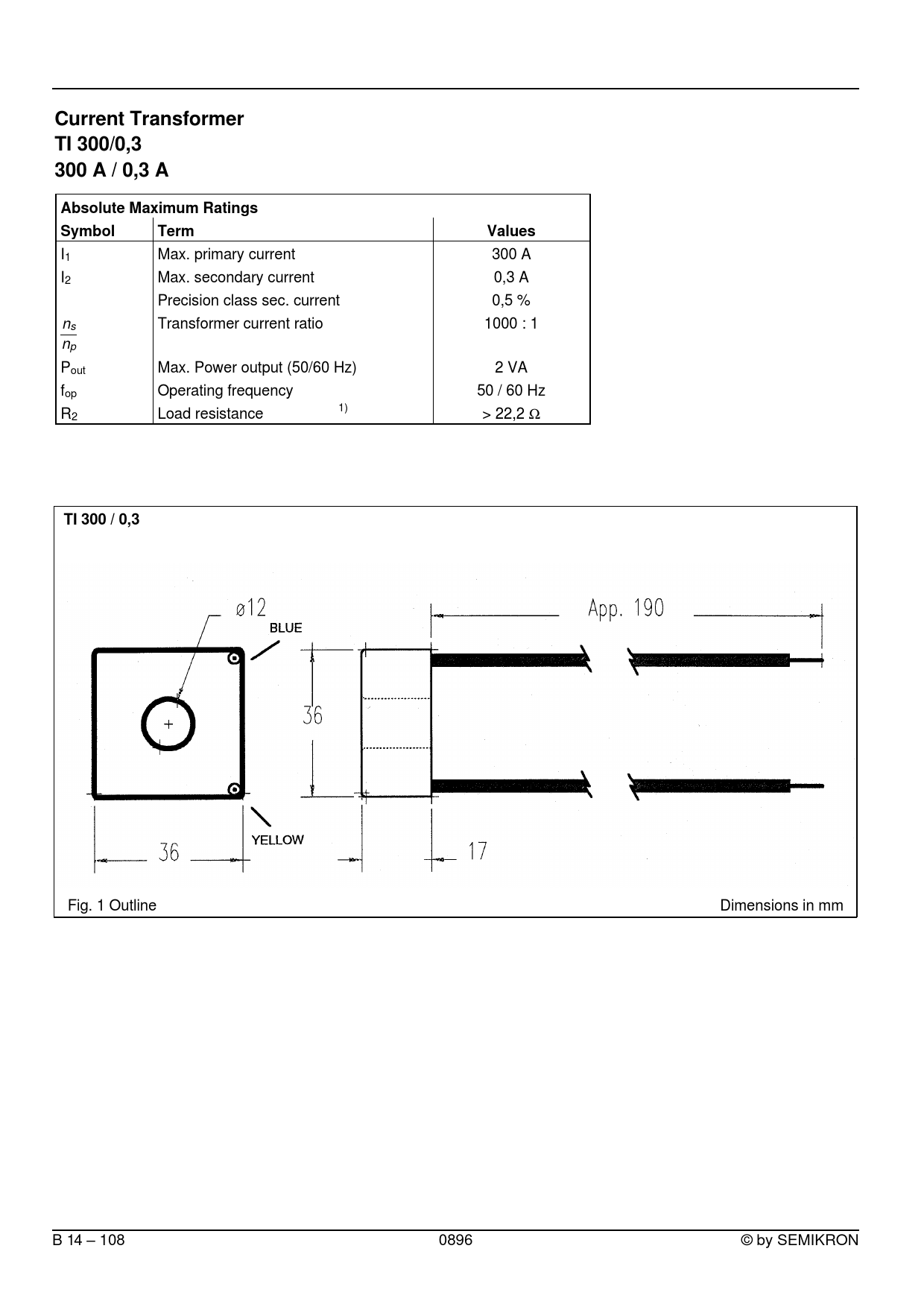

Fig. 1 Outline Dimensions in mm B 14 – 108 0898 0896 © by SEMIKRON Document Outline Pulse Transformer
I1 Max. primary current 300 A I2 Max. secondary current 0,3 A Precision class sec. current 0,5 % ns Transformer current ratio 1000 : 1 np Pout Max. Power output (50/60 Hz) 2 VA fop Operating frequency 50 / 60 Hz R2 Load resistance 1) > 22,2 Ω
TI 300 / 0,3
Fig. 1 Outline Dimensions in mm B 14 – 108 0898 0896 © by SEMIKRON Document Outline Pulse Transformer
