ADuM4165/ADuM4166. ABSOLUTE MAXIMUM RATINGS. ELECTROSTATIC DISCHARGE (ESD) RATINGS
Model Line for this Datasheet
Text Version of Document
link to page 10 link to page 10 Data Sheet

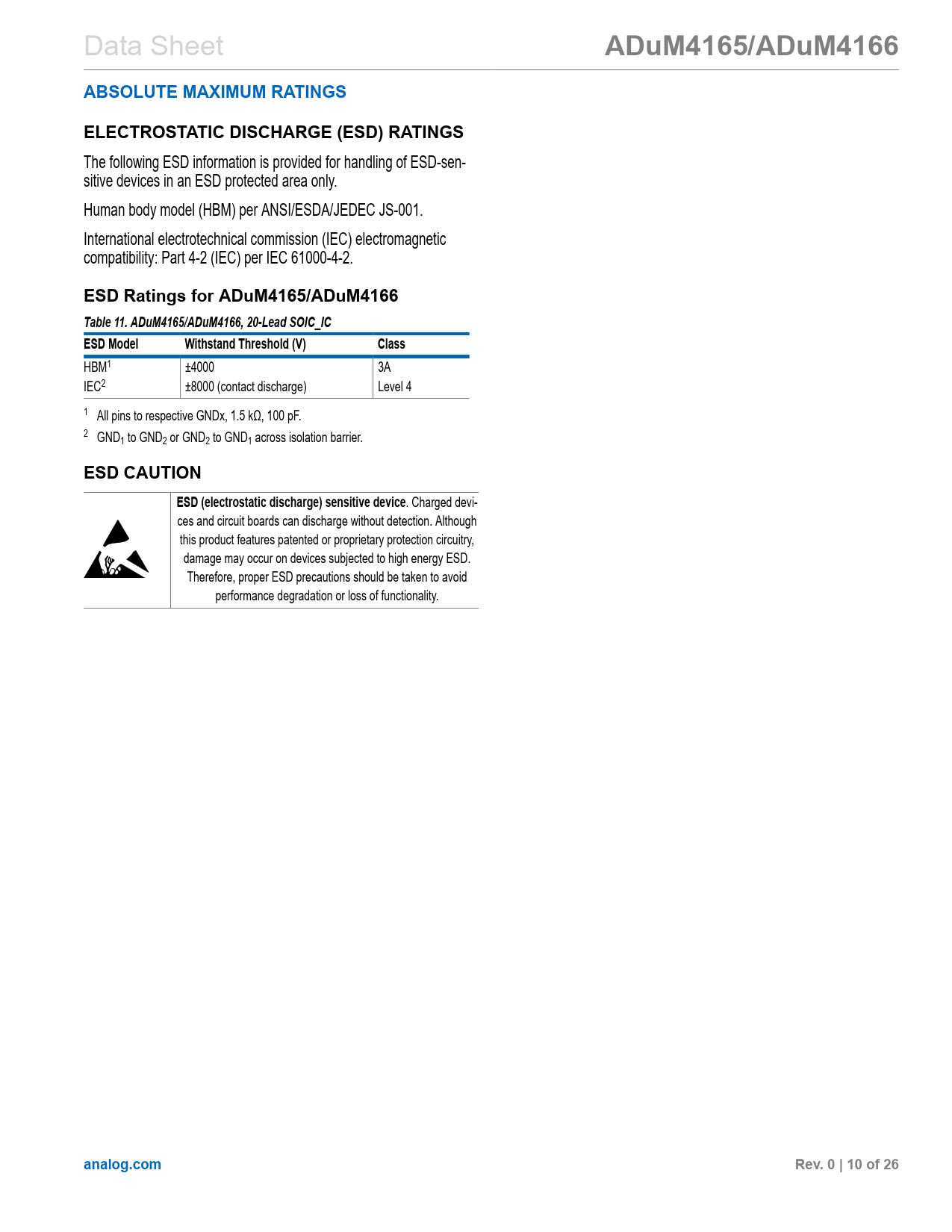

ADuM4165/ADuM4166 ABSOLUTE MAXIMUM RATINGS ELECTROSTATIC DISCHARGE (ESD) RATINGS
The following ESD information is provided for handling of ESD-sen- sitive devices in an ESD protected area only. Human body model (HBM) per ANSI/ESDA/JEDEC JS-001. International electrotechnical commission (IEC) electromagnetic compatibility: Part 4-2 (IEC) per IEC 61000-4-2.
ESD Ratings for ADuM4165/ADuM4166 Table 11. ADuM4165/ADuM4166, 20-Lead SOIC_IC ESD Model Withstand Threshold (V) Class
HBM1 ±4000 3A IEC2 ±8000 (contact discharge) Level 4 1 All pins to respective GNDx, 1.5 kΩ, 100 pF. 2 GND1 to GND2 or GND2 to GND1 across isolation barrier.
ESD CAUTION ESD (electrostatic discharge) sensitive device
. Charged devi- ces and circuit boards can discharge without detection. Although this product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.
analog.com Rev. 0 | 10 of 26
