Outline Dimensions. TO-220AC 2L. DIMENSIONS. Conforms to JEDEC® outline TO-220AC. SYMBOL. MILLIMETERS. INCHES. NOTES. MIN. MAX. Notes
Model Line for this Datasheet
Text Version of Document
Outline Dimensions
www.vishay.com Vishay Semiconductors

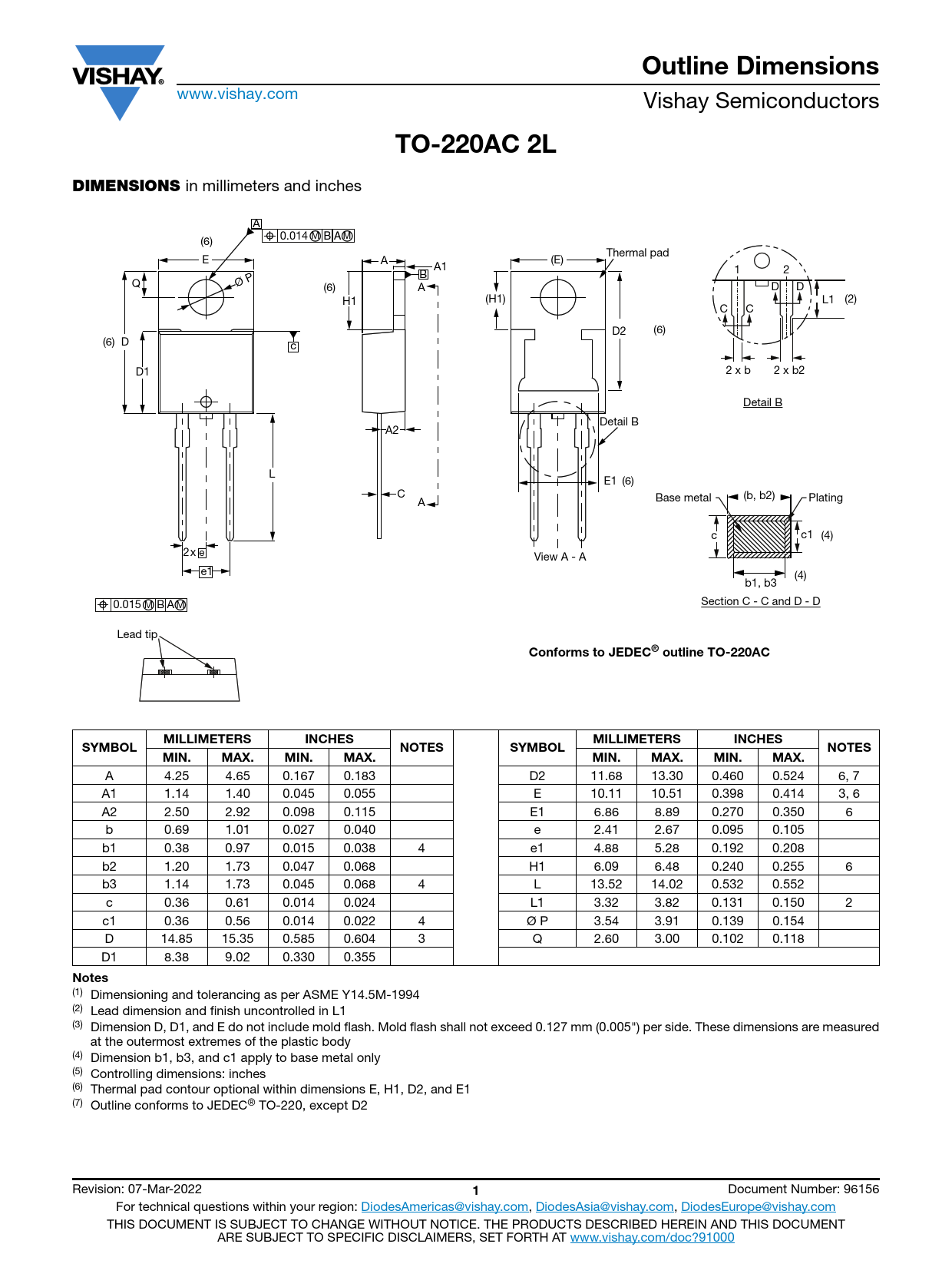

TO-220AC 2L DIMENSIONS
in millimeters and inches A 0.014 M B A M (6) Thermal pad E A (E) A1 1 2 B Q Ø P (6) A D D H1 (H1) L1 (2) C C D2 (6) (6) D c D1 2 x b 2 x b2 Detail B Detail B A2 L E1 (6) C Base metal (b, b2) Plating A c c1 (4) 2 x e View A - A e1 (4) b1, b3 0.015 M B A M Section C - C and D - D Lead tip
Conforms to JEDEC® outline TO-220AC SYMBOL MILLIMETERS INCHES NOTES SYMBOL MILLIMETERS INCHES NOTES MIN. MAX. MIN. MAX. MIN. MAX. MIN. MAX.
A 4.25 4.65 0.167 0.183 D2 11.68 13.30 0.460 0.524 6, 7 A1 1.14 1.40 0.045 0.055 E 10.11 10.51 0.398 0.414 3, 6 A2 2.50 2.92 0.098 0.115 E1 6.86 8.89 0.270 0.350 6 b 0.69 1.01 0.027 0.040 e 2.41 2.67 0.095 0.105 b1 0.38 0.97 0.015 0.038 4 e1 4.88 5.28 0.192 0.208 b2 1.20 1.73 0.047 0.068 H1 6.09 6.48 0.240 0.255 6 b3 1.14 1.73 0.045 0.068 4 L 13.52 14.02 0.532 0.552 c 0.36 0.61 0.014 0.024 L1 3.32 3.82 0.131 0.150 2 c1 0.36 0.56 0.014 0.022 4 Ø P 3.54 3.91 0.139 0.154 D 14.85 15.35 0.585 0.604 3 Q 2.60 3.00 0.102 0.118 D1 8.38 9.02 0.330 0.355
Notes
(1) Dimensioning and tolerancing as per ASME Y14.5M-1994 (2) Lead dimension and finish uncontrolled in L1 (3) Dimension D, D1, and E do not include mold flash. Mold flash shall not exceed 0.127 mm (0.005") per side. These dimensions are measured at the outermost extremes of the plastic body (4) Dimension b1, b3, and c1 apply to base metal only (5) Controlling dimensions: inches (6) Thermal pad contour optional within dimensions E, H1, D2, and E1 (7) Outline conforms to JEDEC® TO-220, except D2 Revision: 07-Mar-2022
