Datasheet L6204 (STMicroelectronics) - 2
| Manufacturer | STMicroelectronics |
| Description | High bandwidth 6 MHz, rail-to-rail, 5 V cost-effective Op Amp |
| Pages / Page | 17 / 2 — TSL6201, TSL6202, TSL6204. Pin description. 1.1. TSL6201 single … |
| Document Language | English |
TSL6201, TSL6202, TSL6204. Pin description. 1.1. TSL6201 single operational amplifier
Model Line for this Datasheet
Text Version of Document

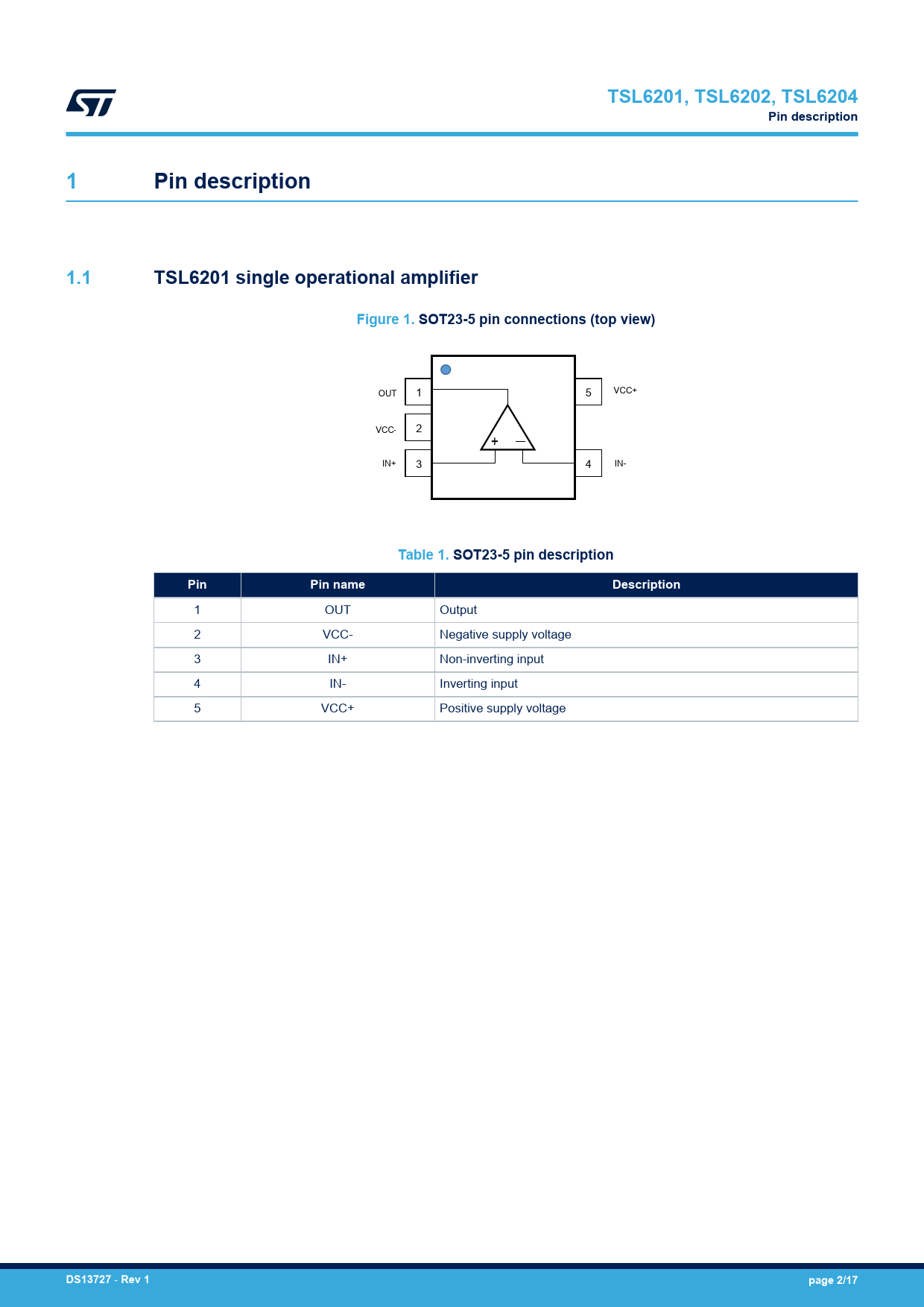

TSL6201, TSL6202, TSL6204 Pin description 1 Pin description 1.1 TSL6201 single operational amplifier Figure 1. SOT23-5 pin connections (top view)
OUT VCC+ 1 5 VCC- 2 + IN+ 3 4 IN-
Table 1. SOT23-5 pin description Pin Pin name Description
1 OUT Output 2 VCC- Negative supply voltage 3 IN+ Non-inverting input 4 IN- Inverting input 5 VCC+ Positive supply voltage
DS13727
-
Rev 1 page 2/17
