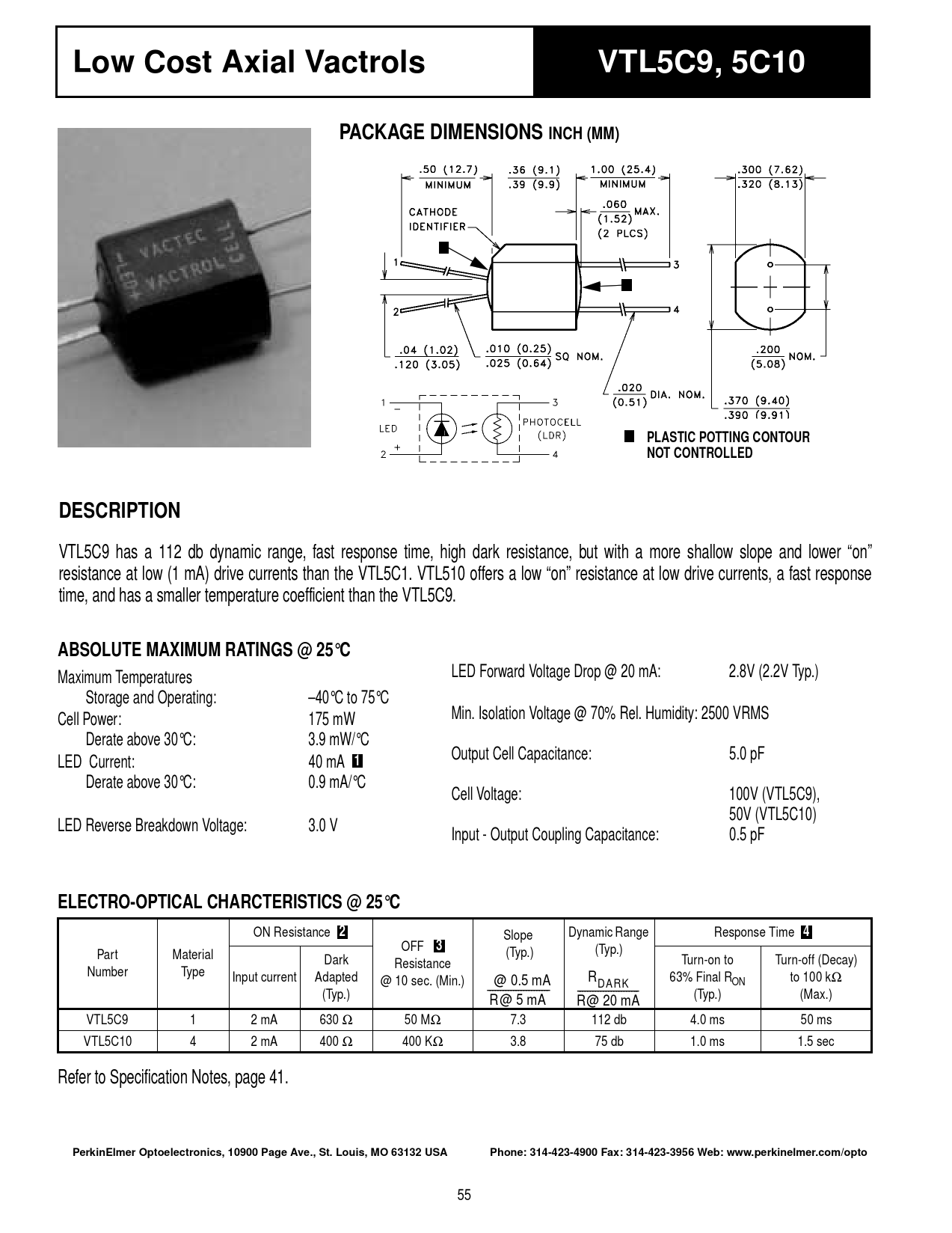

Low Cost Axial Vactrols. VTL5C9, 5C10. PACKAGE DIMENSIONS INCH (MM). PLASTIC POTTING CONTOUR NOT CONTROLLED. DESCRIPTION
Model Line for this Datasheet
Text Version of Document
Low Cost Axial Vactrols VTL5C9, 5C10 PACKAGE DIMENSIONS INCH (MM) PLASTIC POTTING CONTOUR NOT CONTROLLED DESCRIPTION
VTL5C9 has a 112 db dynamic range, fast response time, high dark resistance, but with a more shallow slope and lower “on” resistance at low (1 mA) drive currents than the VTL5C1. VTL510 offers a low “on” resistance at low drive currents, a fast response time, and has a smaller temperature coefficient than the VTL5C9.
ABSOLUTE MAXIMUM RATINGS @ 25°C
Maximum Temperatures LED Forward Voltage Drop @ 20 mA: 2.8V (2.2V Typ.) Storage and Operating: –40°C to 75°C Cel Power: 175 mW Min. Isolation Voltage @ 70% Rel. Humidity: 2500 VRMS Derate above 30°C: 3.9 mW/°C Output Cel Capacitance: 5.0 pF LED Current: 40 mA
1
Derate above 30°C: 0.9 mA/°C Cel Voltage: 100V (VTL5C9), 50V (VTL5C10) LED Reverse Breakdown Voltage: 3.0 V Input - Output Coupling Capacitance: 0.5 pF
ELECTRO-OPTICAL CHARCTERISTICS @ 25°C
ON Resistance
2
Slope Dynamic Range Response Time
4
OFF
3
Part Material (Typ.) (Typ.) Dark Resistance Turn-on to Turn-off (Decay) Number Type Input current Adapted @ 10 sec. (Min.) R 63% Final R @ 0.5 mA DARK ON to 100 kΩ (Typ.) ------------ ------------ (Typ.) (Max.) R@ 5 mA R@ 20 mA VTL5C9 1 2 mA 630 Ω 50 MΩ 7.3 112 db 4.0 ms 50 ms VTL5C10 4 2 mA 400 Ω 400 KΩ 3.8 75 db 1.0 ms 1.5 sec Refer to Specification Notes, page 41.
