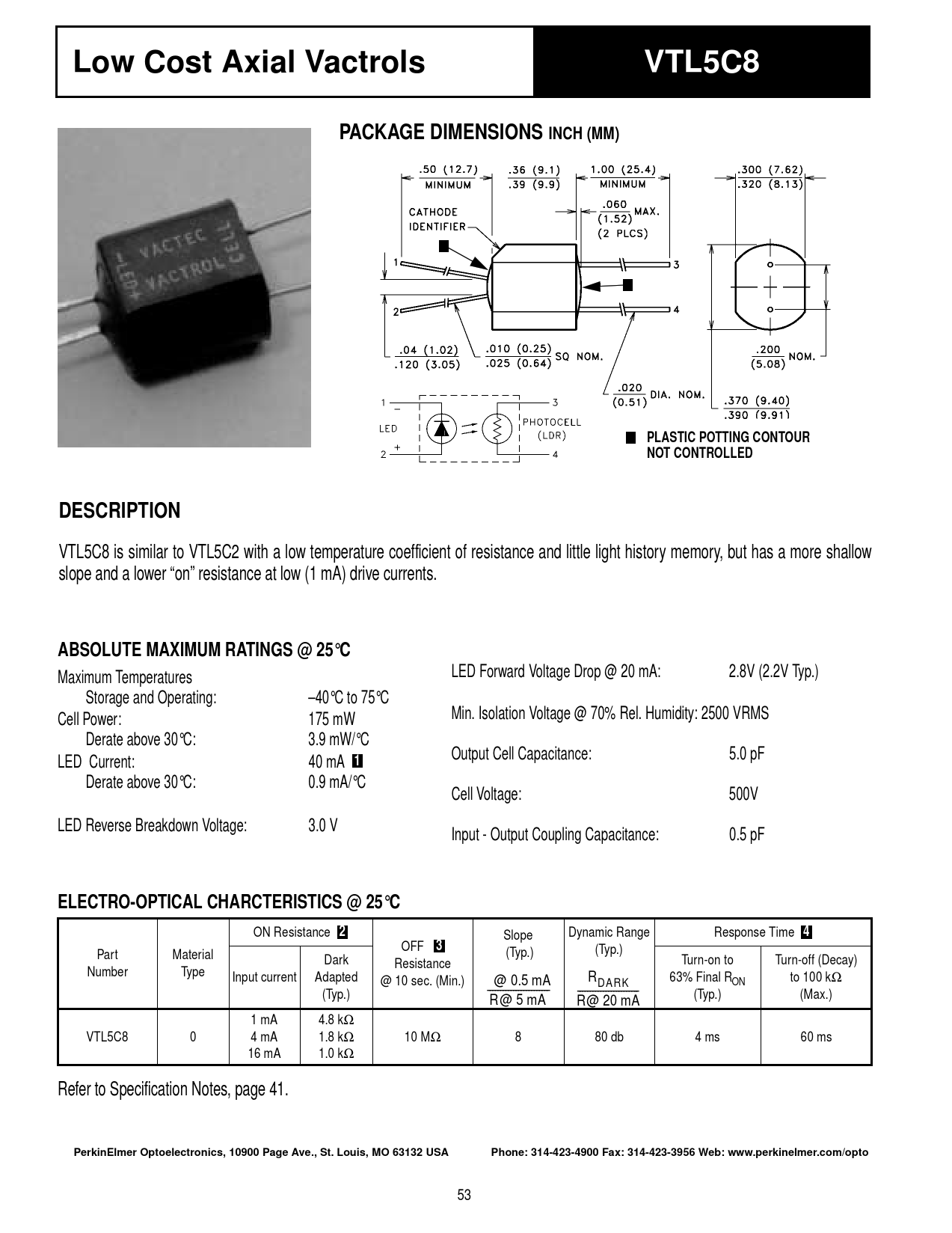

Low Cost Axial Vactrols. VTL5C8. PACKAGE DIMENSIONS INCH (MM). PLASTIC POTTING CONTOUR NOT CONTROLLED. DESCRIPTION
Model Line for this Datasheet
Text Version of Document
Low Cost Axial Vactrols VTL5C8 PACKAGE DIMENSIONS INCH (MM) PLASTIC POTTING CONTOUR NOT CONTROLLED DESCRIPTION
VTL5C8 is similar to VTL5C2 with a low temperature coefficient of resistance and little light history memory, but has a more shallow slope and a lower “on” resistance at low (1 mA) drive currents.
ABSOLUTE MAXIMUM RATINGS @ 25°C
Maximum Temperatures LED Forward Voltage Drop @ 20 mA: 2.8V (2.2V Typ.) Storage and Operating: –40°C to 75°C Cel Power: 175 mW Min. Isolation Voltage @ 70% Rel. Humidity: 2500 VRMS Derate above 30°C: 3.9 mW/°C Output Cel Capacitance: 5.0 pF LED Current: 40 mA
1
Derate above 30°C: 0.9 mA/°C Cel Voltage: 500V LED Reverse Breakdown Voltage: 3.0 V Input - Output Coupling Capacitance: 0.5 pF
ELECTRO-OPTICAL CHARCTERISTICS @ 25°C
ON Resistance
2
Slope Dynamic Range Response Time
4
OFF
3
Part Material (Typ.) (Typ.) Dark Resistance Turn-on to Turn-off (Decay) Number Type Input current Adapted @ 10 sec. (Min.) R 63% Final R @ 0.5 mA DARK ON to 100 kΩ (Typ.) ------------ ------------ (Typ.) (Max.) R@ 5 mA R@ 20 mA 1 mA 4.8 kΩ VTL5C8 0 4 mA 1.8 kΩ 10 MΩ 8 80 db 4 ms 60 ms 16 mA 1.0 kΩ Refer to Specification Notes, page 41.
