Datasheet IRFP9140 (Vishay) - 5
| Manufacturer | Vishay |
| Description | Power MOSFET |
| Pages / Page | 11 / 5 — IRFP9140. Fig. 10 - Switching Time Test Circuit. Fig. 9 - Maximum Drain … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |

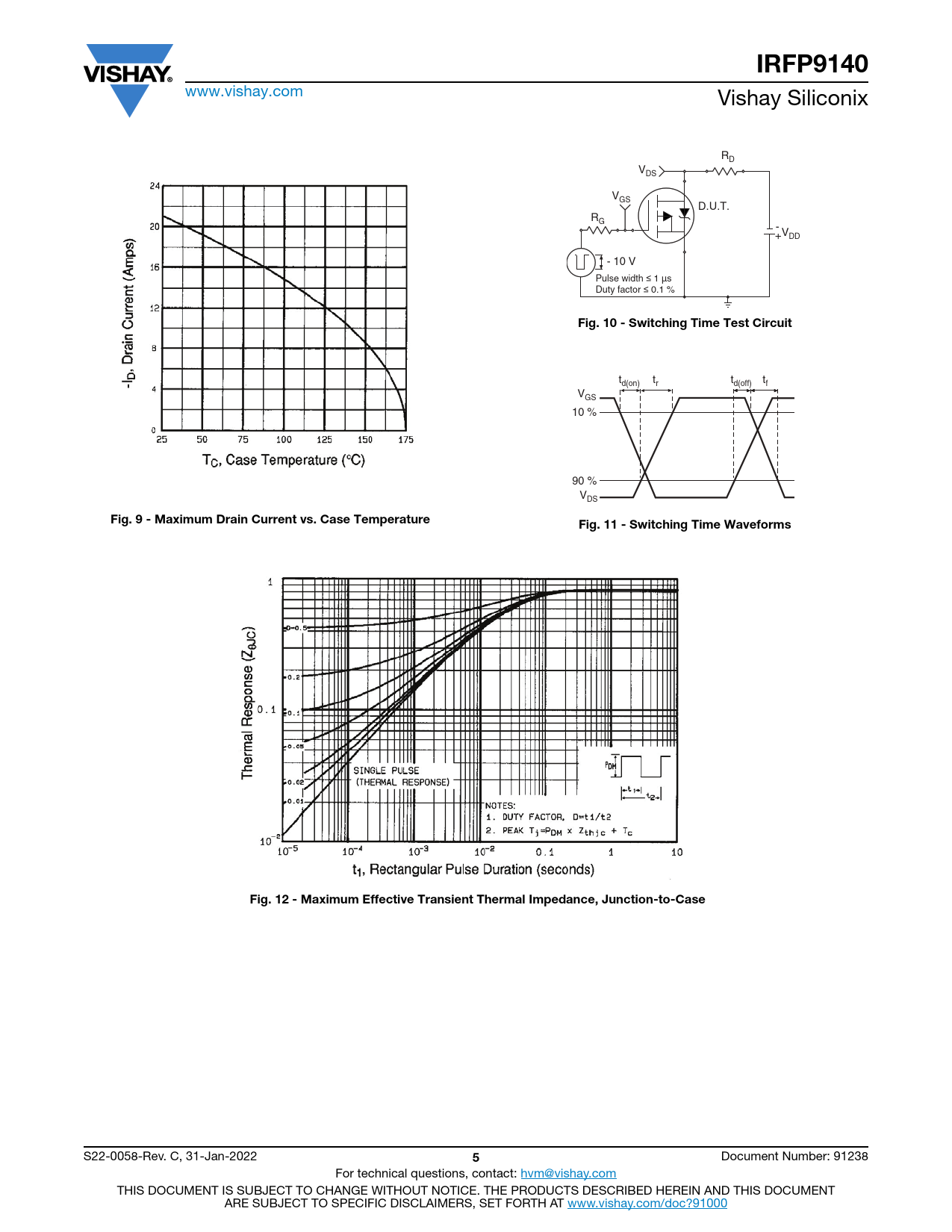

IRFP9140. Fig. 10 - Switching Time Test Circuit. Fig. 9 - Maximum Drain Current vs. Case Temperature
Model Line for this Datasheet
Text Version of Document
IRFP9140
www.vishay.com Vishay Siliconix RD VDS VGS D.U.T. RG -+VDD - 10 V Pulse width ≤ 1 µs Duty factor ≤ 0.1 %
Fig. 10 - Switching Time Test Circuit
t t t t d(on) r d(off) f VGS 10 % 90 % VDS
Fig. 9 - Maximum Drain Current vs. Case Temperature Fig. 11 - Switching Time Waveforms Fig. 12 - Maximum Effective Transient Thermal Impedance, Junction-to-Case
S22-0058-Rev. C, 31-Jan-2022
5
