AN826 Vishay Siliconix

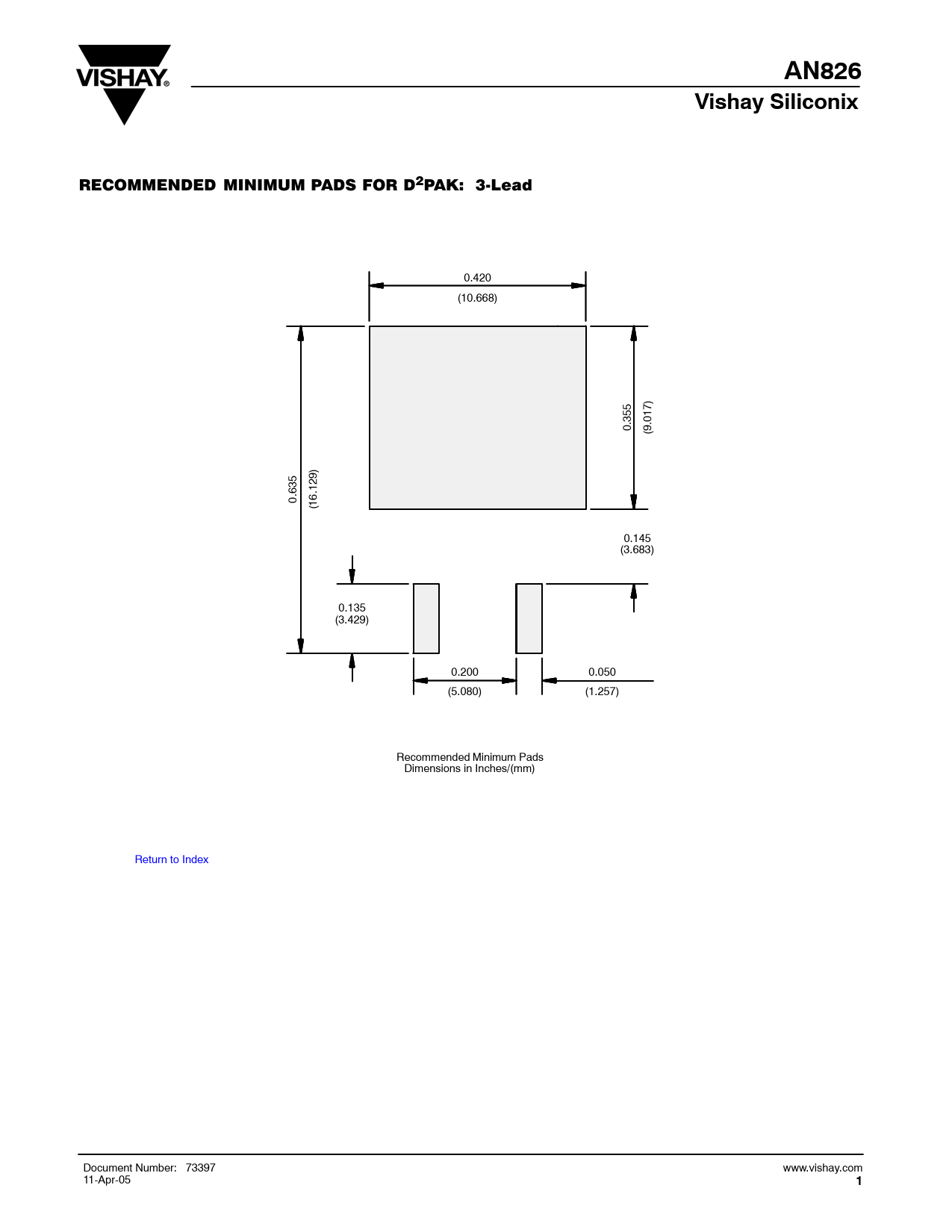

RECOMMENDED MINIMUM PADS FOR D2PAK: 3-Lead 0.420 (10.668) 0.355 (9.017) 0.635 (16.129) 0.145 (3.683) 0.135 (3.429) 0.200 0.050 (5.080) (1.257) Recommended Minimum Pads Dimensions in Inches/(mm) Return to Index Document Number: 73397 www.vishay.com 11-Apr-05
