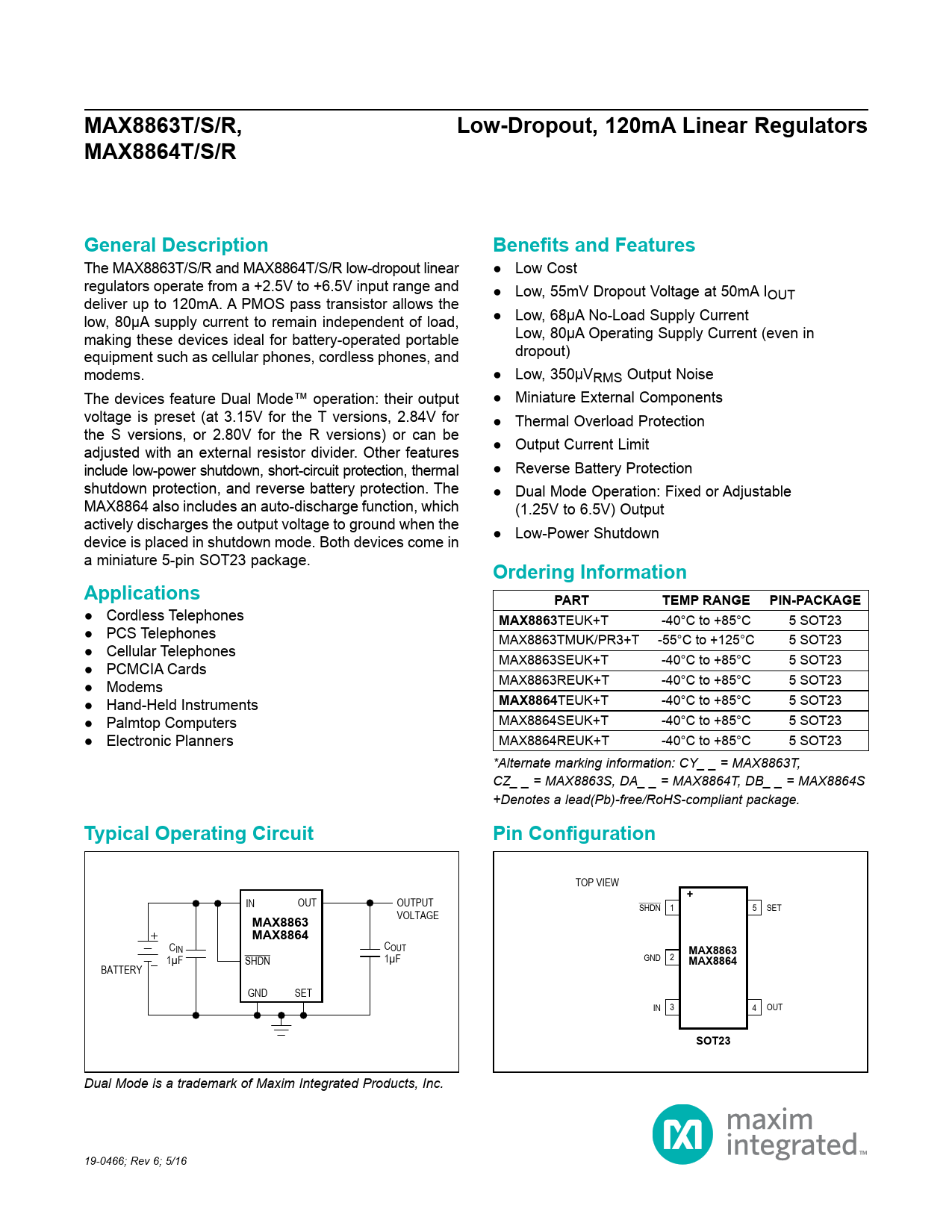

MAX8863T/S/R,. Low-Dropout, 120mA Linear Regulators. MAX8864T/S/R. General Description. Benefits and Features
Model Line for this Datasheet
Text Version of Document
MAX8863T/S/R, Low-Dropout, 120mA Linear Regulators MAX8864T/S/R General Description Benefits and Features
The MAX8863T/S/R and MAX8864T/S/R low-dropout linear ● Low Cost regulators operate from a +2.5V to +6.5V input range and ● Low, 55mV Dropout Voltage at 50mA I deliver up to 120mA. A PMOS pass transistor allows the OUT low, 80μA supply current to remain independent of load, ● Low, 68μA No-Load Supply Current making these devices ideal for battery-operated portable Low, 80μA Operating Supply Current (even in equipment such as cellular phones, cordless phones, and dropout) modems. ● Low, 350μVRMS Output Noise The devices feature Dual Mode™ operation: their output ● Miniature External Components voltage is preset (at 3.15V for the T versions, 2.84V for ● Thermal Overload Protection the S versions, or 2.80V for the R versions) or can be adjusted with an external resistor divider. Other features ● Output Current Limit include low-power shutdown, short-circuit protection, thermal ● Reverse Battery Protection shutdown protection, and reverse battery protection. The ● Dual Mode Operation: Fixed or Adjustable MAX8864 also includes an auto-discharge function, which (1.25V to 6.5V) Output actively discharges the output voltage to ground when the device is placed in shutdown mode. Both devices come in ● Low-Power Shutdown a miniature 5-pin SOT23 package.
Ordering Information Applications PART TEMP RANGE PIN-PACKAGE
● Cordless Telephones
MAX8863
TEUK+T -40°C to +85°C 5 SOT23 ● PCS Telephones MAX8863TMUK/PR3+T -55°C to +125°C 5 SOT23 ● Cellular Telephones ● PCMCIA Cards MAX8863SEUK+T -40°C to +85°C 5 SOT23 ● Modems MAX8863REUK+T -40°C to +85°C 5 SOT23 ● Hand-Held Instruments
MAX8864
TEUK+T -40°C to +85°C 5 SOT23 ● Palmtop Computers MAX8864SEUK+T -40°C to +85°C 5 SOT23 ● Electronic Planners MAX8864REUK+T -40°C to +85°C 5 SOT23 *Alternate marking information: CY_ _ = MAX8863T, CZ_ _ = MAX8863S, DA_ _ = MAX8864T, DB_ _ = MAX8864S +Denotes a lead(Pb)-free/RoHS-compliant package.
Typical Operating Circuit Pin Configuration
TOP VIEW
+
IN OUT OUTPUT SHDN 1 5 SET
MAX8863
VOLTAGE
MAX8864
C C IN OUT
MAX8863
1µF SHDN 1µF GND 2
MAX8864
BATTERY GND SET IN 3 4 OUT
SOT23
Dual Mode is a trademark of Maxim Integrated Products, Inc. 19-0466; Rev 6; 5/16
