Datasheet BCR401R (Infineon) - 3
| Manufacturer | Infineon |
| Description | LED Driver |
| Pages / Page | 8 / 3 — BCR401R. Electrical Characteristics. Parameter. Symbol. Values. Unit. … |
| File Format / Size | PDF / 92 Kb |
| Document Language | English |
BCR401R. Electrical Characteristics. Parameter. Symbol. Values. Unit. min. typ. max. Characteristics
Model Line for this Datasheet
Text Version of Document

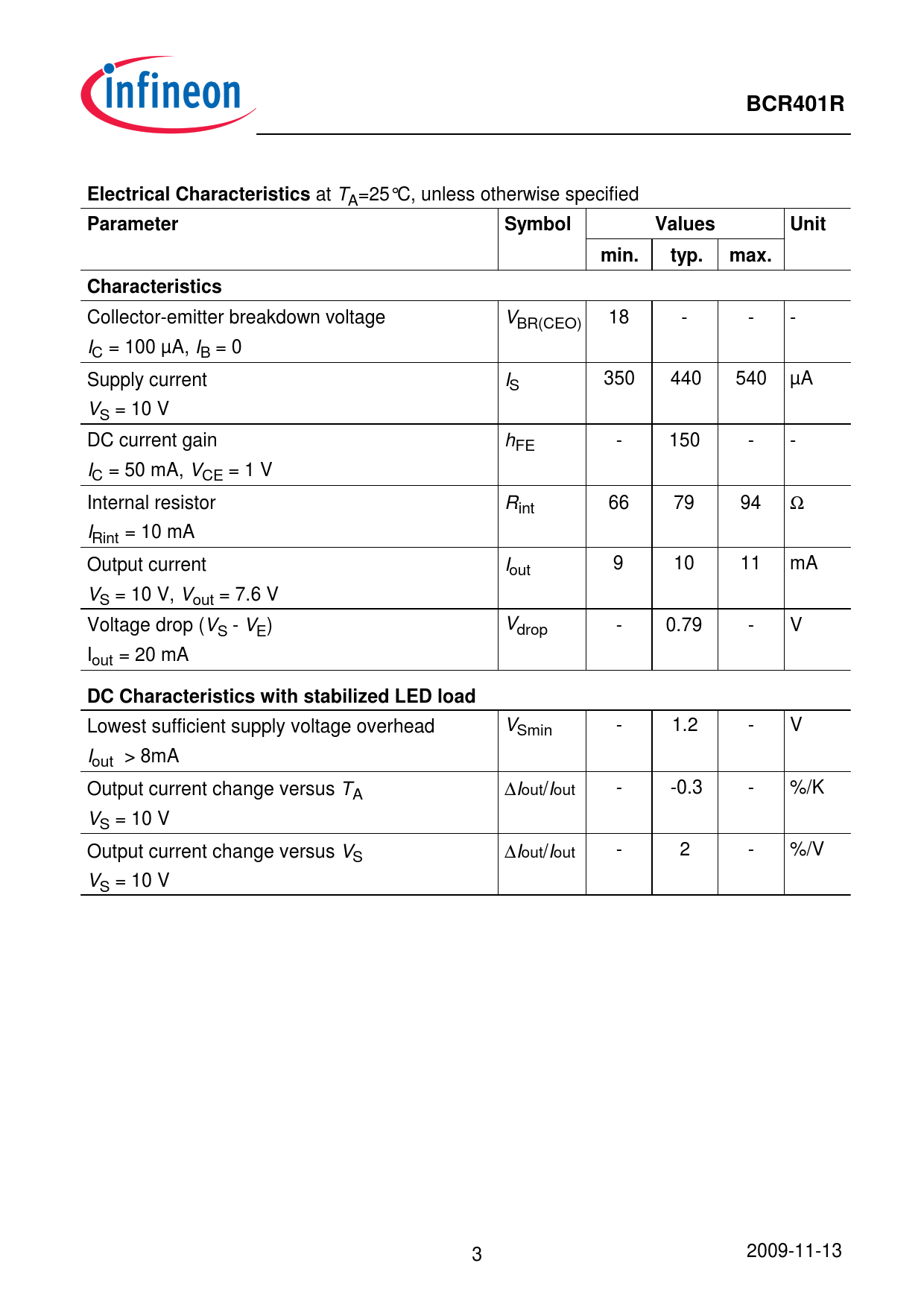

BCR401R Electrical Characteristics
at TA=25°C, unless otherwise specified
Parameter Symbol Values Unit min. typ. max. Characteristics
Collector-emitter breakdown voltage VBR(CEO) 18 - - - IC = 100 µA, IB = 0 Supply current IS 350 440 540 µA VS = 10 V DC current gain hFE - 150 - - IC = 50 mA, VCE = 1 V Internal resistor Rint 66 79 94 Ω IRint = 10 mA Output current Iout 9 10 11 mA VS = 10 V, Vout = 7.6 V Voltage drop (VS - VE) Vdrop - 0.79 - V Iout = 20 mA
DC Characteristics with stabilized LED load
Lowest sufficient supply voltage overhead VSmin - 1.2 - V Iout > 8mA Output current change versus T ∆ A Iout/Iout - -0.3 - %/K VS = 10 V Output current change versus V ∆ S Iout/Iout - 2 - %/V VS = 10 V 2009-11-13 3
at TA=25°C, unless otherwise specified
Parameter Symbol Values Unit min. typ. max. Characteristics
Collector-emitter breakdown voltage VBR(CEO) 18 - - - IC = 100 µA, IB = 0 Supply current IS 350 440 540 µA VS = 10 V DC current gain hFE - 150 - - IC = 50 mA, VCE = 1 V Internal resistor Rint 66 79 94 Ω IRint = 10 mA Output current Iout 9 10 11 mA VS = 10 V, Vout = 7.6 V Voltage drop (VS - VE) Vdrop - 0.79 - V Iout = 20 mA
DC Characteristics with stabilized LED load
Lowest sufficient supply voltage overhead VSmin - 1.2 - V Iout > 8mA Output current change versus T ∆ A Iout/Iout - -0.3 - %/K VS = 10 V Output current change versus V ∆ S Iout/Iout - 2 - %/V VS = 10 V 2009-11-13 3
