NXP. Semiconductors. Product. specification. Low-cost. stereo. filter. DAC. UDA1330ATS. handbook,. full. pagewidth. L3MODE. t. t. h(L3)A. su(L3)A

NXP Semiconductors Product specification Low-cost stereo filter DAC UDA1330ATS handbook, full pagewidth L3MODE t t h(L3)A su(L3)A

Model Line for this Datasheet

Text Version of Document

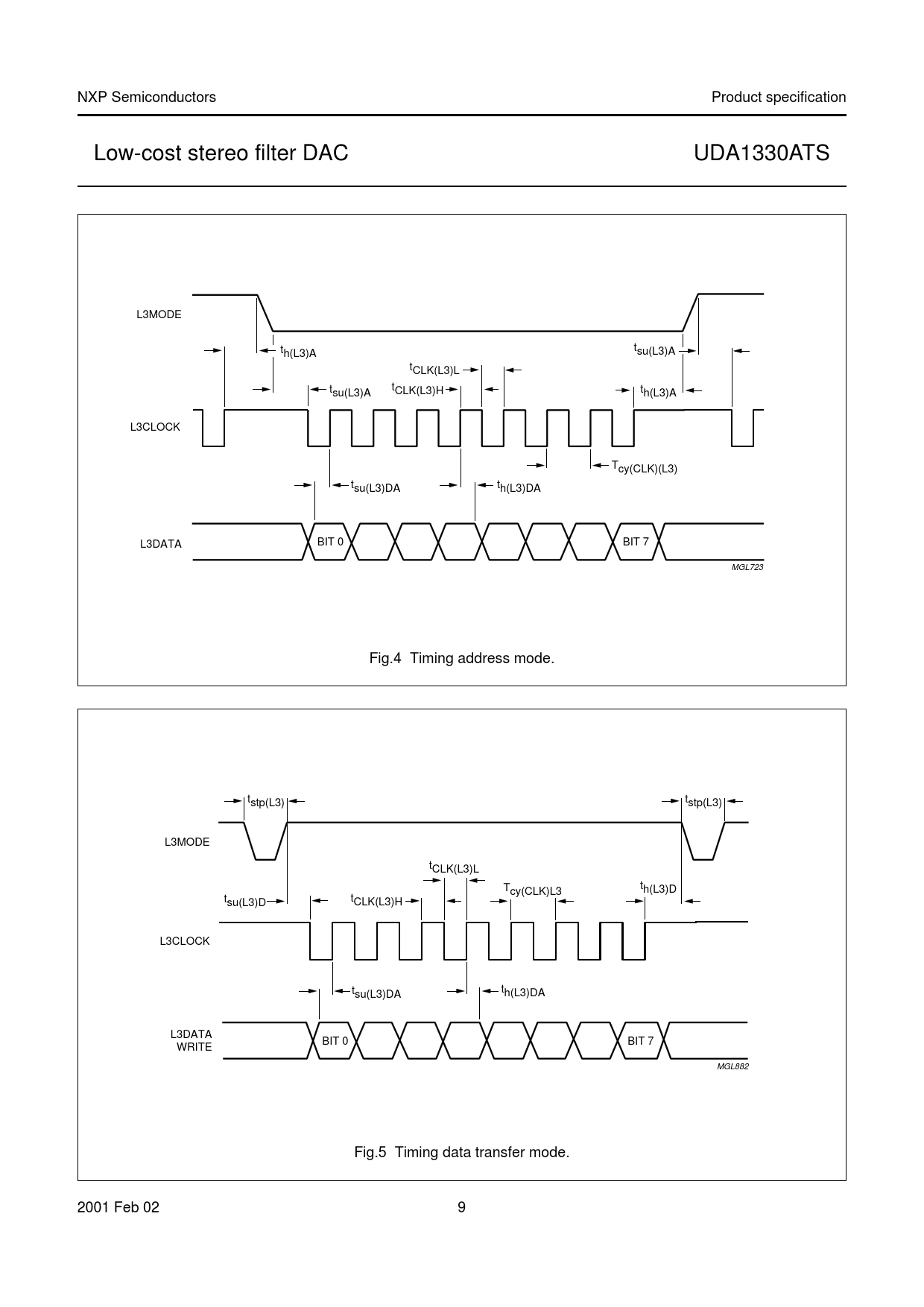

NXP Semiconductors Product specification Low-cost stereo filter DAC UDA1330ATS handbook, full pagewidth L3MODE t t h(L3)A su(L3)A tCLK(L3)L t t CLK(L3)H su(L3)A th(L3)A L3CLOCK Tcy(CLK)(L3) t t su(L3)DA h(L3)DA L3DATA BIT 0 BIT 7 MGL723 Fig.4 Timing address mode. tstp(L3) tstp(L3) handbook, full pagewidth L3MODE tCLK(L3)L t T h(L3)D cy(CLK)L3 tsu(L3)D tCLK(L3)H L3CLOCK tsu(L3)DA th(L3)DA L3DATA BIT 0 BIT 7 WRITE MGL882 Fig.5 Timing data transfer mode. 2001 Feb 02 9 Document Outline Features General Multiple format input interface DAC digital sound processing Advanced audio configuration Applications General description Ordering information Quick reference data Block diagram Pinning Functional description System clock Application modes Multiple format input interface Interpolation filter (DAC) Noise shaper Filter stream DAC Pin compatibility L3 interface Address mode Data transfer mode Registers Programming the features Limiting values Handling Thermal characteristics Quality specification DC characteristics AC characteristics Timing Application information Package outline Soldering Introduction to soldering surface mount packages Reflow soldering Wave soldering Manual soldering Suitability of surface mount IC packages for wave and reflow soldering methods Data sheet status Disclaimers
