Datasheet MC10EP16, MC100EP16 (ON Semiconductor) - 7
| Manufacturer | ON Semiconductor |
| Description | 3.3 V/5 V ECL Differential Receiver/Driver |
| Pages / Page | 13 / 7 — MC10EP16, MC100EP16. Figure 2. Fmax/Jitter. Figure 3. Typical Termination … |
| File Format / Size | PDF / 357 Kb |
| Document Language | English |

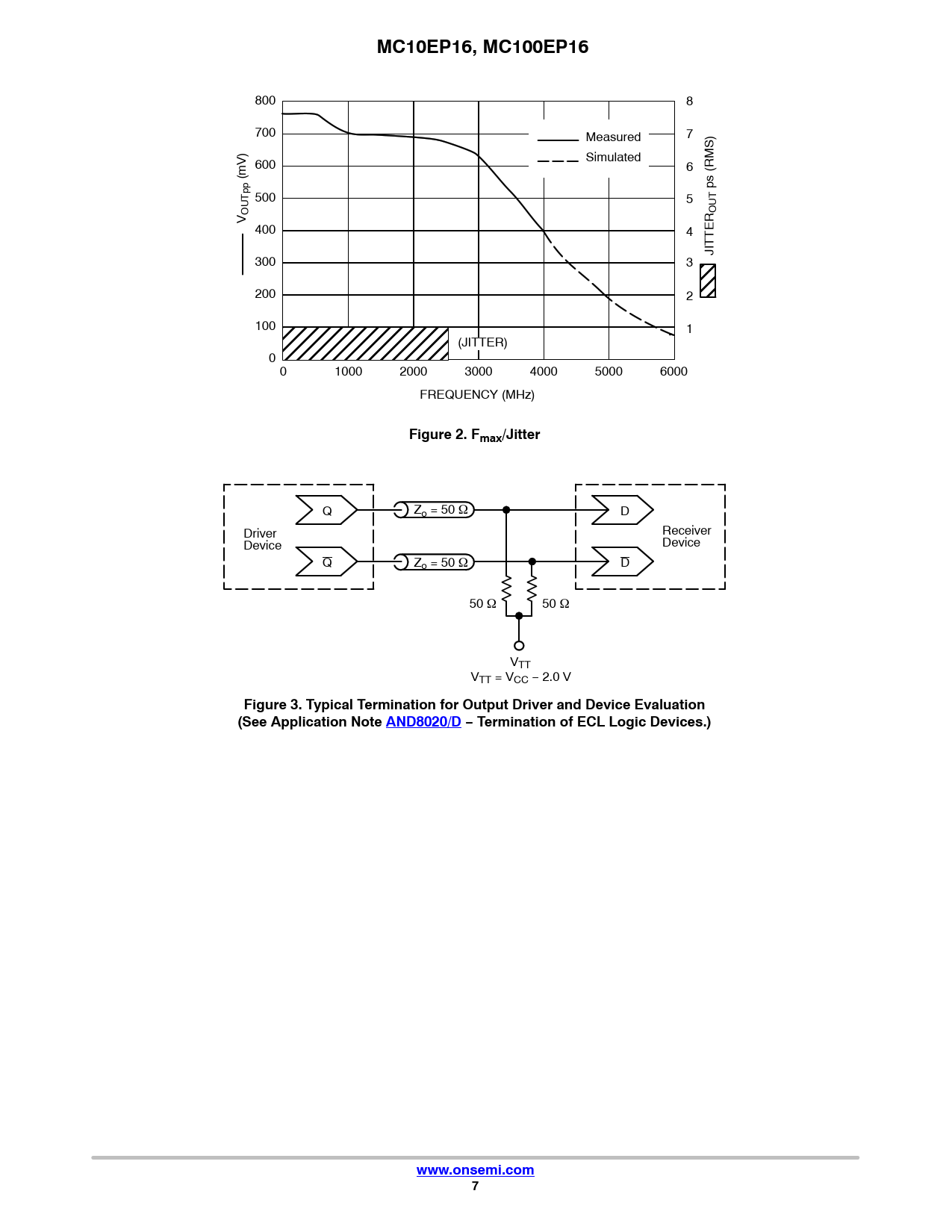

MC10EP16, MC100EP16. Figure 2. Fmax/Jitter. Figure 3. Typical Termination for Output Driver and Device Evaluation
Model Line for this Datasheet
Text Version of Document
MC10EP16, MC100EP16
800 8 700 Measured 7 Simulated 600 6 (mV) ps (RMS) 500 5 OUT V OUTpp 400 4 JITTER 300 3 200 É 2 É 100 ÉÉÉÉÉÉÉÉ 1 (JITTER) 0 ÉÉÉÉÉÉÉÉ 0 1000 2000 3000 4000 5000 6000 ÉÉÉÉÉÉÉÉ FREQUENCY (MHz)
Figure 2. Fmax/Jitter
Q Zo = 50 W D Driver Receiver Device Device Q Zo = 50 W D 50 W 50 W VTT VTT = VCC − 2.0 V
Figure 3. Typical Termination for Output Driver and Device Evaluation (See Application Note AND8020/D − Termination of ECL Logic Devices.) www.onsemi.com 7
