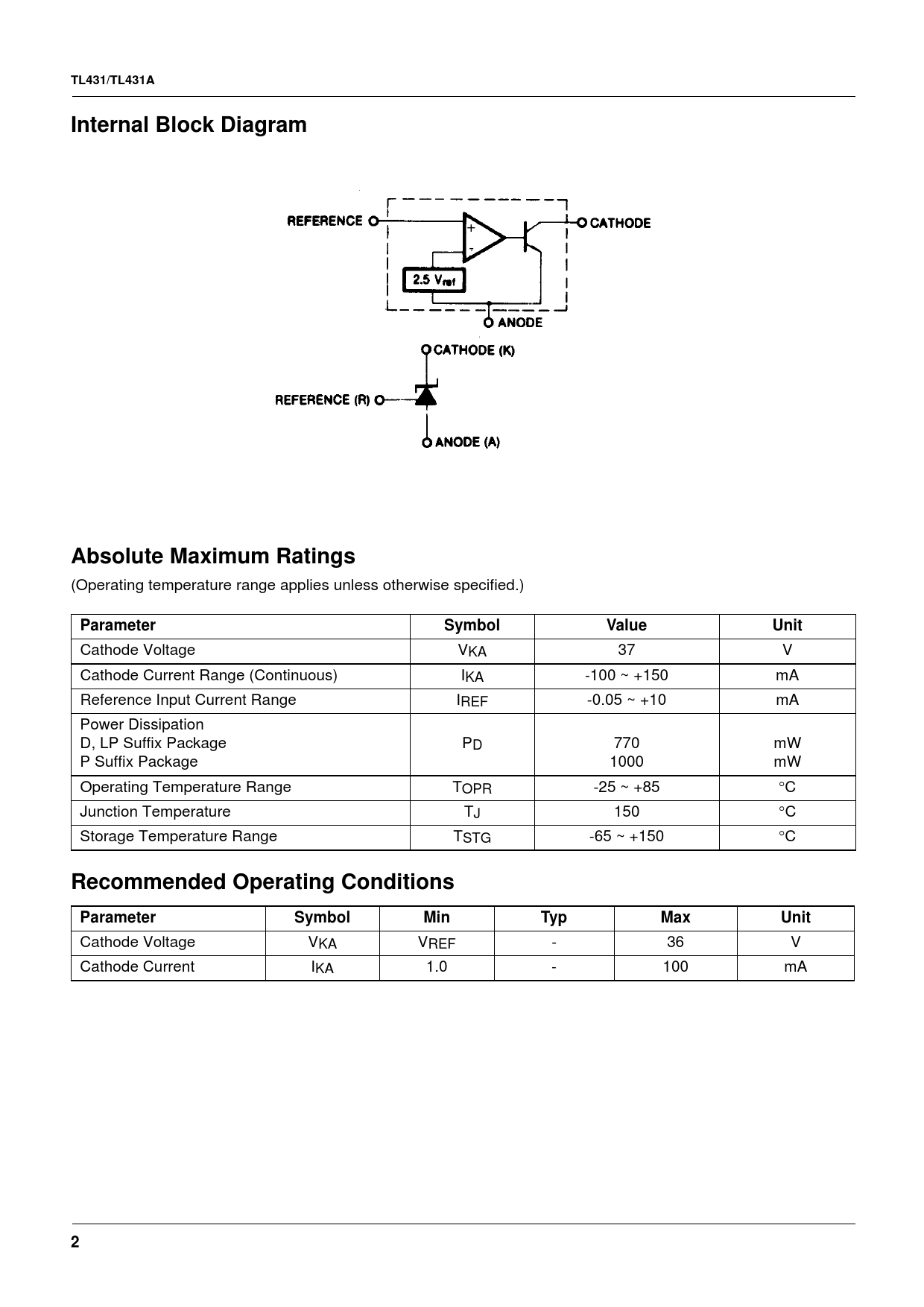

TL431/TL431A Internal Block Diagram
+ -
Absolute Maximum Ratings
(Operating temperature range applies unless otherwise specified.)
Parameter Symbol Value Unit
Cathode Voltage VKA 37 V Cathode Current Range (Continuous) IKA -100 ~ +150 mA Reference Input Current Range IREF -0.05 ~ +10 mA Power Dissipation D, LP Suffix Package PD 770 mW P Suffix Package 1000 mW Operating Temperature Range TOPR -25 ~ +85 °C Junction Temperature TJ 150 °C Storage Temperature Range TSTG -65 ~ +150 °C
Recommended Operating Conditions Parameter Symbol Min Typ Max Unit
Cathode Voltage VKA VREF - 36 V Cathode Current IKA 1.0 - 100 mA
