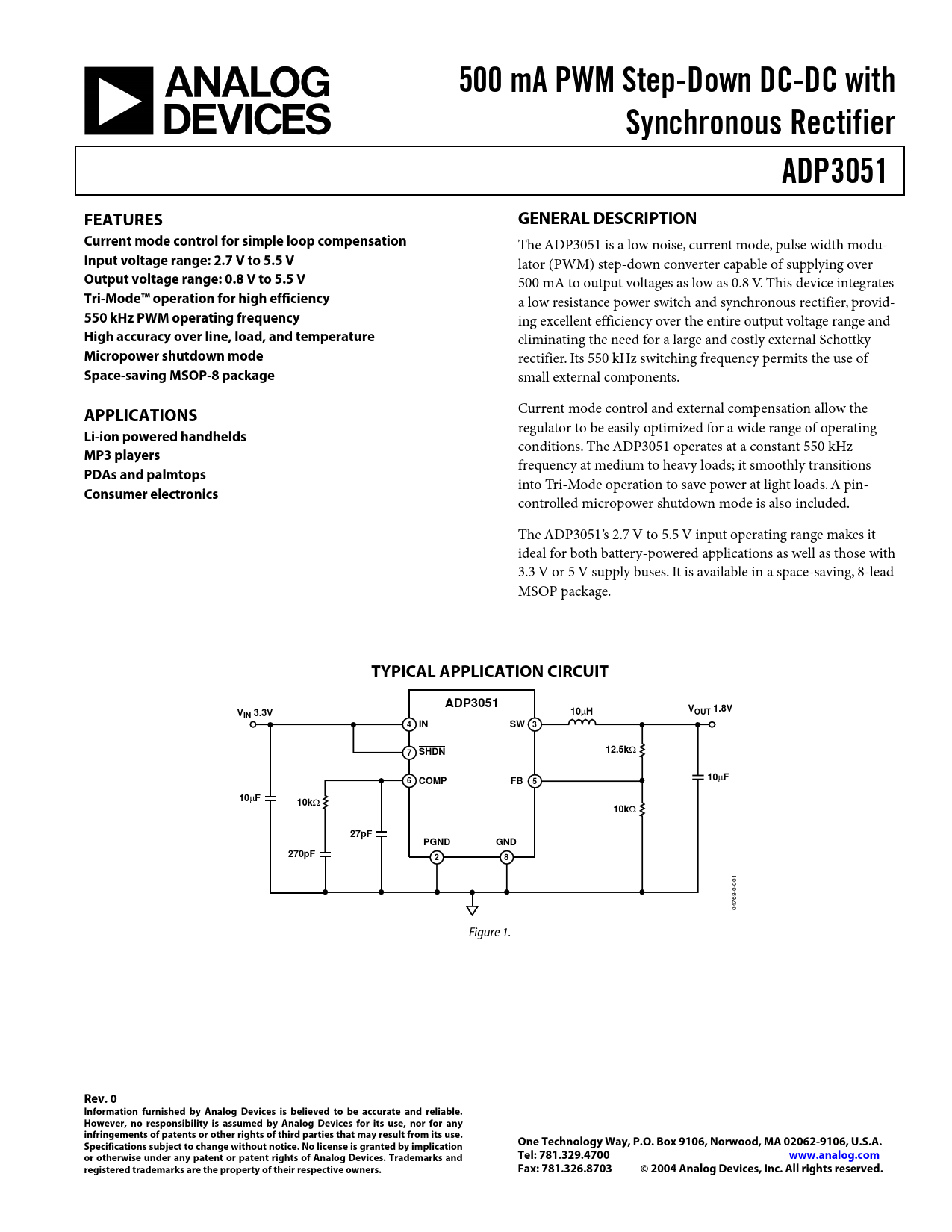

500 mA PWM Step-Down DC-DC with. Synchronous Rectifier. ADP3051. FEATURES. GENERAL DESCRIPTION
Model Line for this Datasheet
Text Version of Document
500 mA PWM Step-Down DC-DC with Synchronous Rectifier ADP3051 FEATURES GENERAL DESCRIPTION Current mode control for simple loop compensation
The ADP3051 is a low noise, current mode, pulse width modu-
Input voltage range: 2.7 V to 5.5 V
lator (PWM) step-down converter capable of supplying over
Output voltage range: 0.8 V to 5.5 V
500 mA to output voltages as low as 0.8 V. This device integrates
Tri-Mode™ operation for high efficiency
a low resistance power switch and synchronous rectifier, provid-
550 kHz PWM operating frequency
ing excellent efficiency over the entire output voltage range and
High accuracy over line, load, and temperature
eliminating the need for a large and costly external Schottky
Micropower shutdown mode
rectifier. Its 550 kHz switching frequency permits the use of
Space-saving MSOP-8 package
small external components.
APPLICATIONS
Current mode control and external compensation allow the regulator to be easily optimized for a wide range of operating
Li-ion powered handhelds
conditions. The ADP3051 operates at a constant 550 kHz
MP3 players
frequency at medium to heavy loads; it smoothly transitions
PDAs and palmtops
into Tri-Mode operation to save power at light loads. A pin-
Consumer electronics
controlled micropower shutdown mode is also included. The ADP3051’s 2.7 V to 5.5 V input operating range makes it ideal for both battery-powered applications as well as those with 3.3 V or 5 V supply buses. It is available in a space-saving, 8-lead MSOP package.
TYPICAL APPLICATION CIRCUIT ADP3051 V VOUT 1.8V IN 3.3V 10
µ
H 4 IN SW 3 7 SHDN 12.5k
Ω
6 COMP FB 10
µ
F 5 10
µ
F 10k
Ω
10k
Ω
27pF PGND GND 270pF 2 8
04768-0-001 Figure 1.
