Datasheet ADP3051 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 500 mA PWM Step-Down DC-DC with Synchronous Rectifier |
| Pages / Page | 16 / 4 — ADP3051. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION |
| File Format / Size | PDF / 441 Kb |
| Document Language | English |

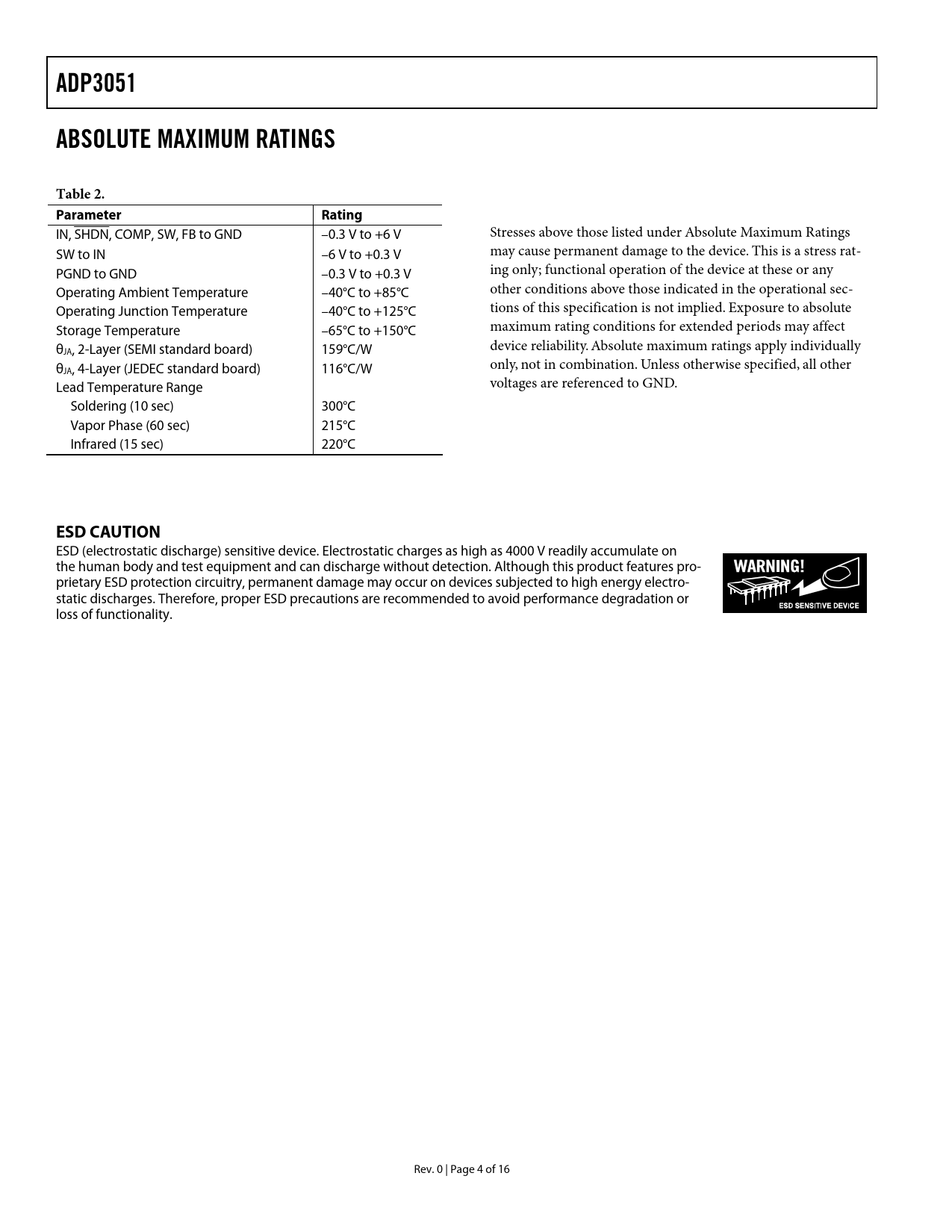

ADP3051. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADP3051 ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating
IN, SHDN, COMP, SW, FB to GND –0.3 V to +6 V Stresses above those listed under Absolute Maximum Ratings SW to IN –6 V to +0.3 V may cause permanent damage to the device. This is a stress rat- PGND to GND –0.3 V to +0.3 V ing only; functional operation of the device at these or any Operating Ambient Temperature –40°C to +85°C other conditions above those indicated in the operational sec- Operating Junction Temperature –40°C to +125°C tions of this specification is not implied. Exposure to absolute Storage Temperature –65°C to +150°C maximum rating conditions for extended periods may affect θ device reliability. Absolute maximum ratings apply individually JA, 2-Layer (SEMI standard board) 159°C/W θ only, not in combination. Unless otherwise specified, all other JA, 4-Layer (JEDEC standard board) 116°C/W Lead Temperature Range voltages are referenced to GND. Soldering (10 sec) 300°C Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C
