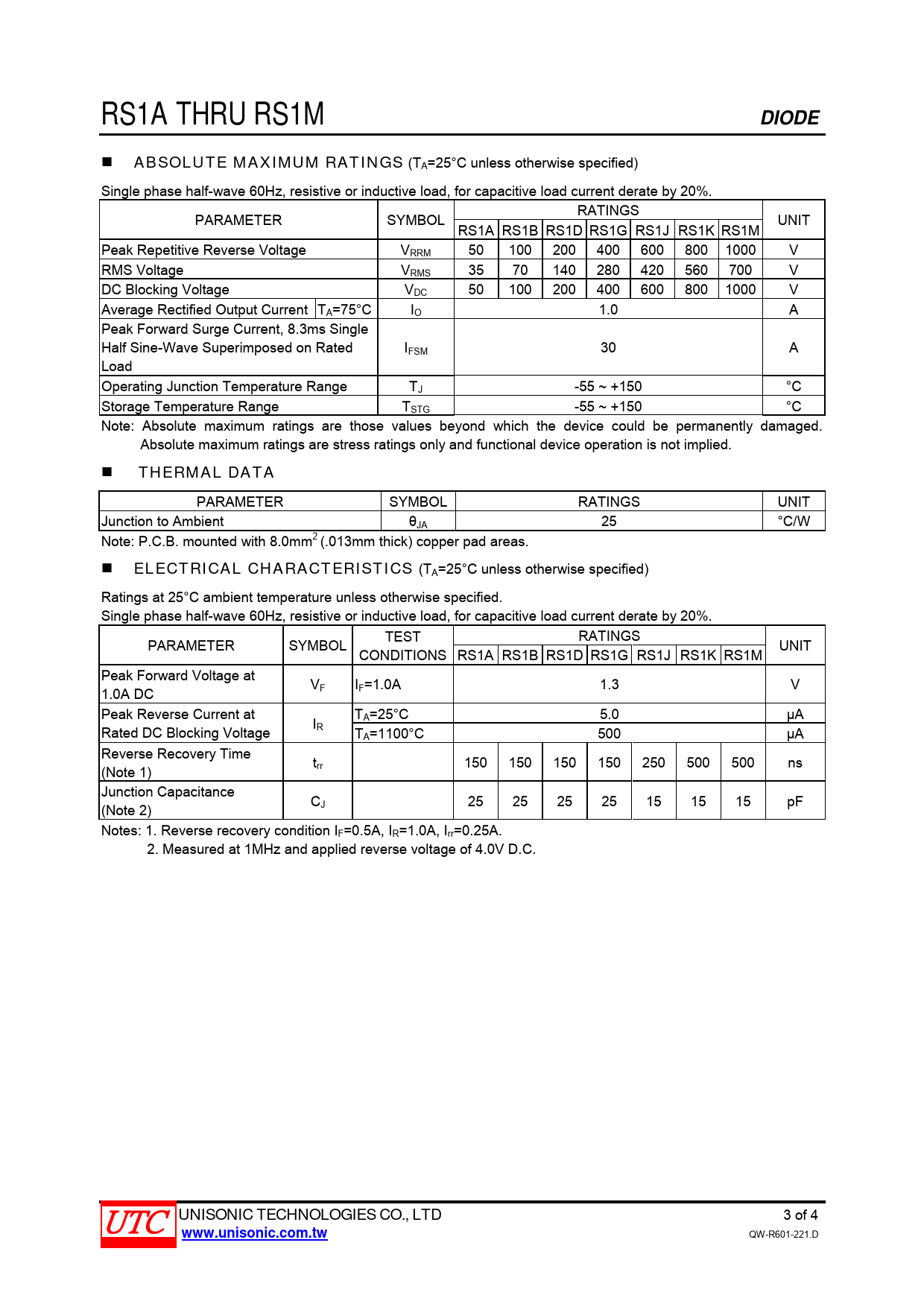

RS1A THRU RS1M DIODE ABSOLUTE MAXIMUM RATINGS
(TA=25°C unless otherwise specified) Single phase half-wave 60Hz, resistive or inductive load, for capacitive load current derate by 20%. RATINGS PARAMETER SYMBOL UNIT RS1A RS1B RS1D RS1G RS1J RS1K RS1M Peak Repetitive Reverse Voltage VRRM 50 100 200 400 600 800 1000 V RMS Voltage VRMS 35 70 140 280 420 560 700 V DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Average Rectified Output Current TA=75°C IO 1.0 A Peak Forward Surge Current, 8.3ms Single Half Sine-Wave Superimposed on Rated IFSM 30 A Load Operating Junction Temperature Range TJ -55 ~ +150 °C Storage Temperature Range TSTG -55 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL DATA
PARAMETER SYMBOL RATINGS UNIT Junction to Ambient θJA 25 °С/W Note: P.C.B. mounted with 8.0mm2 (.013mm thick) copper pad areas.
ELECTRICAL CHARACTERISTICS
(TA=25°C unless otherwise specified) Ratings at 25°C ambient temperature unless otherwise specified. Single phase half-wave 60Hz, resistive or inductive load, for capacitive load current derate by 20%. TEST RATINGS PARAMETER SYMBOL UNIT CONDITIONS RS1A RS1B RS1D RS1G RS1J RS1K RS1M Peak Forward Voltage at V 1.0A DC F IF=1.0A 1.3 V Peak Reverse Current at T I A=25°C 5.0 μA Rated DC Blocking Voltage R TA=1100°C 500 μA Reverse Recovery Time t (Note 1) rr 150 150 150 150 250 500 500 ns Junction Capacitance C (Note 2) J 25 25 25 25 15 15 15 pF Notes: 1. Reverse recovery condition IF=0.5A, IR=1.0A, Irr=0.25A. 2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
