Nexperia. BC817 series. 45 V, 500 mA NPN general-purpose transistors. Fig. 8. BC817-25: DC current gain as a function of
Model Line for this Datasheet
Text Version of Document
Nexperia BC817 series 45 V, 500 mA NPN general-purpose transistors
006aaa132 600 006aaa135 10 hFE (1) VBEsat (V) 400 (2) 1 (1) (2) 200 (3) (3) 0 10- 1 10- 1 103 102 1 10 10- 1 103 102 1 10 IC (mA) IC (mA) VCE = 1 V IC/IB = 10 (1) Tamb = 150 °C (1) Tamb = -55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = -55 °C (3) Tamb = 150 °C

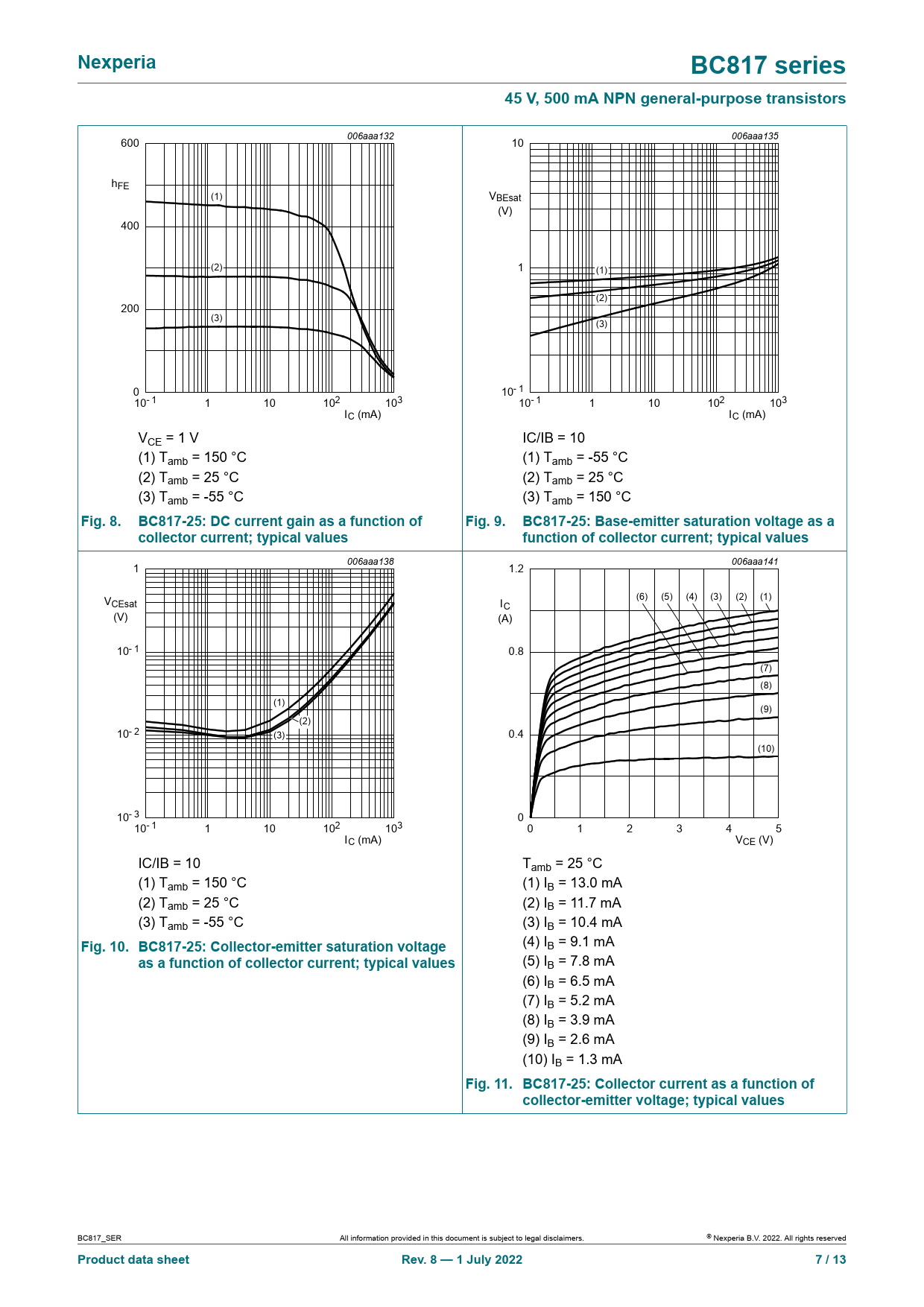

Fig. 8. BC817-25: DC current gain as a function of Fig. 9. BC817-25: Base-emitter saturation voltage as a collector current; typical values function of collector current; typical values
006aaa138 1 006aaa141 1.2 V (6) (5) (4) (3) (2) (1) CEsat IC (V) (A) 10- 1 0.8 (7) (8) (1) (9) (2) 10- 2 (3) 0.4 (10) 10- 3 0 10- 1 103 102 1 10 0 1 2 3 4 5 IC (mA) VCE (V) IC/IB = 10 Tamb = 25 °C (1) Tamb = 150 °C (1) IB = 13.0 mA (2) Tamb = 25 °C (2) IB = 11.7 mA (3) Tamb = -55 °C (3) IB = 10.4 mA
Fig. 10. BC817-25: Collector-emitter saturation voltage
(4) IB = 9.1 mA
as a function of collector current; typical values
(5) IB = 7.8 mA (6) IB = 6.5 mA (7) IB = 5.2 mA (8) IB = 3.9 mA (9) IB = 2.6 mA (10) IB = 1.3 mA
Fig. 11. BC817-25: Collector current as a function of collector-emitter voltage; typical values
BC817_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 8 — 1 July 2022 7 / 13
