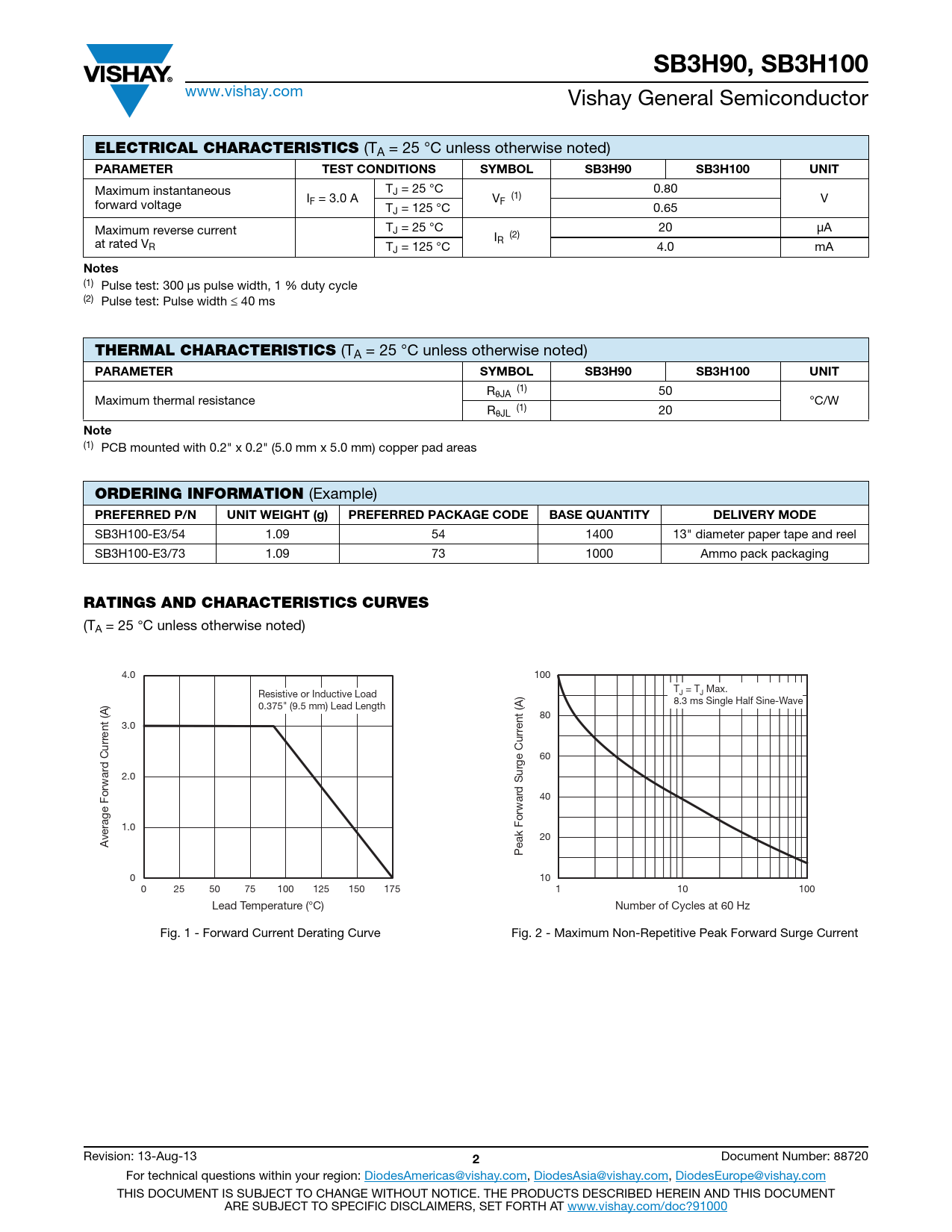

SB3H90, SB3H100
www.vishay.com Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
PARAMETER TEST CONDITIONS SYMBOL SB3H90 SB3H100 UNIT
Maximum instantaneous TJ = 25 °C 0.80 I V V forward voltage F = 3.0 A F (1) TJ = 125 °C 0.65 Maximum reverse current TJ = 25 °C 20 μA I at rated V R (2) R TJ = 125 °C 4.0 mA
Notes
(1) Pulse test: 300 μs pulse width, 1 % duty cycle (2) Pulse test: Pulse width 40 ms
THERMAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
PARAMETER SYMBOL SB3H90 SB3H100 UNIT
RJA (1) 50 Maximum thermal resistance °C/W RJL (1) 20
Note
(1) PCB mounted with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas
ORDERING INFORMATION
(Example)
PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE
SB3H100-E3/54 1.09 54 1400 13" diameter paper tape and reel SB3H100-E3/73 1.09 73 1000 Ammo pack packaging
RATINGS AND CHARACTERISTICS CURVES
(TA = 25 °C unless otherwise noted) 4.0 100 T = T Max. Resistive or Inductive Load J J 8.3 ms Single Half Sine-Wave 0.375" (9.5 mm) Lead Length 80 3.0 ent (A) ent (A) 60 d Curr ge Curr 2.0 ur S d 40 1.0 verage Forwar 20 A Peak Forwar 0 10 0 25 50 75 100 125 150 175 1 10 100 Lead Temperature (°C) Number of Cycles at 60 Hz Fig. 1 - Forward Current Derating Curve Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current Revision: 13-Aug-13
