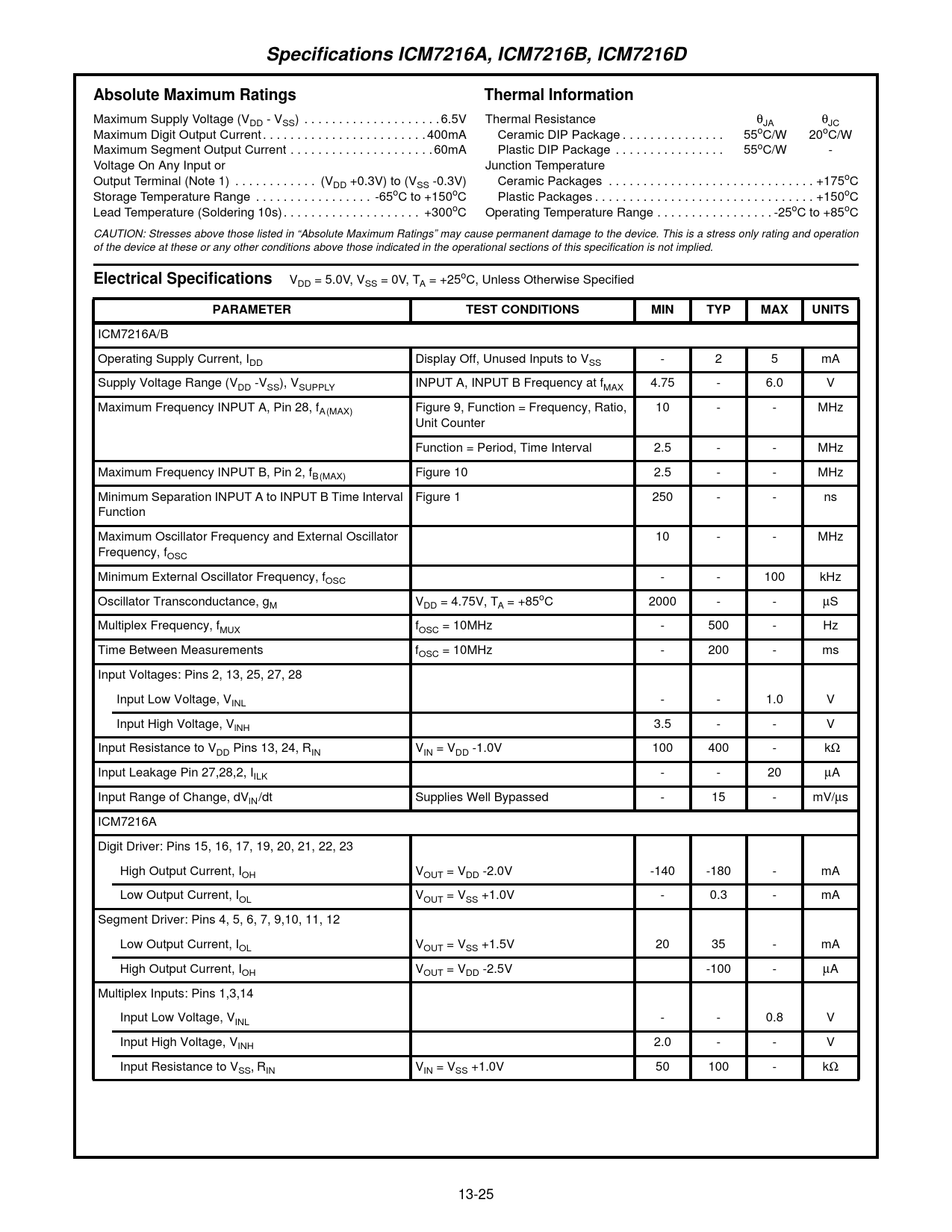

Specifications ICM7216A, ICM7216B, ICM7216D. Absolute Maximum Ratings. Thermal Information. Electrical Specifications
Model Line for this Datasheet
Text Version of Document
Specifications ICM7216A, ICM7216B, ICM7216D Absolute Maximum Ratings Thermal Information
Maximum Supply Voltage (V θ DD - VSS) . 6.5V Thermal Resistance θJA JC Maximum Digit Output Current . 400mA Ceramic DIP Package . 55oC/W 20oC/W Maximum Segment Output Current . 60mA Plastic DIP Package . 55oC/W - Voltage On Any Input or Junction Temperature Output Terminal (Note 1) . (VDD +0.3V) to (VSS -0.3V) Ceramic Packages . +175oC Storage Temperature Range . -65oC to +150oC Plastic Packages . +150oC Lead Temperature (Soldering 10s) . +300oC Operating Temperature Range . -25oC to +85oC CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Electrical Specifications
VDD = 5.0V, VSS = 0V, TA = +25oC, Unless Otherwise Specified
PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
ICM7216A/B Operating Supply Current, IDD Display Off, Unused Inputs to VSS - 2 5 mA Supply Voltage Range (VDD -VSS), VSUPPLY INPUT A, INPUT B Frequency at fMAX 4.75 - 6.0 V Maximum Frequency INPUT A, Pin 28, fA(MAX) Figure 9, Function = Frequency, Ratio, 10 - - MHz Unit Counter Function = Period, Time Interval 2.5 - - MHz Maximum Frequency INPUT B, Pin 2, fB(MAX) Figure 10 2.5 - - MHz Minimum Separation INPUT A to INPUT B Time Interval Figure 1 250 - - ns Function Maximum Oscillator Frequency and External Oscillator 10 - - MHz Frequency, fOSC Minimum External Oscillator Frequency, fOSC - - 100 kHz Oscillator Transconductance, gM VDD = 4.75V, TA = +85oC 2000 - - µS Multiplex Frequency, fMUX fOSC = 10MHz - 500 - Hz Time Between Measurements fOSC = 10MHz - 200 - ms Input Voltages: Pins 2, 13, 25, 27, 28 Input Low Voltage, VINL - - 1.0 V Input High Voltage, VlNH 3.5 - - V Input Resistance to VDD Pins 13, 24, RIN VIN = VDD -1.0V 100 400 - kΩ Input Leakage Pin 27,28,2, IILK - - 20 µA Input Range of Change, dVlN/dt Supplies Well Bypassed - 15 - mV/µs ICM7216A Digit Driver: Pins 15, 16, 17, 19, 20, 21, 22, 23 High Output Current, IOH VOUT = VDD -2.0V -140 -180 - mA Low Output Current, IOL VOUT = VSS +1.0V - 0.3 - mA Segment Driver: Pins 4, 5, 6, 7, 9,10, 11, 12 Low Output Current, IOL VOUT = VSS +1.5V 20 35 - mA High Output Current, IOH VOUT = VDD -2.5V -100 - µA Multiplex Inputs: Pins 1,3,14 Input Low Voltage, VINL - - 0.8 V Input High Voltage, VINH 2.0 - - V Input Resistance to VSS, RIN VIN = VSS +1.0V 50 100 - kΩ 13-25
