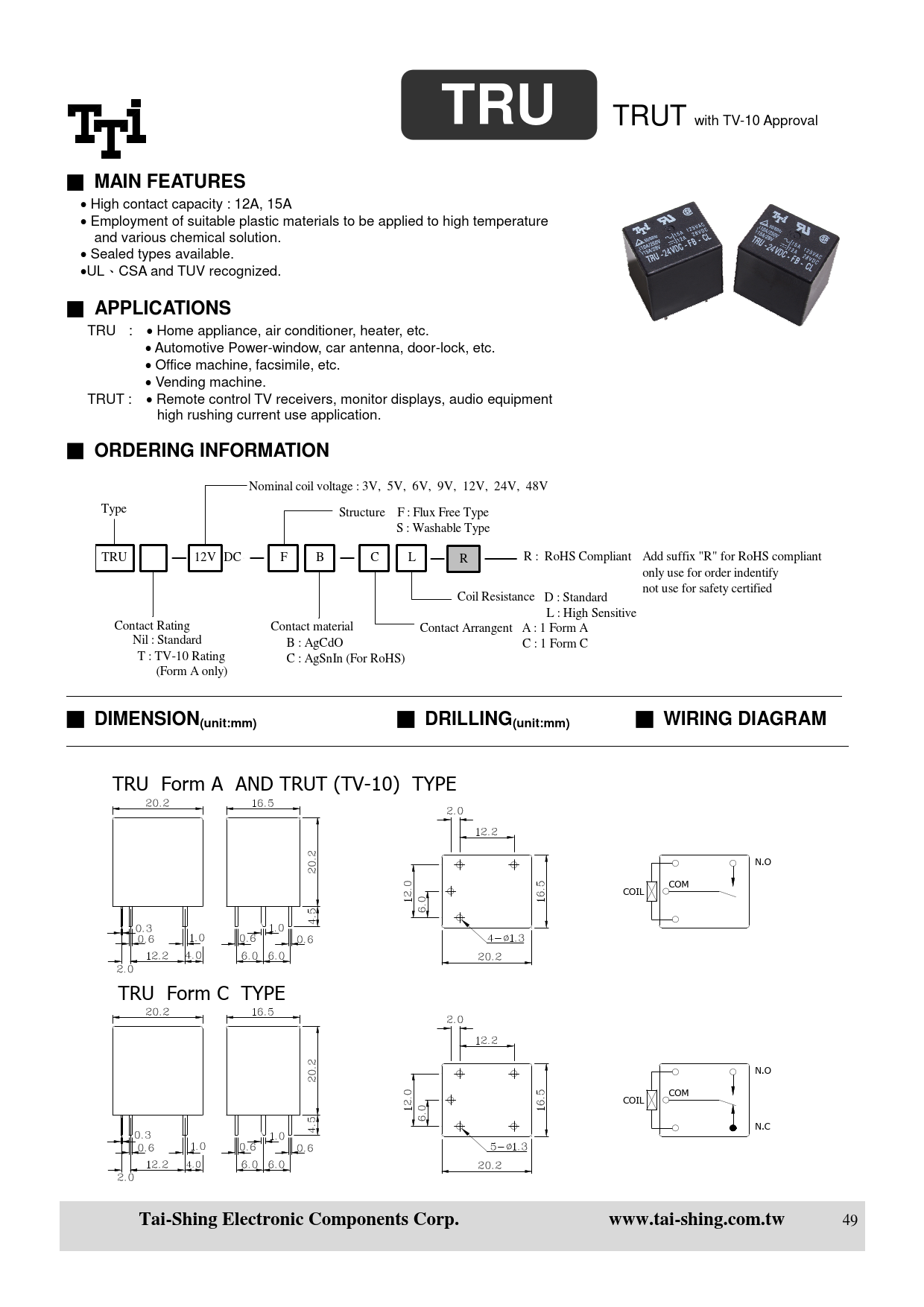

TRU. MAIN FEATURES. APPLICATIONS. ORDERING INFORMATION. DIMENSION(unit:mm). DRILLING(unit:mm). WIRING DIAGRAM
Model Line for this Datasheet
- TRU-12VDC-FB-AD TRU-12VDC-FB-AL TRU-12VDC-FB-CD TRU-12VDC-FB-CL TRU-12VDC-FC-ADR TRU-12VDC-FC-ALR TRU-12VDC-FC-CDR TRU-12VDC-FC-CLR TRU-12VDC-SB-AD TRU-12VDC-SB-AL TRU-12VDC-SB-CD TRU-12VDC-SB-CL TRU-12VDC-SC-ADR TRU-12VDC-SC-ALR TRU-12VDC-SC-CDR TRU-12VDC-SC-CLR TRU-24VDC-FB-AD TRU-24VDC-FB-AL TRU-24VDC-FB-CD TRU-24VDC-FB-CL TRU-24VDC-FC-ADR TRU-24VDC-FC-ALR TRU-24VDC-FC-CDR TRU-24VDC-FC-CLR TRU-24VDC-SB-AD TRU-24VDC-SB-AL TRU-24VDC-SB-CD TRU-24VDC-SB-CL TRU-24VDC-SC-ADR TRU-24VDC-SC-ALR TRU-24VDC-SC-CDR TRU-24VDC-SC-CLR TRU-3VDC-FB-AD TRU-3VDC-FB-AL TRU-3VDC-FB-CD TRU-3VDC-FB-CL TRU-3VDC-FC-ADR TRU-3VDC-FC-ALR TRU-3VDC-FC-CDR TRU-3VDC-FC-CLR TRU-3VDC-SB-AD TRU-3VDC-SB-AL TRU-3VDC-SB-CD TRU-3VDC-SB-CL TRU-3VDC-SC-ADR TRU-3VDC-SC-ALR TRU-3VDC-SC-CDR TRU-3VDC-SC-CLR TRU-48VDC-FB-AD TRU-48VDC-FB-AL TRU-48VDC-FB-CD TRU-48VDC-FB-CL TRU-48VDC-FC-ADR TRU-48VDC-FC-ALR TRU-48VDC-FC-CDR TRU-48VDC-FC-CLR TRU-48VDC-SB-AD TRU-48VDC-SB-AL TRU-48VDC-SB-CD TRU-48VDC-SB-CL TRU-48VDC-SC-ADR TRU-48VDC-SC-ALR TRU-48VDC-SC-CDR TRU-48VDC-SC-CLR TRU-5VDC-FB-AD TRU-5VDC-FB-AL TRU-5VDC-FB-CD TRU-5VDC-FB-CL TRU-5VDC-FC-ADR TRU-5VDC-FC-ALR TRU-5VDC-FC-CDR TRU-5VDC-FC-CLR TRU-5VDC-SB-AD TRU-5VDC-SB-AL TRU-5VDC-SB-CD TRU-5VDC-SB-CL TRU-5VDC-SC-ADR TRU-5VDC-SC-ALR TRU-5VDC-SC-CDR TRU-5VDC-SC-CLR TRU-6VDC-FB-AD TRU-6VDC-FB-AL TRU-6VDC-FB-CD TRU-6VDC-FB-CL TRU-6VDC-FC-ADR TRU-6VDC-FC-ALR TRU-6VDC-FC-CDR TRU-6VDC-FC-CLR TRU-6VDC-SB-AD TRU-6VDC-SB-AL TRU-6VDC-SB-CD TRU-6VDC-SB-CL TRU-6VDC-SC-ADR TRU-6VDC-SC-ALR TRU-6VDC-SC-CDR TRU-6VDC-SC-CLR TRU-9VDC-FB-AD TRU-9VDC-FB-AL TRU-9VDC-FB-CD TRU-9VDC-FB-CL TRU-9VDC-FC-ADR TRU-9VDC-FC-ALR TRU-9VDC-FC-CDR TRU-9VDC-FC-CLR TRU-9VDC-SB-AD TRU-9VDC-SB-AL TRU-9VDC-SB-CD TRU-9VDC-SB-CL TRU-9VDC-SC-ADR TRU-9VDC-SC-ALR TRU-9VDC-SC-CDR TRU-9VDC-SC-CLR TRUT-12VDC-FB-AD TRUT-12VDC-FB-AL TRUT-12VDC-FC-AD TRUT-12VDC-FC-ADR TRUT-12VDC-FC-AL TRUT-12VDC-FC-ALR TRUT-12VDC-SB-AD TRUT-12VDC-SB-AL TRUT-12VDC-SC-AD TRUT-12VDC-SC-ADR TRUT-12VDC-SC-AL TRUT-12VDC-SC-ALR TRUT-24VDC-FB-AD TRUT-24VDC-FB-AL TRUT-24VDC-FC-AD TRUT-24VDC-FC-ADR TRUT-24VDC-FC-AL TRUT-24VDC-FC-ALR TRUT-24VDC-SB-AD TRUT-24VDC-SB-AL TRUT-24VDC-SC-AD TRUT-24VDC-SC-ADR TRUT-24VDC-SC-AL TRUT-24VDC-SC-ALR TRUT-3VDC-FB-AD TRUT-3VDC-FB-AL TRUT-3VDC-FC-AD TRUT-3VDC-FC-ADR TRUT-3VDC-FC-AL TRUT-3VDC-FC-ALR TRUT-3VDC-SB-AD TRUT-3VDC-SB-AL TRUT-3VDC-SC-AD TRUT-3VDC-SC-ADR TRUT-3VDC-SC-AL TRUT-3VDC-SC-ALR TRUT-48VDC-FB-AD TRUT-48VDC-FB-AL TRUT-48VDC-FC-AD TRUT-48VDC-FC-ADR TRUT-48VDC-FC-AL TRUT-48VDC-FC-ALR TRUT-48VDC-SB-AD TRUT-48VDC-SB-AL TRUT-48VDC-SC-AD TRUT-48VDC-SC-ADR TRUT-48VDC-SC-AL TRUT-48VDC-SC-ALR TRUT-5VDC-FB-AD TRUT-5VDC-FB-AL TRUT-5VDC-FC-AD TRUT-5VDC-FC-ADR TRUT-5VDC-FC-AL TRUT-5VDC-FC-ALR TRUT-5VDC-SB-AD TRUT-5VDC-SB-AL TRUT-5VDC-SC-AD TRUT-5VDC-SC-ADR TRUT-5VDC-SC-AL TRUT-5VDC-SC-ALR TRUT-6VDC-FB-AD TRUT-6VDC-FB-AL TRUT-6VDC-FC-AD TRUT-6VDC-FC-ADR TRUT-6VDC-FC-AL TRUT-6VDC-FC-ALR TRUT-6VDC-SB-AD TRUT-6VDC-SB-AL TRUT-6VDC-SC-AD TRUT-6VDC-SC-ADR TRUT-6VDC-SC-AL TRUT-6VDC-SC-ALR TRUT-9VDC-FB-AD TRUT-9VDC-FB-AL TRUT-9VDC-FC-AD TRUT-9VDC-FC-ADR TRUT-9VDC-FC-AL TRUT-9VDC-FC-ALR TRUT-9VDC-SB-AD TRUT-9VDC-SB-AL TRUT-9VDC-SC-AD TRUT-9VDC-SC-ADR TRUT-9VDC-SC-AL TRUT-9VDC-SC-ALR
Text Version of Document
TRU
TRUT with TV-10 Approval ▓
MAIN FEATURES
High contact capacity : 12A, 15A Employment of suitable plastic materials to be applied to high temperature and various chemical solution. Sealed types available. UL、CSA and TUV recognized. ▓
APPLICATIONS
TRU : Home appliance, air conditioner, heater, etc. Automotive Power-window, car antenna, door-lock, etc. Office machine, facsimile, etc. Vending machine. TRUT : Remote control TV receivers, monitor displays, audio equipment high rushing current use application. ▓
ORDERING INFORMATION
Nominal coil voltage : 3V, 5V, 6V, 9V, 12V, 24V, 48V Type Structure F : Flux Free Type S : Washable Type TRU 12V DC F B C L R R : RoHS Compliant Add suffix "R" for RoHS compliant only use for order indentify not use for safety certified Coil Resistance D : Standard L : High Sensitive Contact Rating Contact material Contact Arrangent A : 1 Form A Nil : Standard B : AgCdO C : 1 Form C T : TV-10 Rating C : AgSnIn (For RoHS) (Form A only) ■
DIMENSION(unit:mm)
■
DRILLING(unit:mm)
■
WIRING DIAGRAM
TRU Form A AND TRUT (TV-10) TYPE N.O COM COIL TRU Form C TYPE N.O COM COIL N.C
