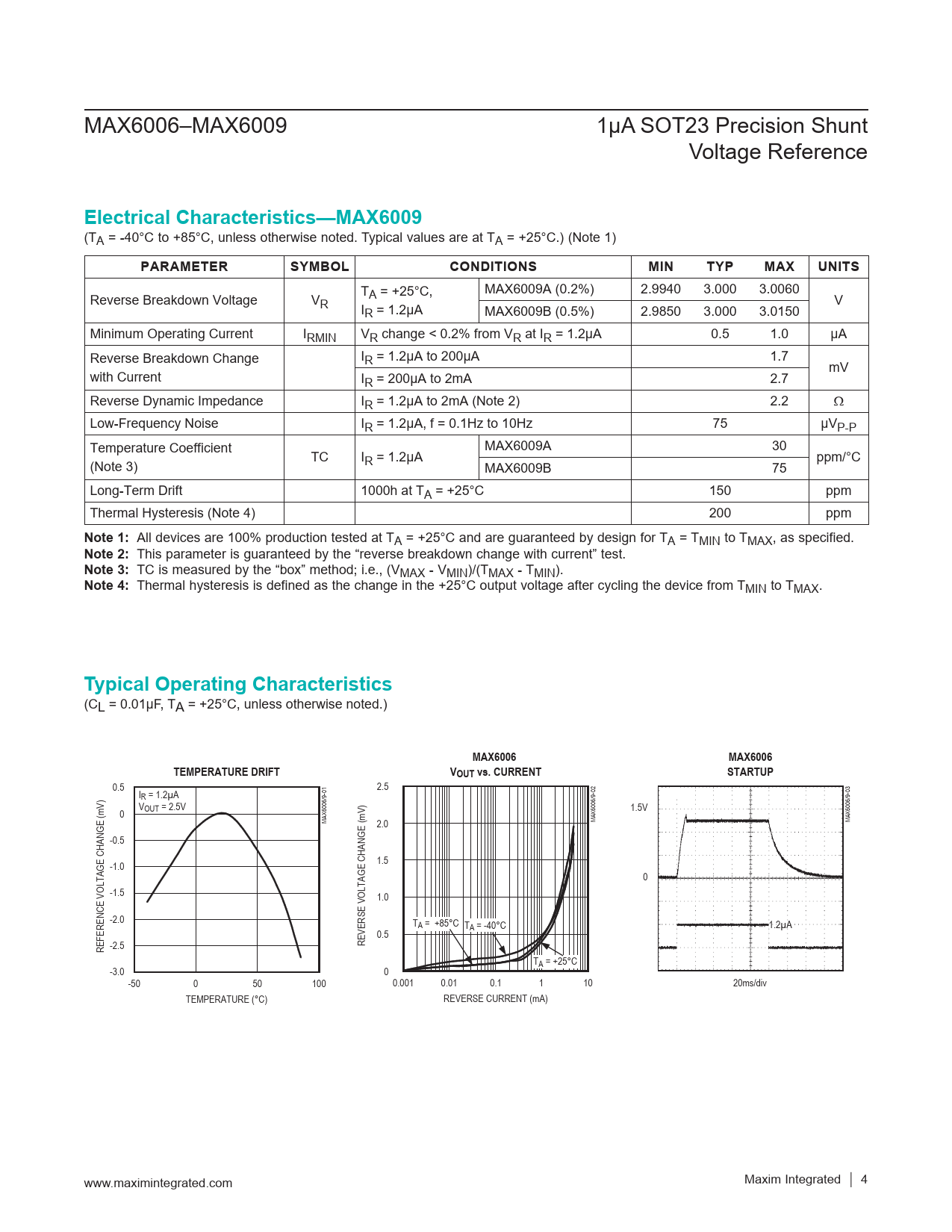

MAX6006–MAX6009 1µA SOT23 Precision Shunt Voltage Reference
Electrical Characteristics—MAX6009
(TA = -40°C to +85°C, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
T MAX6009A (0.2%) 2.9940 3.000 3.0060 Reverse Breakdown Voltage V A = +25°C, R V IR = 1.2µA MAX6009B (0.5%) 2.9850 3.000 3.0150 Minimum Operating Current IRMIN VR change < 0.2% from VR at IR = 1.2µA 0.5 1.0 µA Reverse Breakdown Change IR = 1.2µA to 200µA 1.7 mV with Current IR = 200µA to 2mA 2.7 Reverse Dynamic Impedance IR = 1.2µA to 2mA (Note 2) 2.2 W Low-Frequency Noise IR = 1.2µA, f = 0.1Hz to 10Hz 75 µVP-P Temperature Coefficient MAX6009A 30 TC I ppm/°C (Note 3) R = 1.2µA MAX6009B 75 Long-Term Drift 1000h at TA = +25°C 150 ppm Thermal Hysteresis (Note 4) 200 ppm
Note 1:
All devices are 100% production tested at TA = +25°C and are guaranteed by design for TA = TMIN to TMAX, as specified.
Note 2:
This parameter is guaranteed by the “reverse breakdown change with current” test.
Note 3:
TC is measured by the “box” method; i.e., (VMAX - VMIN)/(TMAX - TMIN).
Note 4:
Thermal hysteresis is defined as the change in the +25°C output voltage after cycling the device from TMIN to TMAX.
Typical Operating Characteristics
(CL = 0.01µF, TA = +25°C, unless otherwise noted.)
MAX6006 MAX6006 TEMPERATURE DRIFT VOUT vs. CURRENT STARTUP
0.5 2.5 IR = 1.2µA VOUT = 2.5V 1.5V 0 MAX6006/9-01 MAX6006/9-02 MAX6006/9-03 2.0 -0.5 1.5 -1.0 0 -1.5 1.0 -2.0 TA = +85°C TA = -40°C 1.2µA 0.5 REVERSE VOLTAGE CHANGE (mV) -2.5 REFERENCE VOLTAGE CHANGE (mV) TA = +25°C -3.0 0 -50 0 50 100 0.001 0.01 0.1 1 10 20ms/div TEMPERATURE (°C) REVERSE CURRENT (mA) www.maximintegrated.com Maxim Integrated │ 4
