Datasheet MAX6125, MAX6141, MAX6145, MAX6150, MAX6160 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | SOT23, Low-Cost, Low-Dropout, 3-Terminal Voltage References |
| Pages / Page | 12 / 4 — Electrical Characteristics—MAX6160. PARAMETER. SYMBOL. CONDITIONS. MIN. … |
| File Format / Size | PDF / 2.2 Mb |
| Document Language | English |
Electrical Characteristics—MAX6160. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS. Note 1:. Note 2:
Model Line for this Datasheet
Text Version of Document

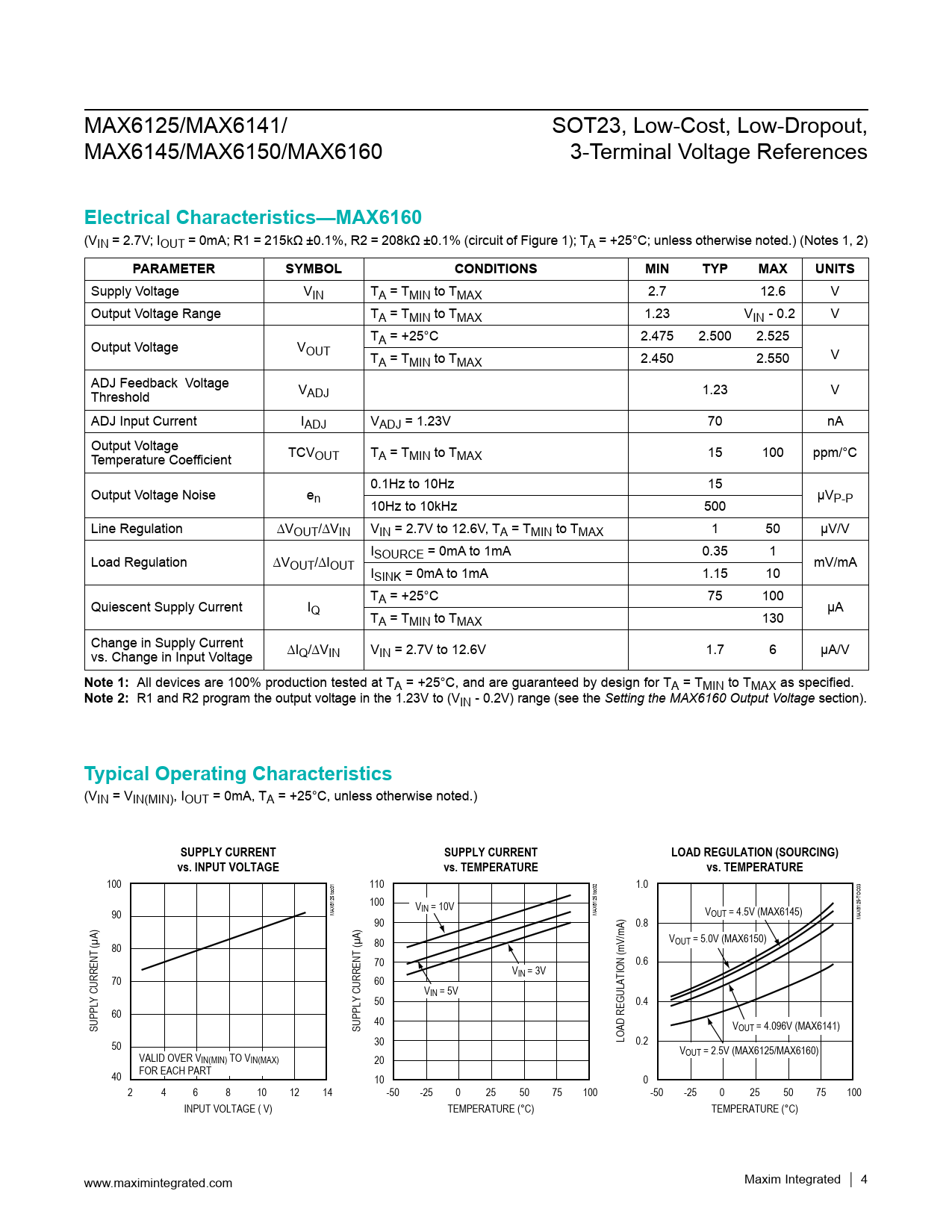

MAX6125/MAX6141/ SOT23, Low-Cost, Low-Dropout, MAX6145/MAX6150/MAX6160 3-Terminal Voltage References
Electrical Characteristics—MAX6160
(VIN = 2.7V; IOUT = 0mA; R1 = 215kΩ ±0.1%, R2 = 208kΩ ±0.1% (circuit of Figure 1); TA = +25°C; unless otherwise noted.) (Notes 1, 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Supply Voltage VIN TA = TMIN to TMAX 2.7 12.6 V Output Voltage Range TA = TMIN to TMAX 1.23 VIN - 0.2 V T Output Voltage V A = +25°C 2.475 2.500 2.525 OUT V TA = TMIN to TMAX 2.450 2.550 ADJ Feedback Voltage Threshold VADJ 1.23 V ADJ Input Current IADJ VADJ = 1.23V 70 nA Output Voltage Temperature Coefficient TCVOUT TA = TMIN to TMAX 15 100 ppm/°C 0.1Hz to 10Hz 15 Output Voltage Noise en µVP-P 10Hz to 10kHz 500 Line Regulation ∆VOUT/∆VIN VIN = 2.7V to 12.6V, TA = TMIN to TMAX 1 50 µV/V I Load Regulation ∆V SOURCE = 0mA to 1mA 0.35 1 OUT/∆IOUT mV/mA ISINK = 0mA to 1mA 1.15 10 T Quiescent Supply Current I A = +25°C 75 100 Q µA TA = TMIN to TMAX 130 Change in Supply Current vs. Change in Input Voltage ∆IQ/∆VIN VIN = 2.7V to 12.6V 1.7 6 µA/V
Note 1:
All devices are 100% production tested at TA = +25°C, and are guaranteed by design for TA = TMIN to TMAX as specified.
Note 2:
R1 and R2 program the output voltage in the 1.23V to (VIN - 0.2V) range (see the Setting the MAX6160 Output Voltage section).
Typical Operating Characteristics
(VIN = VIN(MIN), IOUT = 0mA, TA = +25°C, unless otherwise noted.)
SUPPLY CURRENT SUPPLY CURRENT LOAD REGULATION (SOURCING) vs. INPUT VOLTAGE vs. TEMPERATURE vs. TEMPERATURE
100 110 1.0 100 VIN = 10V MAX6125 toc01 90 MAX6125 toc02 VOUT = 4.5V (MAX6145) 90 MAX6125-TOC03 0.8 V 80 80 OUT = 5.0V (MAX6150) 70 0.6 VIN = 3V 70 60 VIN = 5V 50 0.4 60 SUPPLY CURRENT (µA) SUPPLY CURRENT (µA) 40 VOUT = 4.096V (MAX6141) LOAD REGULATION (mV/mA) 50 30 0.2 VALID OVER V VOUT = 2.5V (MAX6125/MAX6160) IN(MIN) TO VIN(MAX) 20 40 FOR EACH PART 10 0 2 4 6 8 10 12 14 -50 -25 0 25 50 75 100 -50 -25 0 25 50 75 100 INPUT VOLTAGE ( V) TEMPERATURE (°C) TEMPERATURE (°C) www.maximintegrated.com Maxim Integrated │ 4
