WeEn Semiconductors. BTA206X-800ET. 3Q Hi-Com Triac
Model Line for this Datasheet
Text Version of Document
WeEn Semiconductors BTA206X-800ET 3Q Hi-Com Triac
003aag552 10 105 conduction form Ptot angle factor Th(max) 109.5 (W) (degrees) a (°C) α = 180° 8 30 2.816 114 60 1.967 120° 90 1.570 α 118.5 90° 6 120 1.329 180 1.110 123 60° 127.5 30° 4 132 136.5 2 141 145.5 0 150 0 1.5 3 4.5 6 7.5 IT(RMS) (A) a = form factor = IT(RMS) / IT(AV) α = conduction angle

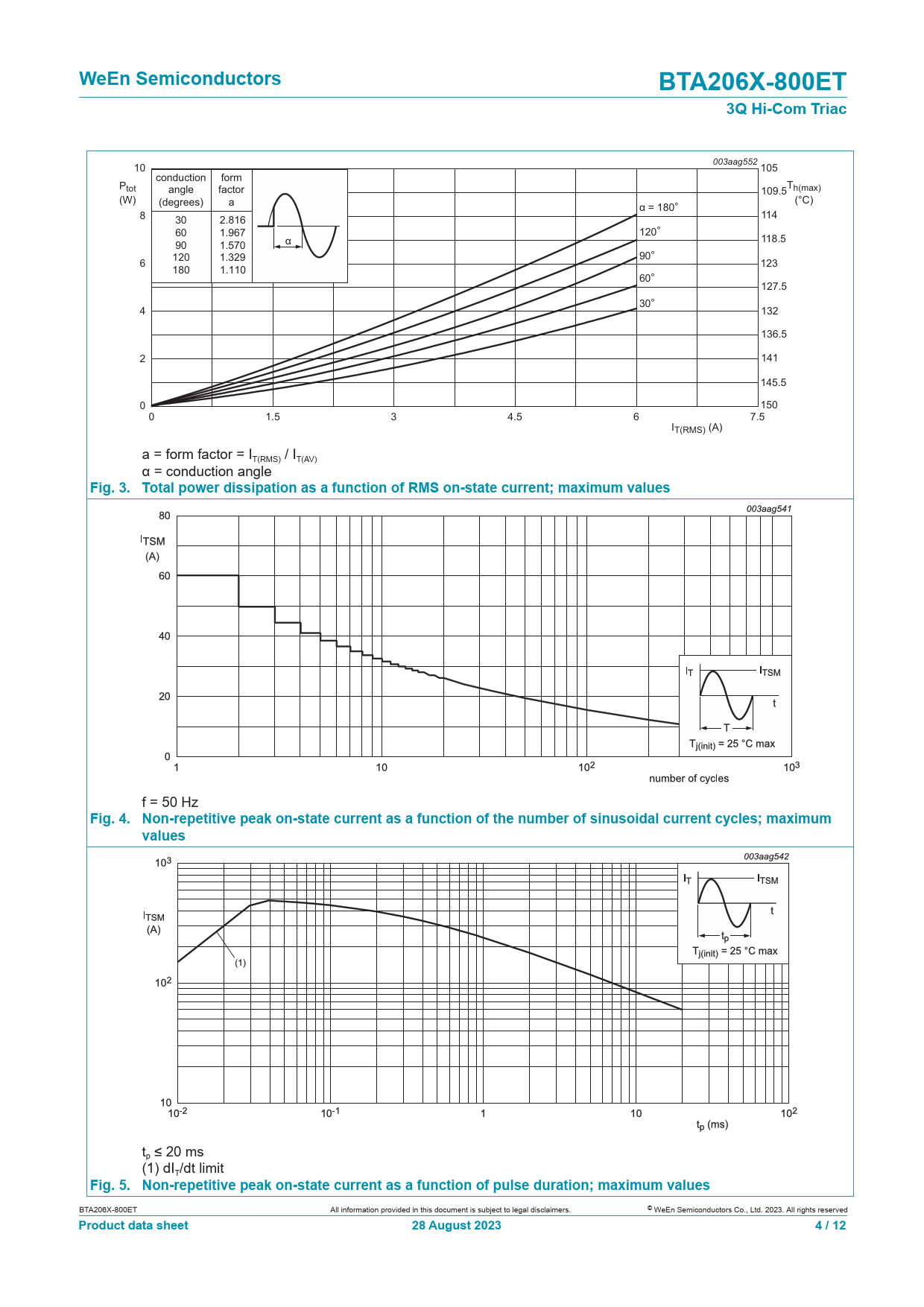

Fig. 3. Total power dissipation as a function of RMS on-state current; maximum values
f = 50 Hz
Fig. 4. Non-repetitive peak on-state current as a function of the number of sinusoidal current cycles; maximum values
tp ≤ 20 ms (1) dIT/dt limit
Fig. 5. Non-repetitive peak on-state current as a function of pulse duration; maximum values
BTA206X-800ET All information provided in this document is subject to legal disclaimers. © WeEn Semiconductors Co., Ltd. 2023. All rights reserved
Product data sheet 28 August 2023 4 / 12
