Datasheet BTA206X-800ET (WeEn Semiconductors) - 6
| Manufacturer | WeEn Semiconductors |
| Description | 3Q Hi-Com Triac |
| Pages / Page | 12 / 6 — WeEn Semiconductors. BTA206X-800ET. 3Q Hi-Com Triac. 11. Characteristics … |
| File Format / Size | PDF / 592 Kb |
| Document Language | English |

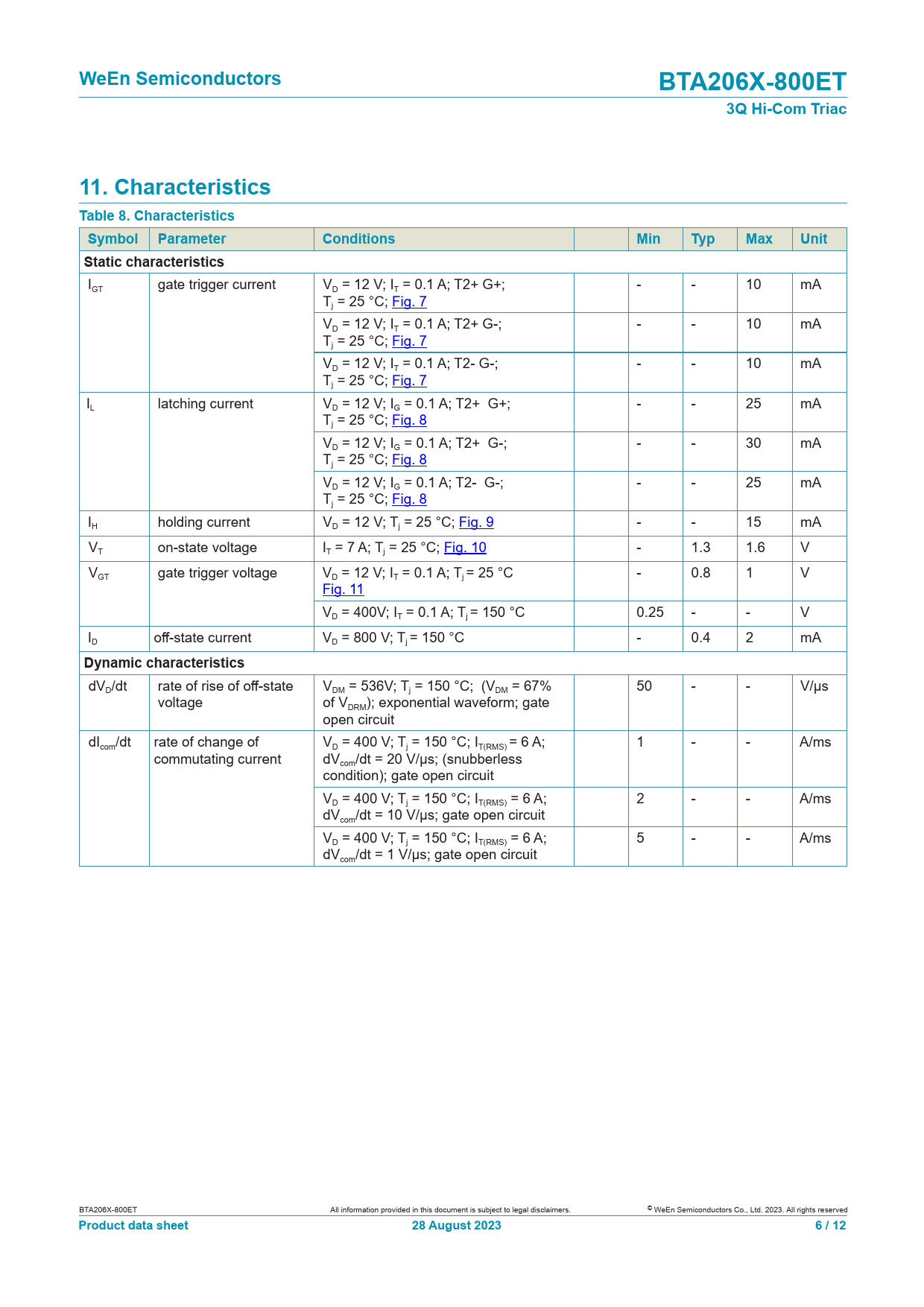

WeEn Semiconductors. BTA206X-800ET. 3Q Hi-Com Triac. 11. Characteristics Table 8. Characteristics. Symbol Parameter. Conditions
Model Line for this Datasheet
Text Version of Document
WeEn Semiconductors BTA206X-800ET 3Q Hi-Com Triac 11. Characteristics Table 8. Characteristics Symbol Parameter Conditions Min Typ Max Unit Static characteristics
IGT gate trigger current VD = 12 V; IT = 0.1 A; T2+ G+; - - 10 mA Tj = 25 °C; Fig. 7 VD = 12 V; IT = 0.1 A; T2+ G-; - - 10 mA Tj = 25 °C; Fig. 7 VD = 12 V; IT = 0.1 A; T2- G-; - - 10 mA Tj = 25 °C; Fig. 7 IL latching current VD = 12 V; IG = 0.1 A; T2+ G+; - - 25 mA Tj = 25 °C; Fig. 8 VD = 12 V; IG = 0.1 A; T2+ G-; - - 30 mA Tj = 25 °C; Fig. 8 VD = 12 V; IG = 0.1 A; T2- G-; - - 25 mA Tj = 25 °C; Fig. 8 IH holding current VD = 12 V; Tj = 25 °C; Fig. 9 - - 15 mA VT on-state voltage IT = 7 A; Tj = 25 °C; Fig. 10 - 1.3 1.6 V VGT gate trigger voltage VD = 12 V; IT = 0.1 A; Tj = 25 °C - 0.8 1 V Fig. 11 VD = 400V; IT = 0.1 A; Tj = 150 °C 0.25 - - V ID off-state current VD = 800 V; Tj = 150 °C - 0.4 2 mA
Dynamic characteristics
dVD/dt rate of rise of off-state VDM = 536V; Tj = 150 °C; (VDM = 67% 50 - - V/μs voltage of VDRM); exponential waveform; gate open circuit dIcom/dt rate of change of VD = 400 V; Tj = 150 °C; IT(RMS) = 6 A; 1 - - A/ms commutating current dVcom/dt = 20 V/μs; (snubberless condition); gate open circuit VD = 400 V; Tj = 150 °C; IT(RMS) = 6 A; 2 - - A/ms dVcom/dt = 10 V/μs; gate open circuit VD = 400 V; Tj = 150 °C; IT(RMS) = 6 A; 5 - - A/ms dVcom/dt = 1 V/μs; gate open circuit BTA206X-800ET All information provided in this document is subject to legal disclaimers. © WeEn Semiconductors Co., Ltd. 2023. All rights reserved
Product data sheet 28 August 2023 6 / 12
