Datasheet BTA206X-800ET (WeEn Semiconductors) - 7
| Manufacturer | WeEn Semiconductors |
| Description | 3Q Hi-Com Triac |
| Pages / Page | 12 / 7 — WeEn Semiconductors. BTA206X-800ET. 3Q Hi-Com Triac. Fig. 8. Normalized … |
| File Format / Size | PDF / 592 Kb |
| Document Language | English |
WeEn Semiconductors. BTA206X-800ET. 3Q Hi-Com Triac. Fig. 8. Normalized latching current as a function of. junction temperature
Model Line for this Datasheet
Text Version of Document
WeEn Semiconductors BTA206X-800ET 3Q Hi-Com Triac
(1) T2- G-

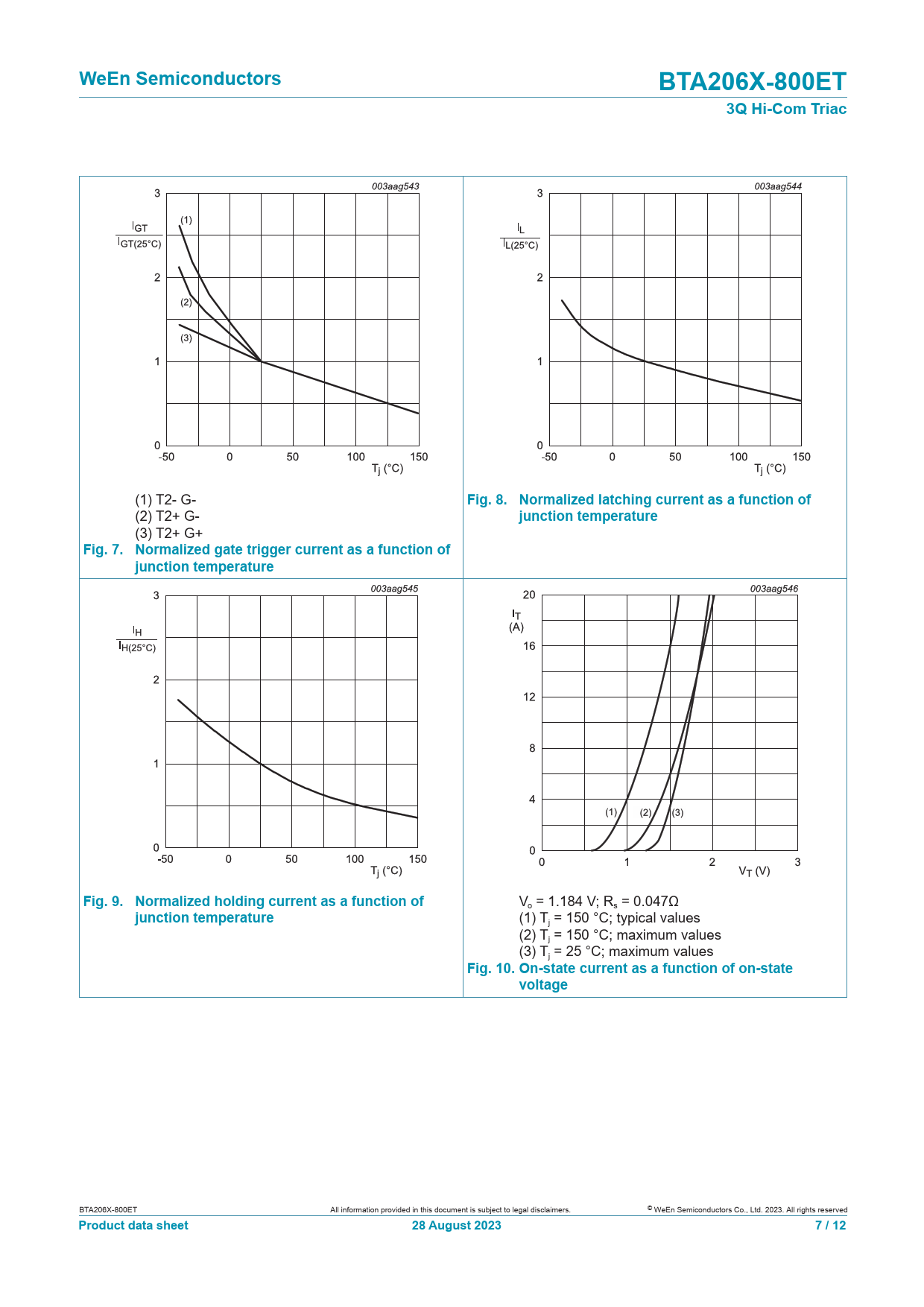

Fig. 8. Normalized latching current as a function of
(2) T2+ G-
junction temperature
(3) T2+ G+
Fig. 7. Normalized gate trigger current as a function of junction temperature Fig. 9. Normalized holding current as a function of
Vo = 1.184 V; Rs = 0.047Ω
junction temperature
(1) Tj = 150 °C; typical values (2) Tj = 150 °C; maximum values (3) Tj = 25 °C; maximum values
Fig. 10. On-state current as a function of on-state voltage
BTA206X-800ET All information provided in this document is subject to legal disclaimers. © WeEn Semiconductors Co., Ltd. 2023. All rights reserved
Product data sheet 28 August 2023 7 / 12
