here. MAX6173–MAX6177. High-Precision Voltage References with. Temperature Sensor. General Description. Benefits and Features
Model Line for this Datasheet
Text Version of Document
Click
here
for production status of specific part numbers.

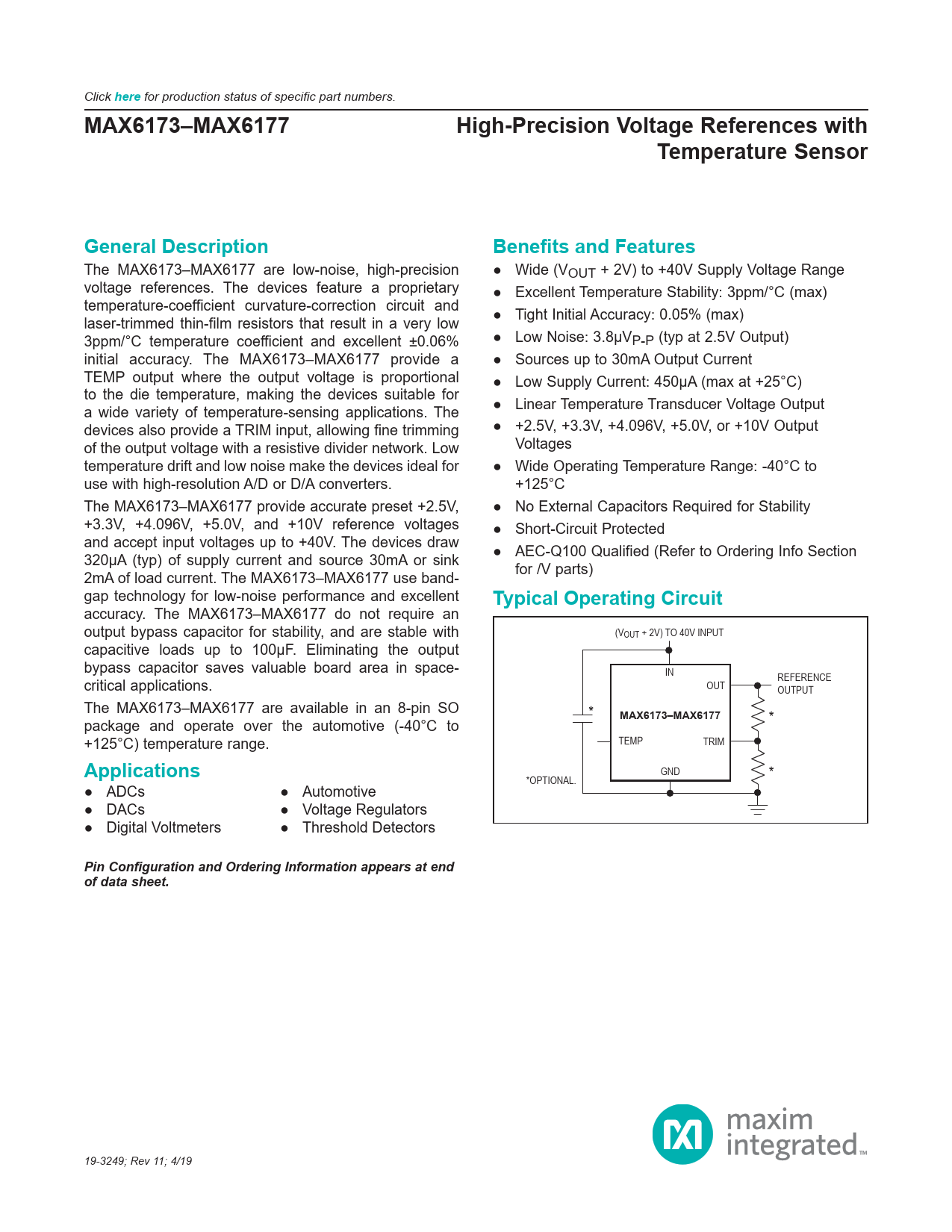

MAX6173–MAX6177 High-Precision Voltage References with Temperature Sensor General Description Benefits and Features
The MAX6173–MAX6177 are low-noise, high-precision ● Wide (VOUT + 2V) to +40V Supply Voltage Range voltage references. The devices feature a proprietary ● Excellent Temperature Stability: 3ppm/°C (max) temperature-coefficient curvature-correction circuit and laser-trimmed thin-film resistors that result in a very low ● Tight Initial Accuracy: 0.05% (max) 3ppm/°C temperature coefficient and excellent ±0.06% ● Low Noise: 3.8μVP-P (typ at 2.5V Output) initial accuracy. The MAX6173–MAX6177 provide a ● Sources up to 30mA Output Current TEMP output where the output voltage is proportional ● Low Supply Current: 450μA (max at +25°C) to the die temperature, making the devices suitable for a wide variety of temperature-sensing applications. The ● Linear Temperature Transducer Voltage Output devices also provide a TRIM input, allowing fine trimming ● +2.5V, +3.3V, +4.096V, +5.0V, or +10V Output of the output voltage with a resistive divider network. Low Voltages temperature drift and low noise make the devices ideal for ● Wide Operating Temperature Range: -40°C to use with high-resolution A/D or D/A converters. +125°C The MAX6173–MAX6177 provide accurate preset +2.5V, ● No External Capacitors Required for Stability +3.3V, +4.096V, +5.0V, and +10V reference voltages ● Short-Circuit Protected and accept input voltages up to +40V. The devices draw 320μA (typ) of supply current and source 30mA or sink ● AEC-Q100 Qualified (Refer to Ordering Info Section 2mA of load current. The MAX6173–MAX6177 use band- for /V parts) gap technology for low-noise performance and excellent
Typical Operating Circuit
accuracy. The MAX6173–MAX6177 do not require an output bypass capacitor for stability, and are stable with (VOUT + 2V) TO 40V INPUT capacitive loads up to 100μF. Eliminating the output bypass capacitor saves valuable board area in space- IN critical applications. REFERENCE OUT OUTPUT The MAX6173–MAX6177 are available in an 8-pin SO * package and operate over the automotive (-40°C to
MAX6173–MAX6177
* +125°C) temperature range. TEMP TRIM
Applications
GND * *OPTIONAL. ● ADCs ● Automotive ● DACs ● Voltage Regulators ● Digital Voltmeters ● Threshold Detectors
Pin Configuration and Ordering Information appears at end of data sheet.
