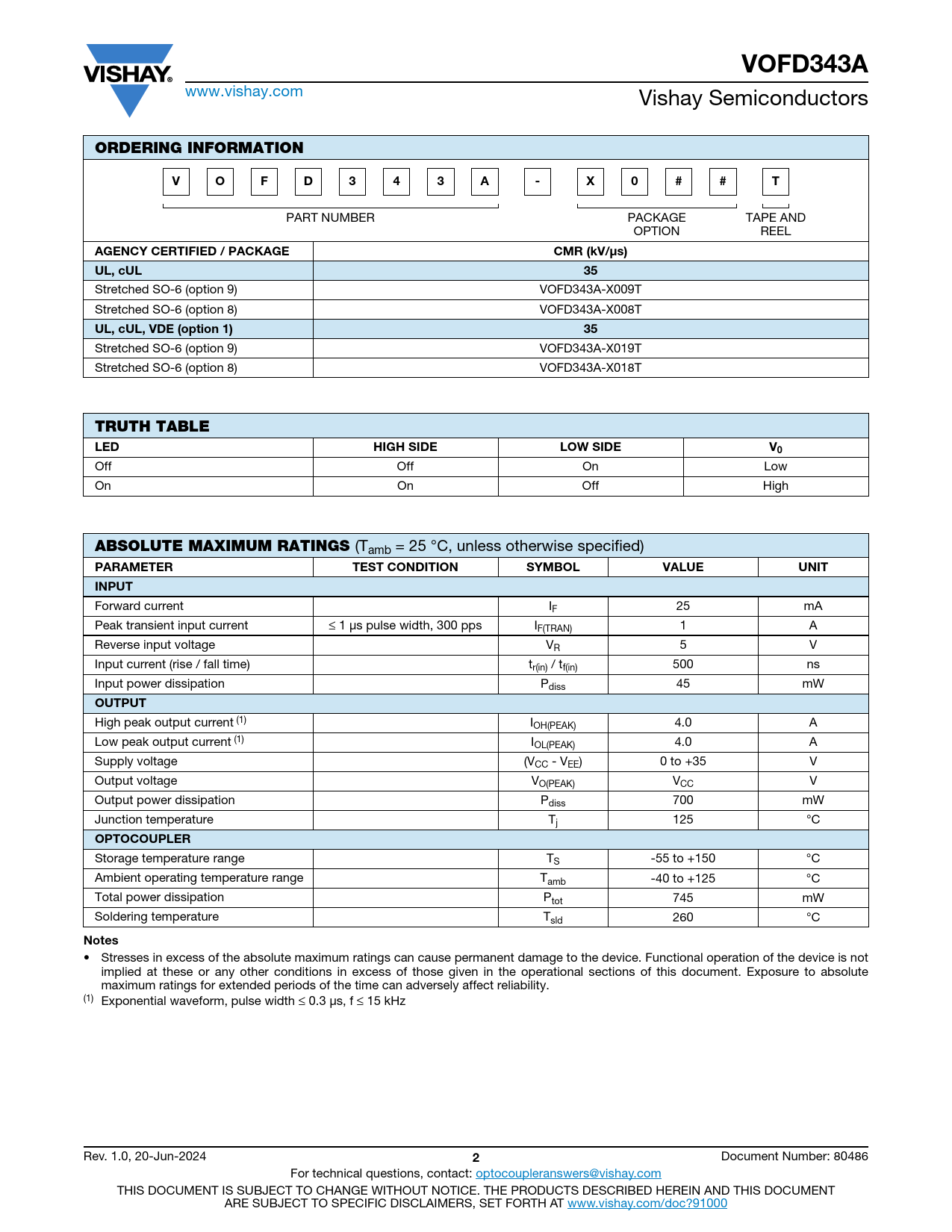

VOFD343A
www.vishay.com Vishay Semiconductors
ORDERING INFORMATION V O F D 3 4 3 A - X 0 # # T
PART NUMBER PACKAGE TAPE AND OPTION REEL
AGENCY CERTIFIED / PACKAGE CMR (kV/μs) UL, cUL 35
Stretched SO-6 (option 9) VOFD343A-X009T Stretched SO-6 (option 8) VOFD343A-X008T
UL, cUL, VDE (option 1) 35
Stretched SO-6 (option 9) VOFD343A-X019T Stretched SO-6 (option 8) VOFD343A-X018T
TRUTH TABLE LED HIGH SIDE LOW SIDE V0
Off Off On Low On On Off High
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT INPUT
Forward current IF 25 mA Peak transient input current ≤ 1 μs pulse width, 300 pps IF(TRAN) 1 A Reverse input voltage VR 5 V Input current (rise / fall time) tr(in) / tf(in) 500 ns Input power dissipation Pdiss 45 mW
OUTPUT
High peak output current (1) IOH(PEAK) 4.0 A Low peak output current (1) IOL(PEAK) 4.0 A Supply voltage (VCC - VEE) 0 to +35 V Output voltage VO(PEAK) VCC V Output power dissipation Pdiss 700 mW Junction temperature Tj 125 °C
OPTOCOUPLER
Storage temperature range TS -55 to +150 °C Ambient operating temperature range Tamb -40 to +125 °C Total power dissipation Ptot 745 mW Soldering temperature Tsld 260 °C
Notes
• Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute maximum ratings for extended periods of the time can adversely affect reliability. (1) Exponential waveform, pulse width ≤ 0.3 μs, f ≤ 15 kHz Rev. 1.0, 20-Jun-2024
2
