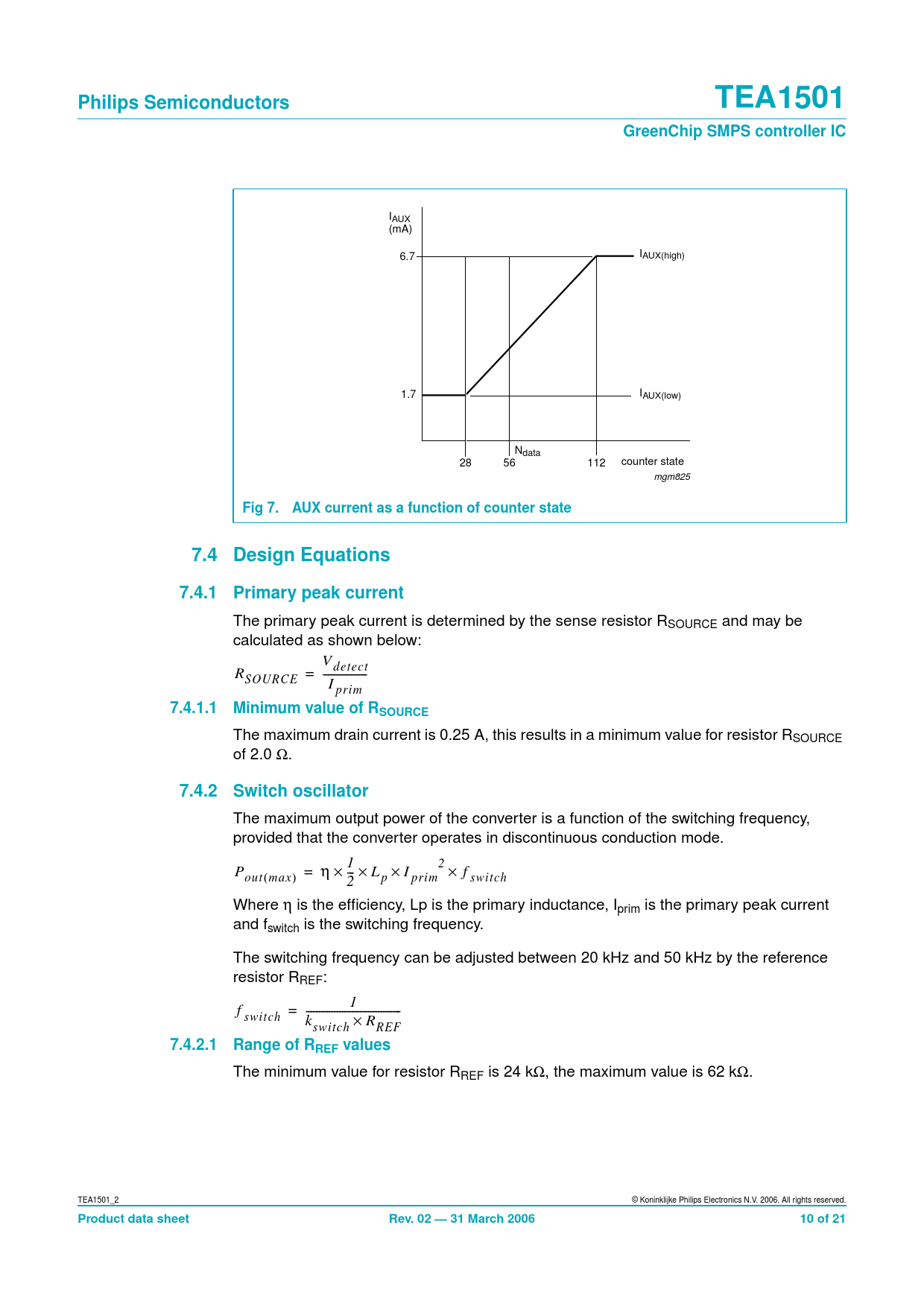

Philips Semiconductors TEA1501 GreenChip SMPS controller IC
IAUX (mA) I 6.7 AUX(high) 1.7 IAUX(low) Ndata 28 56 112 counter state mgm825
Fig 7. AUX current as a function of counter state 7.4 Design Equations 7.4.1 Primary peak current
The primary peak current is determined by the sense resistor RSOURCE and may be calculated as shown below: V detect R = --------- SOURCE I prim
7.4.1.1 Minimum value of RSOURCE
The maximum drain current is 0.25 A, this results in a minimum value for resistor RSOURCE of 2.0 Ω.
7.4.2 Switch oscillator
The maximum output power of the converter is a function of the switching frequency, provided that the converter operates in discontinuous conduction mode. 2 P = × - × L × I × f out (max) η 12 p prim switch Where η is the efficiency, Lp is the primary inductance, Iprim is the primary peak current and fswitch is the switching frequency. The switching frequency can be adjusted between 20 kHz and 50 kHz by the reference resistor RREF: 1 f = ------------------- switch k × R switch REF
7.4.2.1 Range of RREF values
The minimum value for resistor RREF is 24 kΩ, the maximum value is 62 kΩ. TEA1501_2 © Koninklijke Philips Electronics N.V. 2006. All rights reserved.
Product data sheet Rev. 02 — 31 March 2006 10 of 21
