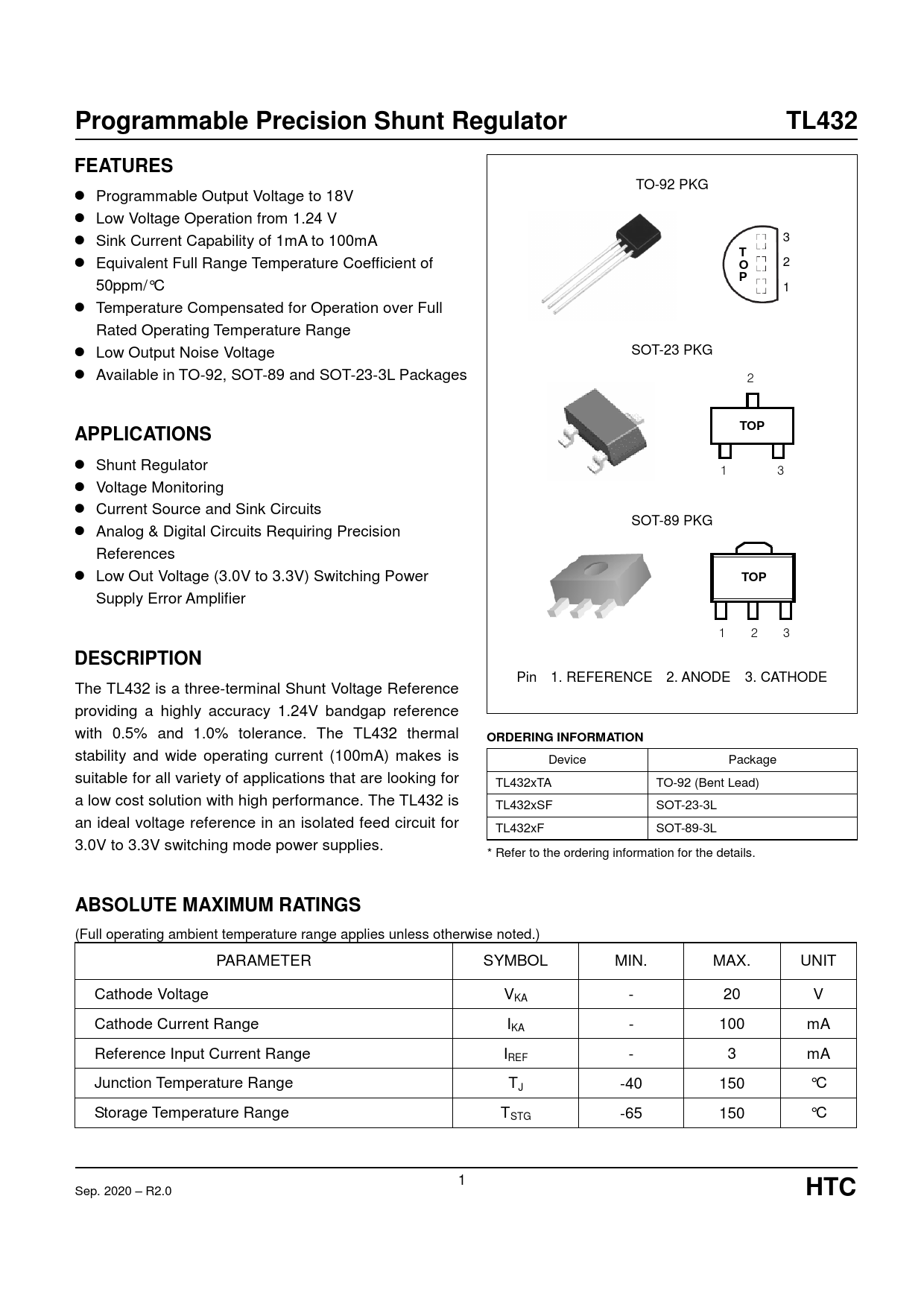

Programmable Precision Shunt Regulator TL432. FEATURES. O P. TOP. APPLICATIONS. DESCRIPTION. ORDERING INFORMATION
Model Line for this Datasheet
Text Version of Document
Programmable Precision Shunt Regulator TL432 FEATURES
TO-92 PKG Programmable Output Voltage to 18V Low Voltage Operation from 1.24 V Sink Current Capability of 1mA to 100mA 3
T
Equivalent Full Range Temperature Coefficient of 2
O P
50ppm/°C 1 Temperature Compensated for Operation over Full Rated Operating Temperature Range Low Output Noise Voltage SOT-23 PKG Available in TO-92, SOT-89 and SOT-23-3L Packages 2
TOP APPLICATIONS
Shunt Regulator 1 3 Voltage Monitoring Current Source and Sink Circuits SOT-89 PKG Analog & Digital Circuits Requiring Precision References Low Out Voltage (3.0V to 3.3V) Switching Power
TOP
Supply Error Amplifier 1 2 3
DESCRIPTION
Pin 1. REFERENCE 2. ANODE 3. CATHODE The TL432 is a three-terminal Shunt Voltage Reference providing a highly accuracy 1.24V bandgap reference with 0.5% and 1.0% tolerance. The TL432 thermal
ORDERING INFORMATION
stability and wide operating current (100mA) makes is Device Package suitable for all variety of applications that are looking for TL432xTA TO-92 (Bent Lead) a low cost solution with high performance. The TL432 is TL432xSF SOT-23-3L an ideal voltage reference in an isolated feed circuit for TL432xF SOT-89-3L 3.0V to 3.3V switching mode power supplies. * Refer to the ordering information for the details.
ABSOLUTE MAXIMUM RATINGS
(Full operating ambient temperature range applies unless otherwise noted.) PARAMETER SYMBOL MIN. MAX. UNIT Cathode Voltage VKA - 20 V Cathode Current Range IKA - 100 mA Reference Input Current Range IREF - 3 mA Junction Temperature Range TJ -40 150 °C Storage Temperature Range TSTG -65 150 °C 1 Sep. 2020 – R2.0
