Datasheet TL432 (TAEJIN Technology (HTC Korea)) - 4
| Manufacturer | TAEJIN Technology (HTC Korea) |
| Description | Programmable Precision Shunt Regulator |
| Pages / Page | 8 / 4 — Programmable Precision Shunt Regulator TL432. BLOCK DIAGRAM. EQUIVALENT … |
| File Format / Size | PDF / 541 Kb |
| Document Language | English |

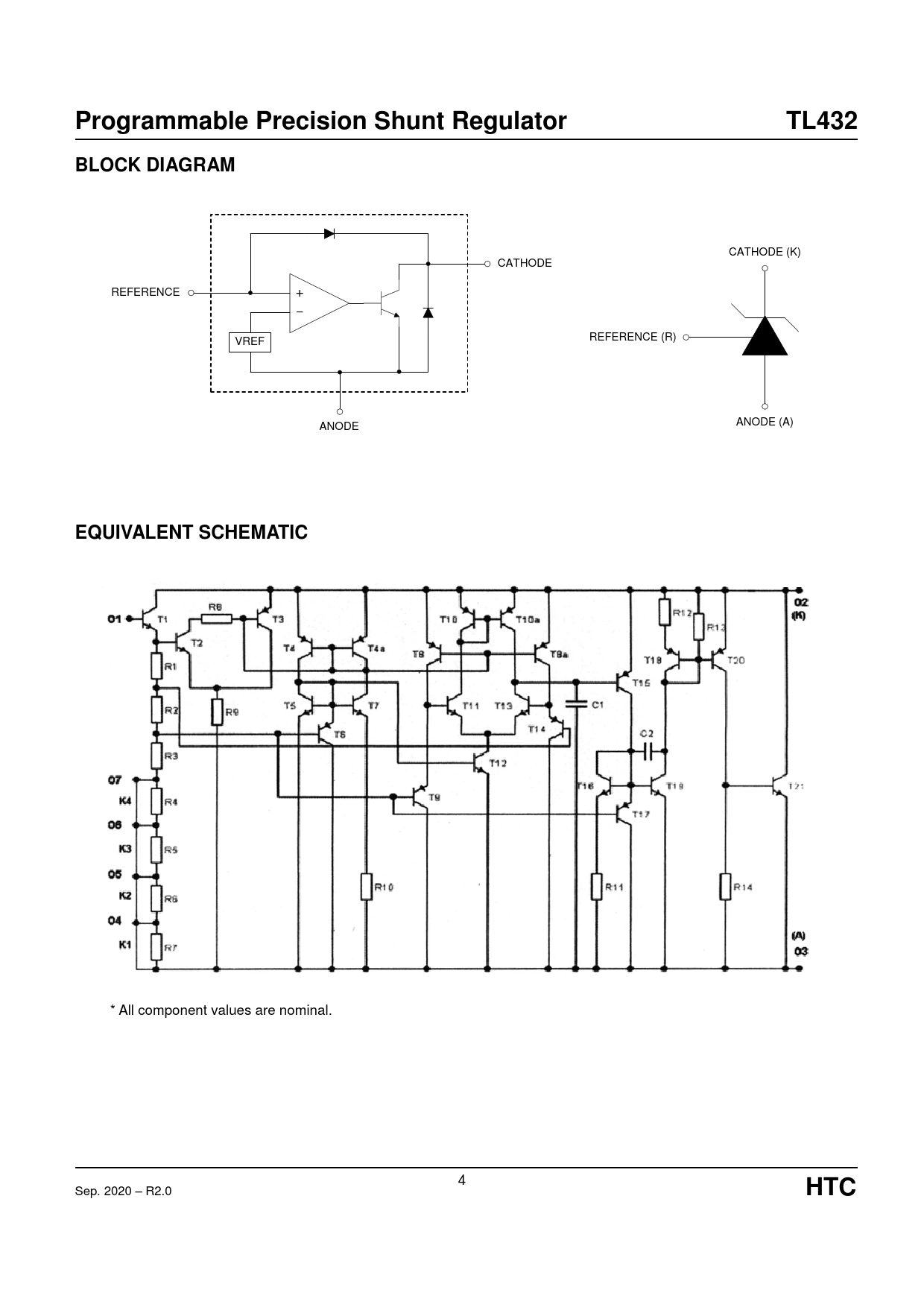

Programmable Precision Shunt Regulator TL432. BLOCK DIAGRAM. EQUIVALENT SCHEMATIC. HTC
Model Line for this Datasheet
Text Version of Document
Programmable Precision Shunt Regulator TL432 BLOCK DIAGRAM
CATHODE (K) CATHODE REFERENCE + – VREF REFERENCE (R) ANODE ANODE (A)
EQUIVALENT SCHEMATIC
* All component values are nominal. 4 Sep. 2020 – R2.0
HTC
CATHODE (K) CATHODE REFERENCE + – VREF REFERENCE (R) ANODE ANODE (A)
EQUIVALENT SCHEMATIC
* All component values are nominal. 4 Sep. 2020 – R2.0
