Datasheet ASR418S2 (Abracon) - 3
| Manufacturer | Abracon |
| Description | Saw resonator 418 MHz SMD |
| Pages / Page | 3 / 3 — SMD ONE PORT SAW RESONATOR. ASR418S2. Pb RoHS. Compliant. 5.0 x 3.5 x … |
| File Format / Size | PDF / 1.4 Mb |
| Document Language | English |
SMD ONE PORT SAW RESONATOR. ASR418S2. Pb RoHS. Compliant. 5.0 x 3.5 x 1.4mm. TAPE & REEL: 1000pcs/reel. Dimensions: mm
Model Line for this Datasheet
Text Version of Document

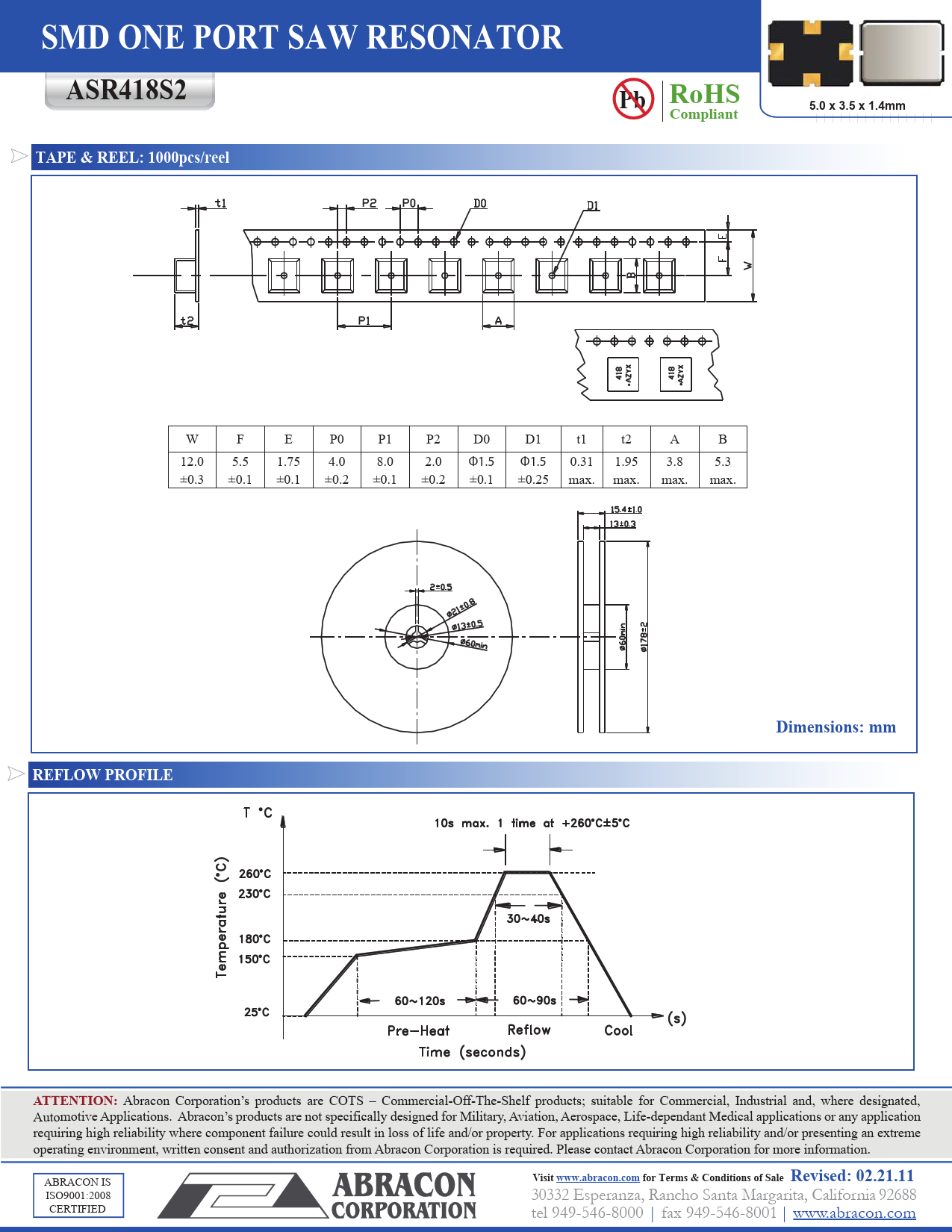

SMD ONE PORT SAW RESONATOR ASR418S2 Pb RoHS Compliant 5.0 x 3.5 x 1.4mm
| | | | | | | | | | | | | | |
TAPE & REEL: 1000pcs/reel
W F E P0 P1 P2 D0 D1 t1 t2 A B 12.0 5.5 1.75 4.0 8.0 2.0 Φ1.5 Φ1.5 0.31 1.95 3.8 5.3 ±0.3 ±0.1 ±0.1 ±0.2 ±0.1 ±0.2 ±0.1 ±0.25 max. max. max. max.
Dimensions: mm REFLOW PROFILE ATTENTION:
