LM317L — Physical Dimensions
TO-92 Tape and Reel Type
3-T e rminal 0.1A Positiv e Adjust able Regulator
D

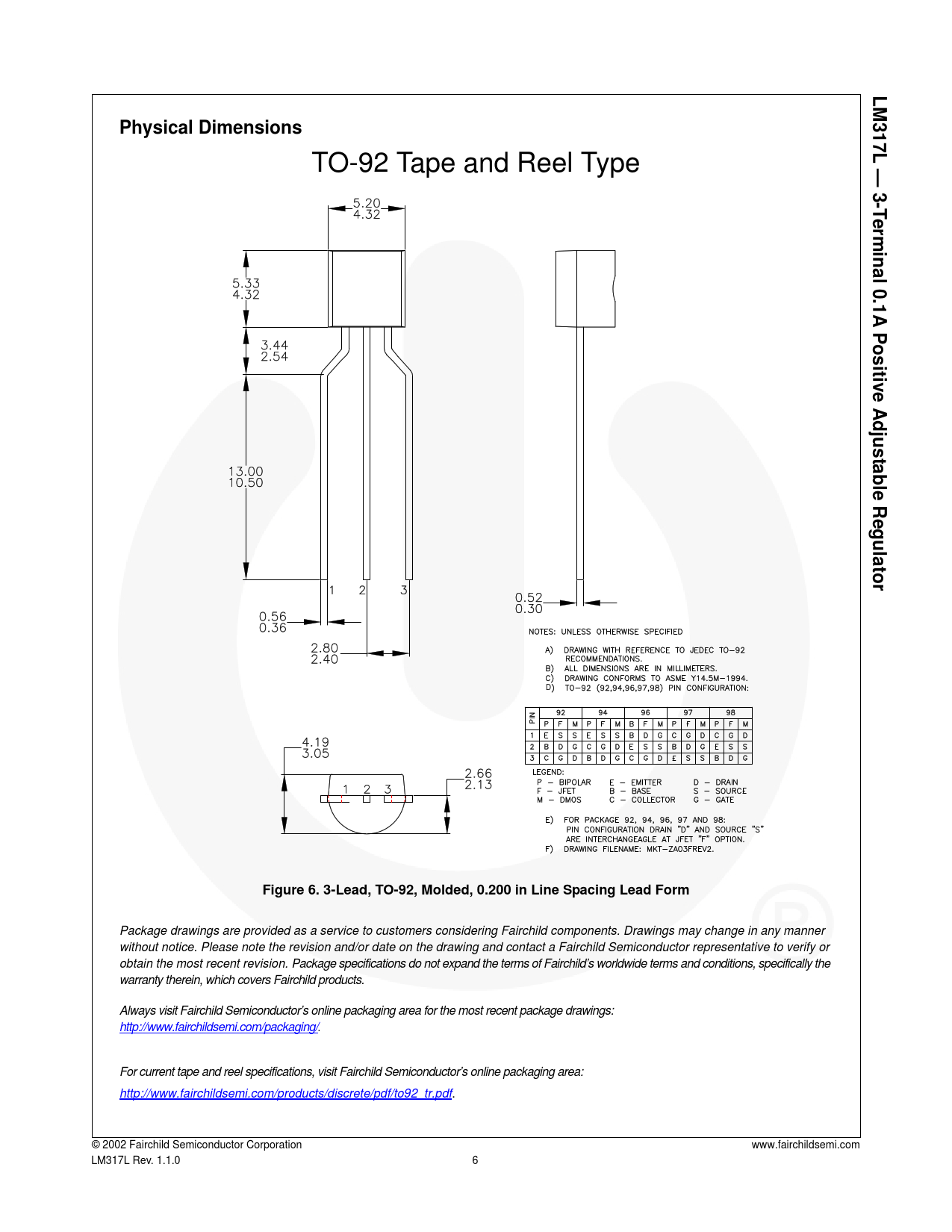

Figure 6. 3-Lead, TO-92, Molded, 0.200 in Line Spacing Lead Form
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the warranty therein, which covers Fairchild products. Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings: http://www.fairchildsemi.com/packaging/. For current tape and reel specifications, visit Fairchild Semiconductor’s online packaging area: http://www.fairchildsemi.com/products/discrete/pdf/to92_tr.pdf. © 2002 Fairchild Semiconductor Corporation www.fairchildsemi.com LM317L Rev. 1.1.0 6
