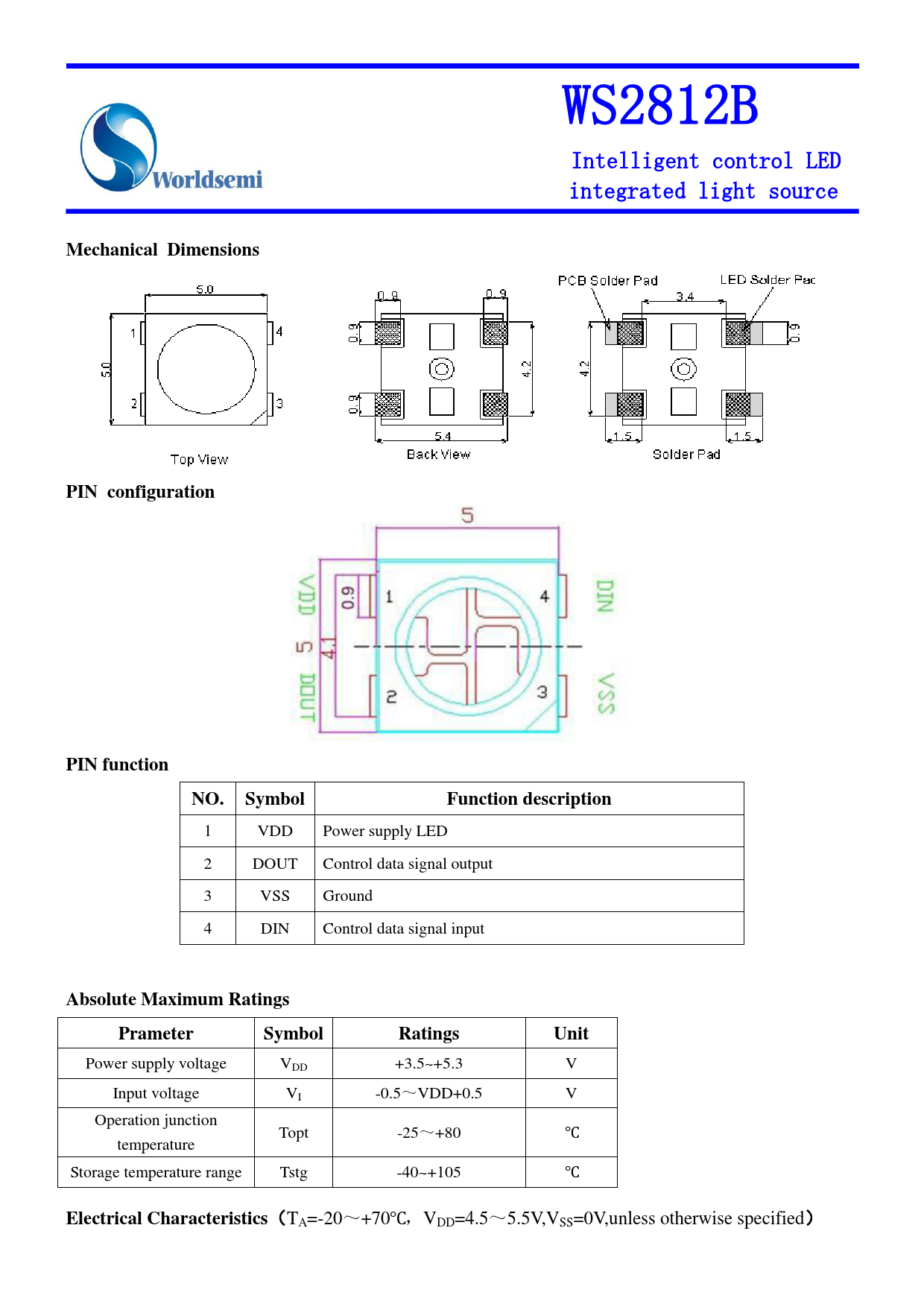

WS2812B Intelligent control LED integrated light source
Mechanical Dimensions PIN configuration PIN function NO. Symbol Function description
1 VDD Power supply LED 2 DOUT Control data signal output 3 VSS Ground 4 DIN Control data signal input
Absolute Maximum Ratings Prameter Symbol Ratings Unit
Power supply voltage VDD +3.5~+5.3 V Input voltage VI -0.5～VDD+0.5 V Operation junction Topt -25～+80 ℃ temperature Storage temperature range Tstg -40~+105 ℃
Electrical Characteristics
（TA=-20～+70℃，VDD=4.5～5.5V,VSS=0V,unless otherwise specified）
Mechanical Dimensions PIN configuration PIN function NO. Symbol Function description
1 VDD Power supply LED 2 DOUT Control data signal output 3 VSS Ground 4 DIN Control data signal input
Absolute Maximum Ratings Prameter Symbol Ratings Unit
Power supply voltage VDD +3.5~+5.3 V Input voltage VI -0.5～VDD+0.5 V Operation junction Topt -25～+80 ℃ temperature Storage temperature range Tstg -40~+105 ℃
Electrical Characteristics
（TA=-20～+70℃，VDD=4.5～5.5V,VSS=0V,unless otherwise specified）
