| Description | Intelligent control LED integrated light source |
| Pages / Page | 5 / 5 — Composition of 24bit data:. Typical application circuit: |
| File Format / Size | PDF / 355 Kb |
| Document Language | English |
Composition of 24bit data:. Typical application circuit:
Text Version of Document

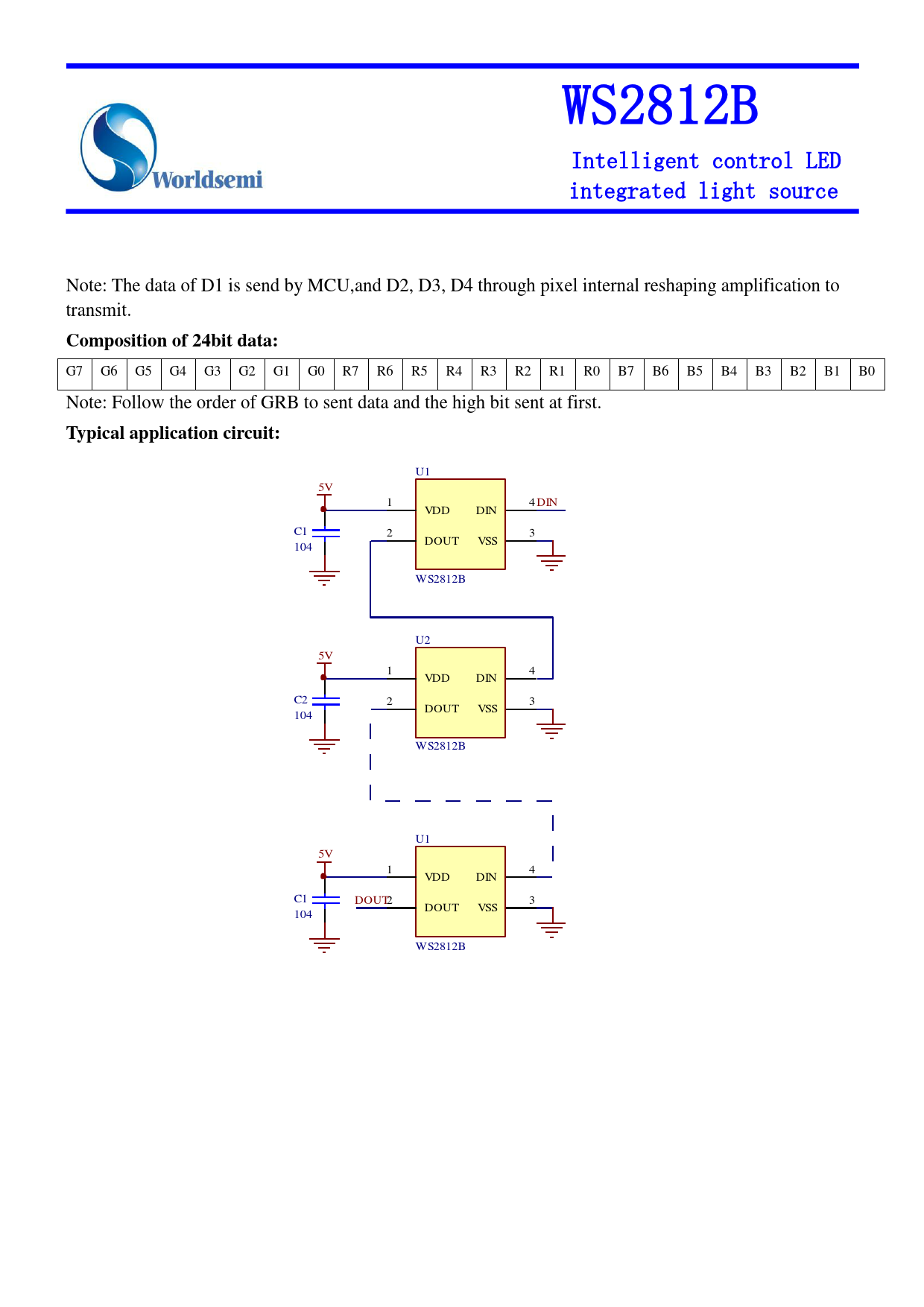

1 2 3 4 5 6 D D WS2812B Intelligent control LED integrated light source Note: The data of D1 is send by MCU,and D2, D3, D4 through pixel internal reshaping amplification to transmit.
Composition of 24bit data:
G7 G6 G5 G4 G3 G2 G1 G0 R7 R6 R5 R4 R3 R2 R1 R0 B7 B6 B5 B4 B3 B2 B1 B0 Note: Follow the order of GRB to sent data and the high bit sent at first. C C
Typical application circuit:
U1 5V 1 4 DIN VDD DIN C1 2 3 DOUT VSS 104 WS2812B U2 5V 1 4 VDD DIN C2 2 3 DOUT VSS 104 WS2812B B B U1 5V 1 4 VDD DIN C1 2 DOUT 3 DOUT VSS 104 WS2812B A A Ti tl e Si ze Number Rev isi on B Dat e: 9-Apr-2013 Sheet of Fi le: E: \芯片资料\WS281 2\WS281 2B\原理图.Ddb Drawn By : 1 2 3 4 5 6
Composition of 24bit data:
G7 G6 G5 G4 G3 G2 G1 G0 R7 R6 R5 R4 R3 R2 R1 R0 B7 B6 B5 B4 B3 B2 B1 B0 Note: Follow the order of GRB to sent data and the high bit sent at first. C C
Typical application circuit:
U1 5V 1 4 DIN VDD DIN C1 2 3 DOUT VSS 104 WS2812B U2 5V 1 4 VDD DIN C2 2 3 DOUT VSS 104 WS2812B B B U1 5V 1 4 VDD DIN C1 2 DOUT 3 DOUT VSS 104 WS2812B A A Ti tl e Si ze Number Rev isi on B Dat e: 9-Apr-2013 Sheet of Fi le: E: \芯片资料\WS281 2\WS281 2B\原理图.Ddb Drawn By : 1 2 3 4 5 6
