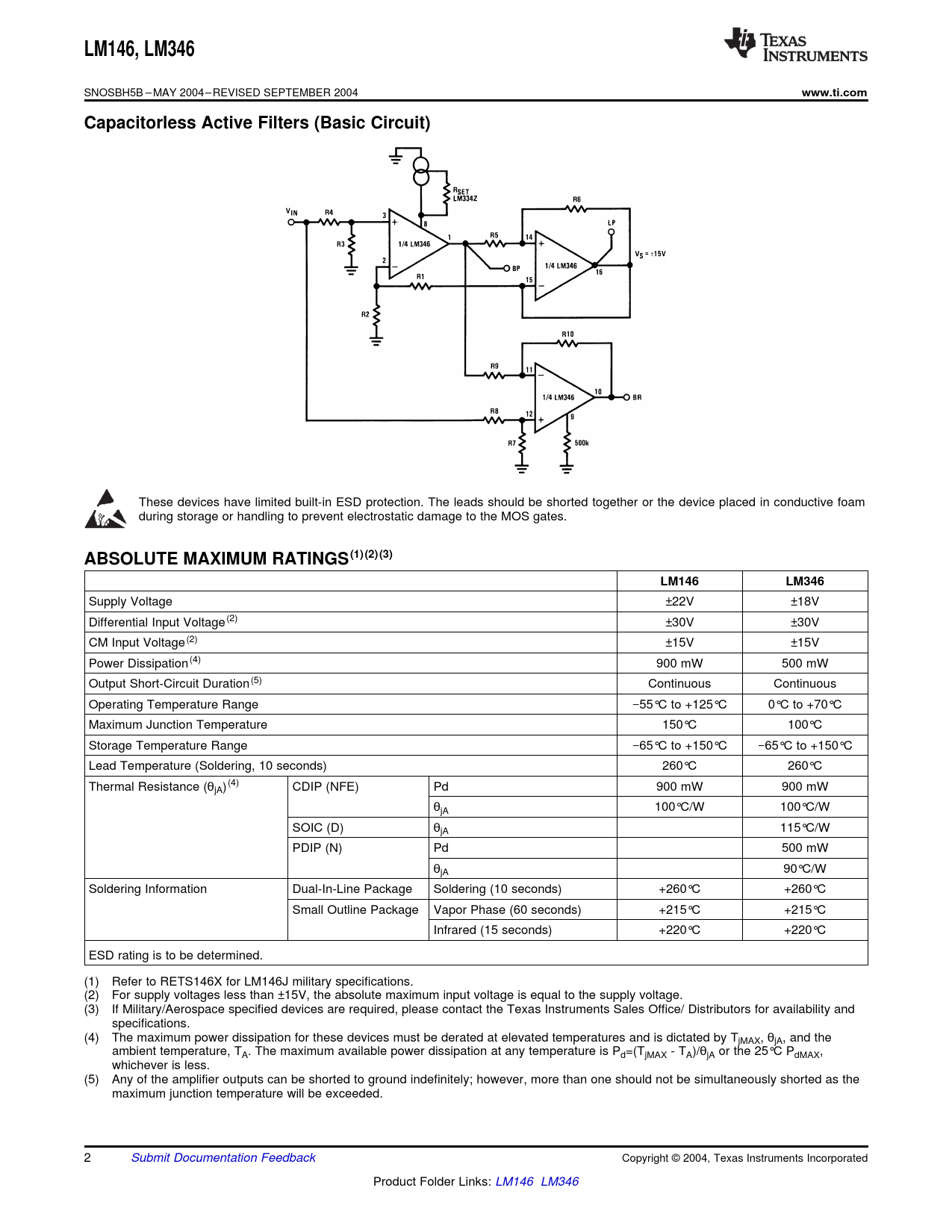

LM146,. LM346. www.ti.com. Capacitorless Active Filters (Basic Circuit). ABSOLUTE MAXIMUM RATINGS(1)(2)(3). LM146
Model Line for this Datasheet
Text Version of Document
LM146, LM346
SNOSBH5B – MAY 2004 – REVISED SEPTEMBER 2004
www.ti.com Capacitorless Active Filters (Basic Circuit)
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
ABSOLUTE MAXIMUM RATINGS(1)(2)(3) LM146 LM346
Supply Voltage ±22V ±18V Differential Input Voltage(2) ±30V ±30V CM Input Voltage(2) ±15V ±15V Power Dissipation(4) 900 mW 500 mW Output Short-Circuit Duration(5) Continuous Continuous Operating Temperature Range −55°C to +125°C 0°C to +70°C Maximum Junction Temperature 150°C 100°C Storage Temperature Range −65°C to +150°C −65°C to +150°C Lead Temperature (Soldering, 10 seconds) 260°C 260°C Thermal Resistance (θjA)(4) CDIP (NFE) Pd 900 mW 900 mW θjA 100°C/W 100°C/W SOIC (D) θjA 115°C/W PDIP (N) Pd 500 mW θjA 90°C/W Soldering Information Dual-In-Line Package Soldering (10 seconds) +260°C +260°C Small Outline Package Vapor Phase (60 seconds) +215°C +215°C Infrared (15 seconds) +220°C +220°C ESD rating is to be determined. (1) Refer to RETS146X for LM146J military specifications. (2) For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply voltage. (3) If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/ Distributors for availability and specifications. (4) The maximum power dissipation for these devices must be derated at elevated temperatures and is dictated by TjMAX, θjA, and the ambient temperature, TA. The maximum available power dissipation at any temperature is Pd=(TjMAX - TA)/θjA or the 25°C PdMAX, whichever is less. (5) Any of the amplifier outputs can be shorted to ground indefinitely; however, more than one should not be simultaneously shorted as the maximum junction temperature will be exceeded. 2 Submit Documentation Feedback Copyright © 2004, Texas Instruments Incorporated Product Folder Links: LM146 LM346 Document Outline FEATURES DESCRIPTION Connection Diagram Capacitorless Active Filters (Basic Circuit) ABSOLUTE MAXIMUM RATINGS DC ELECTRICAL CHARACTERISTICS DC ELECTRICAL CHARACTERISTIC DC ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION HINTS COMMON-MODE INPUT VOLTAGE OUTPUT VOLTAGE SWING VS ISET INPUT CAPACITANCE TEMPERATURE EFFECT ON THE GBW ISOLATION BETWEEN AMPLIFIERS LM146 TYPICAL PERFORMANCE SUMMARY SPEED VS POWER CONSUMPTION Typical Applications Active Filters Applications Circuit Synthesis Equations Circuit Synthesis Equations Miscellaneous Applications Schematic Diagram
