TL074- TL074A - TL074B. TL074I,M,AC,AI,AM,. TL074C. Symbol. Parameter. BC,BI,BM. Unit. Min. Typ. Max
Text Version of Document

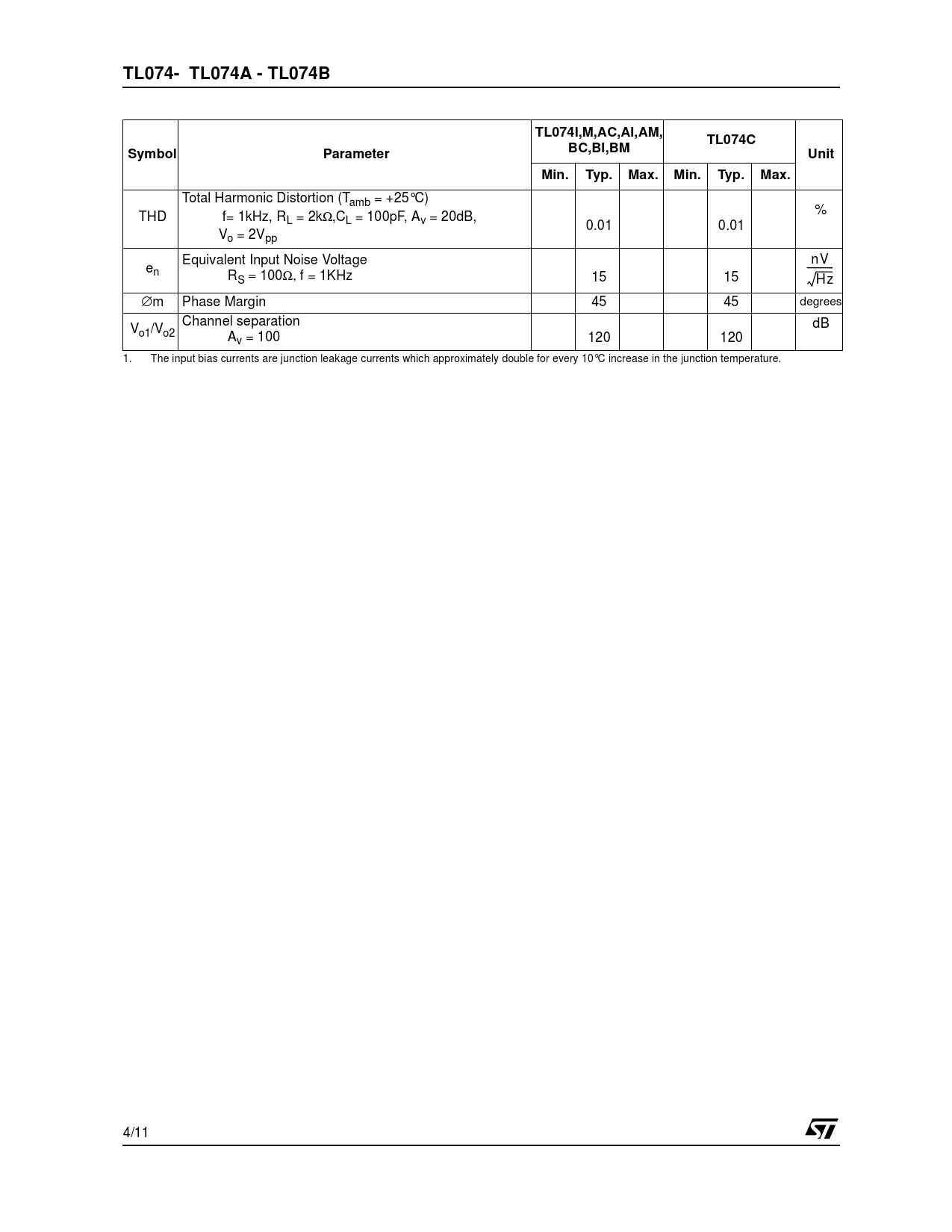

TL074- TL074A - TL074B TL074I,M,AC,AI,AM, TL074C Symbol Parameter BC,BI,BM Unit Min. Typ. Max. Min. Typ. Max.
Total Harmonic Distortion (Tamb = +25°C) % THD f= 1kHz, RL = 2kΩ,CL = 100pF, Av = 20dB, 0.01 0.01 Vo = 2Vpp Equivalent Input Noise Voltage nV en ------ RS = 100Ω, f = 1KHz 15 15 Hz ∅m Phase Margin 45 45 degrees Channel separation V dB o1/Vo2 Av = 100 120 120 1. The input bias currents are junction leakage currents which approximately double for every 10°C increase in the junction temperature. 4/11
