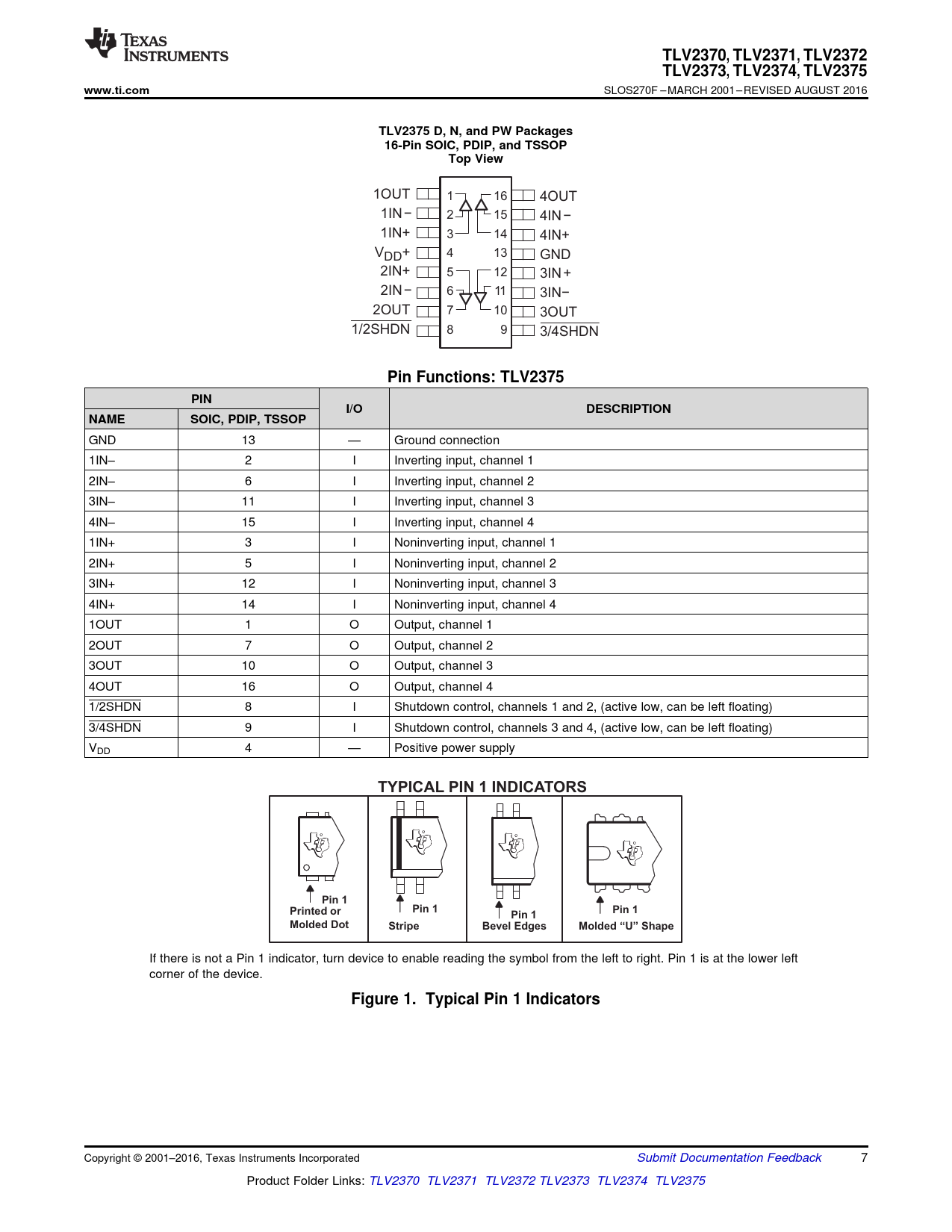

TLV2370,. TLV2371. , TLV2372. TLV2373,. TLV2374. , TLV2375. www.ti.com. TLV2375 D, N, and PW Packages. 16-Pin SOIC, PDIP, and TSSOP
Text Version of Document
TLV2370, TLV2371 , TLV2372 TLV2373, TLV2374 , TLV2375 www.ti.com
SLOS270F – MARCH 2001 – REVISED AUGUST 2016
TLV2375 D, N, and PW Packages 16-Pin SOIC, PDIP, and TSSOP Top View
1OUT 1 16 4OUT 1IN − 2 15 4IN − 1IN+ 3 14 4IN+ V 4 13 DD+ GND 2IN+ 5 12 3IN + 2IN − 6 11 3IN− 2OUT 7 10 3OUT 1/2SHDN 8 9 3/4SHDN
Pin Functions: TLV2375 PIN I/O DESCRIPTION NAME SOIC, PDIP, TSSOP
GND 13 — Ground connection 1IN– 2 I Inverting input, channel 1 2IN– 6 I Inverting input, channel 2 3IN– 11 I Inverting input, channel 3 4IN– 15 I Inverting input, channel 4 1IN+ 3 I Noninverting input, channel 1 2IN+ 5 I Noninverting input, channel 2 3IN+ 12 I Noninverting input, channel 3 4IN+ 14 I Noninverting input, channel 4 1OUT 1 O Output, channel 1 2OUT 7 O Output, channel 2 3OUT 10 O Output, channel 3 4OUT 16 O Output, channel 4 1/2SHDN 8 I Shutdown control, channels 1 and 2, (active low, can be left floating) 3/4SHDN 9 I Shutdown control, channels 3 and 4, (active low, can be left floating) VDD 4 — Positive power supply
TYPICAL PIN 1 INDICATORS Pin 1 Printed or Pin 1 Pin 1 Pin 1 Molded Dot Stripe Bevel Edges Molded “U” Shape
If there is not a Pin 1 indicator, turn device to enable reading the symbol from the left to right. Pin 1 is at the lower left corner of the device.
Figure 1. Typical Pin 1 Indicators
