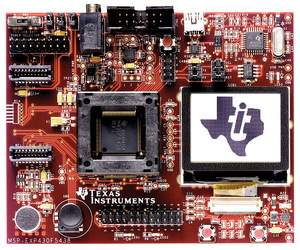

Experimenter Board Texas Instruments MSP-EXP430F5438

Detailed Description

It features a 100-pin socket which supports the MSP430F5438 and other devices with similar pinout. The socket allows for quick upgrades to newer devices or quick applications changes. It is compatible with many TI low-power RF wireless evaluation modules such as the CC2520EMK. The Experimenter Board helps designers quickly learn and develop using the new F5xx MCUs, which provide the industry’s lowest active power consumption, more memory and leading integration for applications such as energy harvesting, wireless sensing and automatic metering infrastructure (AMI).

Features

• 100-pin socket for MSP430F5438
• Power Supply sources: USB, FET, 2×AA batteries
• Digital I/O Pins: 34
• Accessible analog inputs (12-bit ADC): 5
• PWM outputs: 12
• Flash Memory (MSP430F5438): 256KB
• RAM (MSP430F5438): 16KB
• Clock Speed (MSP430F5438): 18MHz
• Communication (MSP430F5438):
  • 4×UART/LIN/IrDA/SPI
  • 4×I2C/SPI
• 5-position joystick (up, down, left, right, push down)
• 2 push buttons
• 2 LEDs
• 138×110 grayscale, dot-matrix LCD
• 3-Axis Accelerometer (ADXL330)
• Microphone (Amplified by TLV2760)
• 3.5mm audio output jack (Features TPA301, 350mW Mono Audio Power Amplifier)
• Support for TI Low Power RF Wireless Evaluation Modules and eZ430-RF2500T. Currently supported modules:
  • CC1100/CC1101EMK – Sub-1GHz radio
  • CC2500EMK – 2.4 GHz radio
  • CC2420/CC2430EMK – 2.4 GHz 802.15.4 radio
  • CC2520/CC2530EMK – 2.4 GHz 802.15.4 radio
• USB connectivity for data transfer
• JTAG header for real-time, in-system programming

A TI Flash Emulation Tool, like the MSP-FET430UIF, is required to program and debug the MSP430 devices on the experimenter board.

What's Included

• MSP430F5438,16-Bit Ultra-Low-Power Microcontroller, 256KB Flash, 16KB RAM, 12 Bit ADC, 4 USCIs, 32-bit HW Multi

Other Names:

MSPEXP430F5438, MSP EXP430F5438
