Version 03.01, June 2018. Input and outputs. Front. Rear. Rohde & Schwarz
Text Version of Document

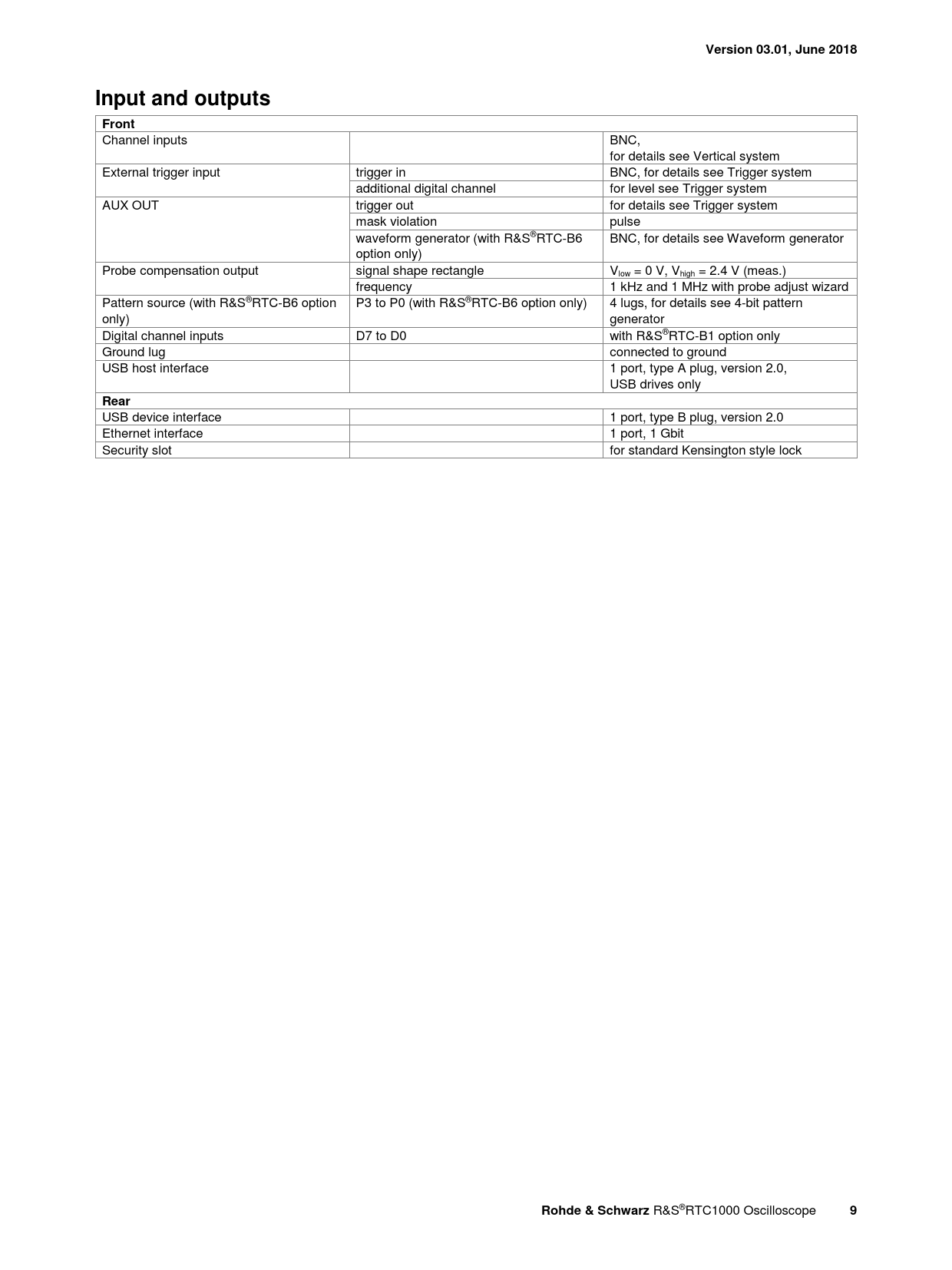

Version 03.01, June 2018 Input and outputs Front
Channel inputs BNC, for details see Vertical system External trigger input trigger in BNC, for details see Trigger system additional digital channel for level see Trigger system AUX OUT trigger out for details see Trigger system mask violation pulse waveform generator (with R&S®RTC-B6 BNC, for details see Waveform generator option only) Probe compensation output signal shape rectangle Vlow = 0 V, Vhigh = 2.4 V (meas.) frequency 1 kHz and 1 MHz with probe adjust wizard Pattern source (with R&S®RTC-B6 option P3 to P0 (with R&S®RTC-B6 option only) 4 lugs, for details see 4-bit pattern only) generator Digital channel inputs D7 to D0 with R&S®RTC-B1 option only Ground lug connected to ground USB host interface 1 port, type A plug, version 2.0, USB drives only
Rear
USB device interface 1 port, type B plug, version 2.0 Ethernet interface 1 port, 1 Gbit Security slot for standard Kensington style lock
Rohde & Schwarz
R&S®RTC1000 Oscilloscope
9
Channel inputs BNC, for details see Vertical system External trigger input trigger in BNC, for details see Trigger system additional digital channel for level see Trigger system AUX OUT trigger out for details see Trigger system mask violation pulse waveform generator (with R&S®RTC-B6 BNC, for details see Waveform generator option only) Probe compensation output signal shape rectangle Vlow = 0 V, Vhigh = 2.4 V (meas.) frequency 1 kHz and 1 MHz with probe adjust wizard Pattern source (with R&S®RTC-B6 option P3 to P0 (with R&S®RTC-B6 option only) 4 lugs, for details see 4-bit pattern only) generator Digital channel inputs D7 to D0 with R&S®RTC-B1 option only Ground lug connected to ground USB host interface 1 port, type A plug, version 2.0, USB drives only
Rear
USB device interface 1 port, type B plug, version 2.0 Ethernet interface 1 port, 1 Gbit Security slot for standard Kensington style lock
Rohde & Schwarz
R&S®RTC1000 Oscilloscope
9
