Version 05.00, February 2018. Waveform measurements. Digital voltmeter. Frequency counter. Rohde & Schwarz
Text Version of Document

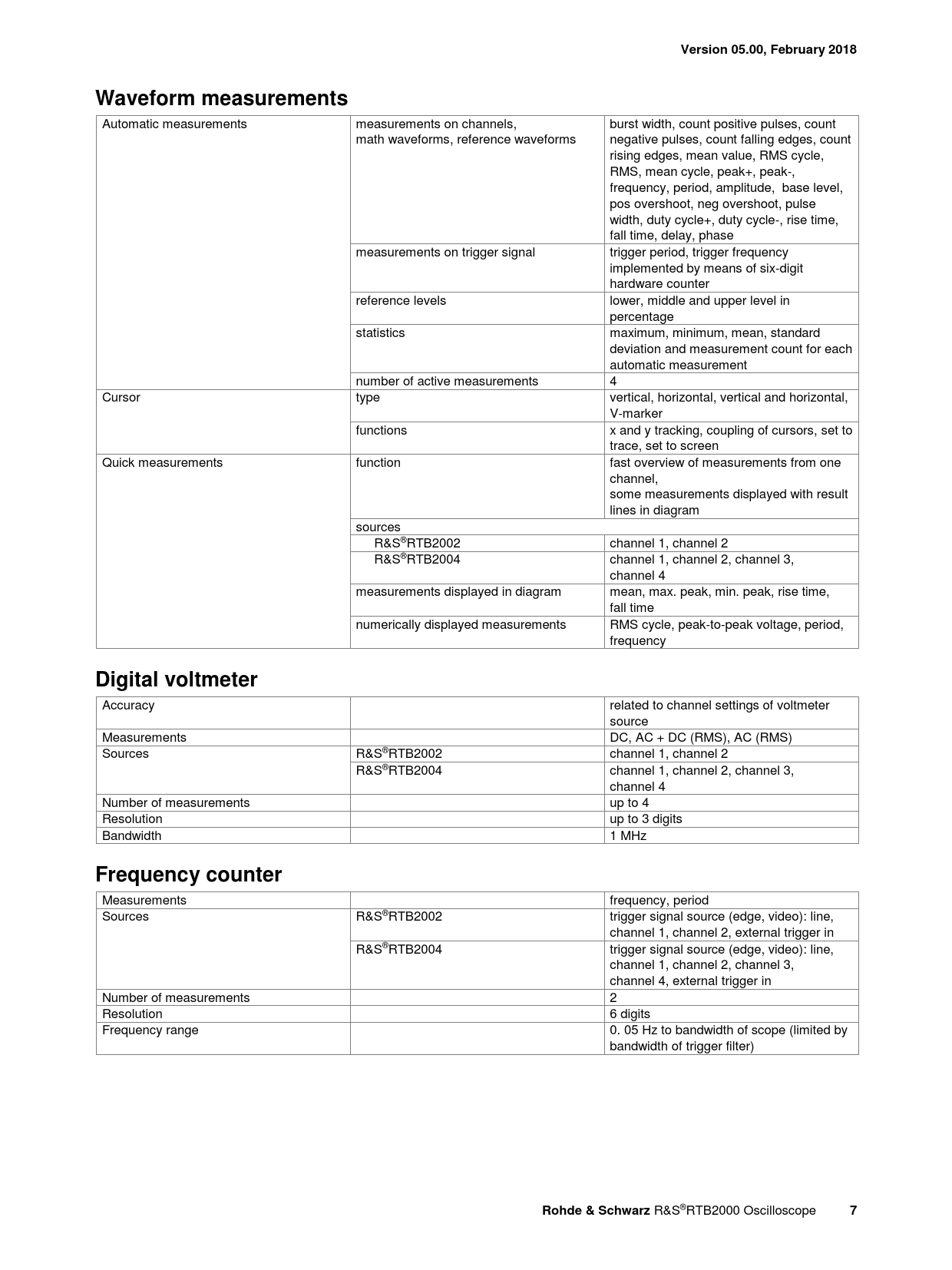

Version 05.00, February 2018 Waveform measurements
Automatic measurements measurements on channels, burst width, count positive pulses, count math waveforms, reference waveforms negative pulses, count falling edges, count rising edges, mean value, RMS cycle, RMS, mean cycle, peak+, peak-, frequency, period, amplitude, base level, pos overshoot, neg overshoot, pulse width, duty cycle+, duty cycle-, rise time, fall time, delay, phase measurements on trigger signal trigger period, trigger frequency implemented by means of six-digit hardware counter reference levels lower, middle and upper level in percentage statistics maximum, minimum, mean, standard deviation and measurement count for each automatic measurement number of active measurements 4 Cursor type vertical, horizontal, vertical and horizontal, V-marker functions x and y tracking, coupling of cursors, set to trace, set to screen Quick measurements function fast overview of measurements from one channel, some measurements displayed with result lines in diagram sources R&S®RTB2002 channel 1, channel 2 R&S®RTB2004 channel 1, channel 2, channel 3, channel 4 measurements displayed in diagram mean, max. peak, min. peak, rise time, fall time numerically displayed measurements RMS cycle, peak-to-peak voltage, period, frequency
Digital voltmeter
Accuracy related to channel settings of voltmeter source Measurements DC, AC + DC (RMS), AC (RMS) Sources R&S®RTB2002 channel 1, channel 2 R&S®RTB2004 channel 1, channel 2, channel 3, channel 4 Number of measurements up to 4 Resolution up to 3 digits Bandwidth 1 MHz
Frequency counter
Measurements frequency, period Sources R&S®RTB2002 trigger signal source (edge, video): line, channel 1, channel 2, external trigger in R&S®RTB2004 trigger signal source (edge, video): line, channel 1, channel 2, channel 3, channel 4, external trigger in Number of measurements 2 Resolution 6 digits Frequency range 0. 05 Hz to bandwidth of scope (limited by bandwidth of trigger filter)
Rohde & Schwarz
R&S®RTB2000 Oscilloscope
7
Automatic measurements measurements on channels, burst width, count positive pulses, count math waveforms, reference waveforms negative pulses, count falling edges, count rising edges, mean value, RMS cycle, RMS, mean cycle, peak+, peak-, frequency, period, amplitude, base level, pos overshoot, neg overshoot, pulse width, duty cycle+, duty cycle-, rise time, fall time, delay, phase measurements on trigger signal trigger period, trigger frequency implemented by means of six-digit hardware counter reference levels lower, middle and upper level in percentage statistics maximum, minimum, mean, standard deviation and measurement count for each automatic measurement number of active measurements 4 Cursor type vertical, horizontal, vertical and horizontal, V-marker functions x and y tracking, coupling of cursors, set to trace, set to screen Quick measurements function fast overview of measurements from one channel, some measurements displayed with result lines in diagram sources R&S®RTB2002 channel 1, channel 2 R&S®RTB2004 channel 1, channel 2, channel 3, channel 4 measurements displayed in diagram mean, max. peak, min. peak, rise time, fall time numerically displayed measurements RMS cycle, peak-to-peak voltage, period, frequency
Digital voltmeter
Accuracy related to channel settings of voltmeter source Measurements DC, AC + DC (RMS), AC (RMS) Sources R&S®RTB2002 channel 1, channel 2 R&S®RTB2004 channel 1, channel 2, channel 3, channel 4 Number of measurements up to 4 Resolution up to 3 digits Bandwidth 1 MHz
Frequency counter
Measurements frequency, period Sources R&S®RTB2002 trigger signal source (edge, video): line, channel 1, channel 2, external trigger in R&S®RTB2004 trigger signal source (edge, video): line, channel 1, channel 2, channel 3, channel 4, external trigger in Number of measurements 2 Resolution 6 digits Frequency range 0. 05 Hz to bandwidth of scope (limited by bandwidth of trigger filter)
Rohde & Schwarz
R&S®RTB2000 Oscilloscope
7
