See small signal details in the presence of large signals. Capture more time at full bandwidth
Text Version of Document

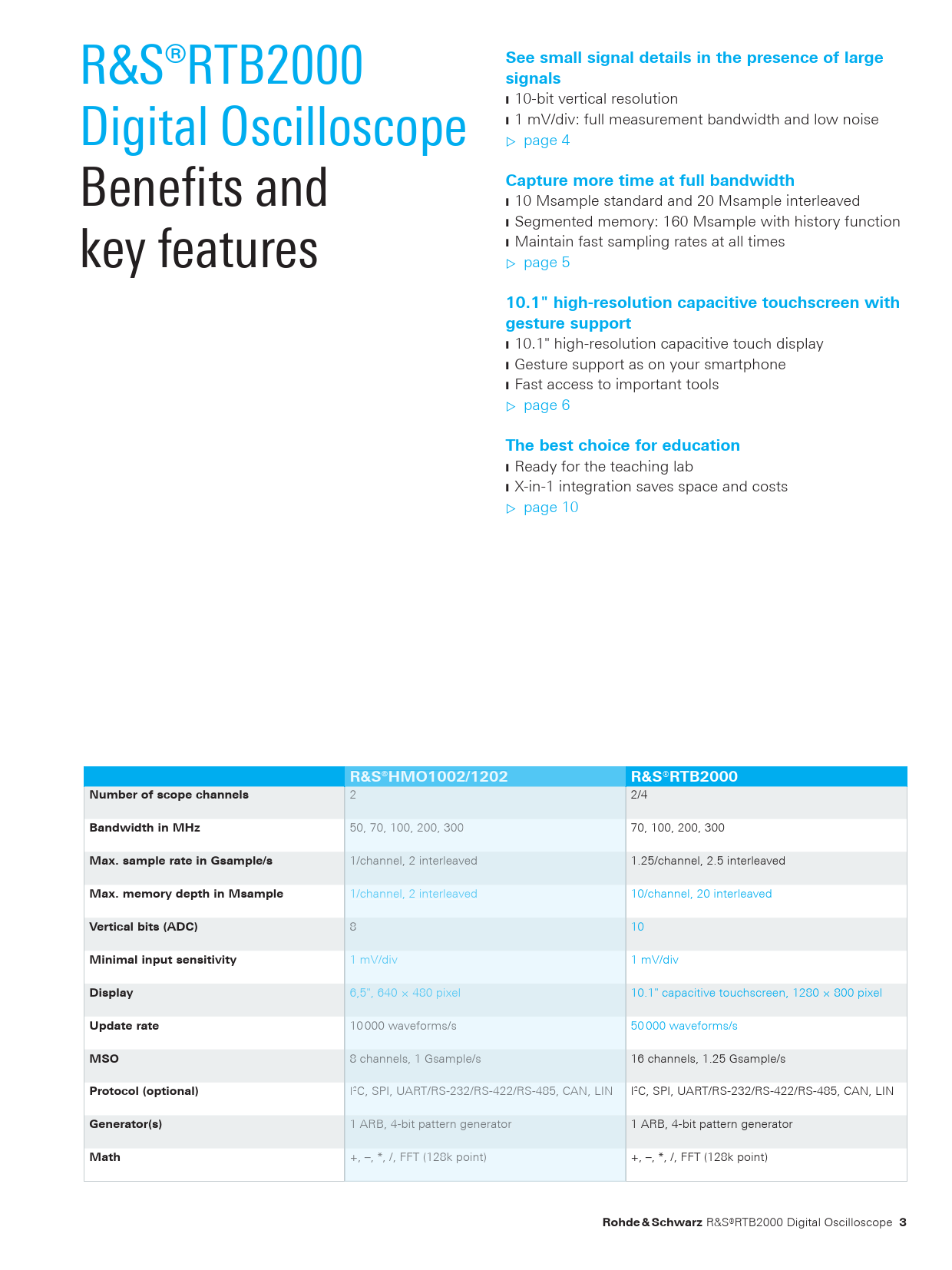

R&S®RTB2000
See small signal details in the presence of large signals
Digital Oscilloscope ❙10-bit vertical resolution ❙1 mV/div: full measurement bandwidth and low noise ▷ page 4 Benefits and
Capture more time at full bandwidth
❙10 Msample standard and 20 Msample interleaved key features ❙Segmented memory: 160 Msample with history function ❙Maintain fast sampling rates at all times ▷ page 5
10.1" high-resolution capacitive touchscreen with gesture support
❙10.1" high-resolution capacitive touch display ❙Gesture support as on your smartphone ❙Fast access to important tools ▷ page 6
The best choice for education
❙Ready for the teaching lab ❙X-in-1 integration saves space and costs ▷ page 10
R&S®HMO1002/1202 R&S
®
RTB2000 Number of scope channels
2 2/4
Bandwidth in MHz
50, 70, 100, 200, 300 70, 100, 200, 300
Max. sample rate in Gsample/s
1/channel, 2 interleav 1/channel, 2 interlea ed v 1.25/channel, 2.5 interleaved
Max. memory depth in Msample
1/channel, 2 interleav 1/channel, 2 interlea ed v 10/channel, 20 interleaved
Vertical bits (ADC)
8 10
Minimal input sensitivity
1 mV/div 1 mV/div
Display
6,5", 640 × 480 pixel 6,5", 640 × 480 pix 10.1" capacitive touchscreen, 1280 × 800 pixel
Update rate
10 000 w 10 a 000 w v a eforms/s v 50 000 waveforms/s
MSO
8 channels, 1 Gsample/s 16 channels, 1.25 Gsample/s
Protocol (optional)
I2 I C, SPI, U 2 AR C, SPI, U T/RS-232/RS-422/RS-485, C AR AN, LIN T/RS-232/RS-422/RS-485, C I2C, SPI, UART/RS-232/RS-422/RS-485, CAN, LIN
Generator(s)
1 ARB, 4-bit pattern generator 1 ARB, 4-bit pattern generator
Math
+, –, *, /, FFT (128k point) +, –, *, /, FFT (128k point)
Rohde & Schwarz
R&S®RTB2000 Digital Oscilloscope
3
RTB2000_bro_en_3607-4270-12_v0400.indd 3 07.06.2017 15:53:11
