Datasheet RTM3000 oscilloscope (Rohde&Schwarz) - 4
| Manufacturer | Rohde&Schwarz |
| Description | Oscilloscope Specifications |
| Pages / Page | 32 / 4 — Version 05.01, March 2018. Base unit. Vertical system. Rohde & Schwarz |
| Revision | 05.01 |
| File Format / Size | PDF / 2.2 Mb |
| Document Language | English |

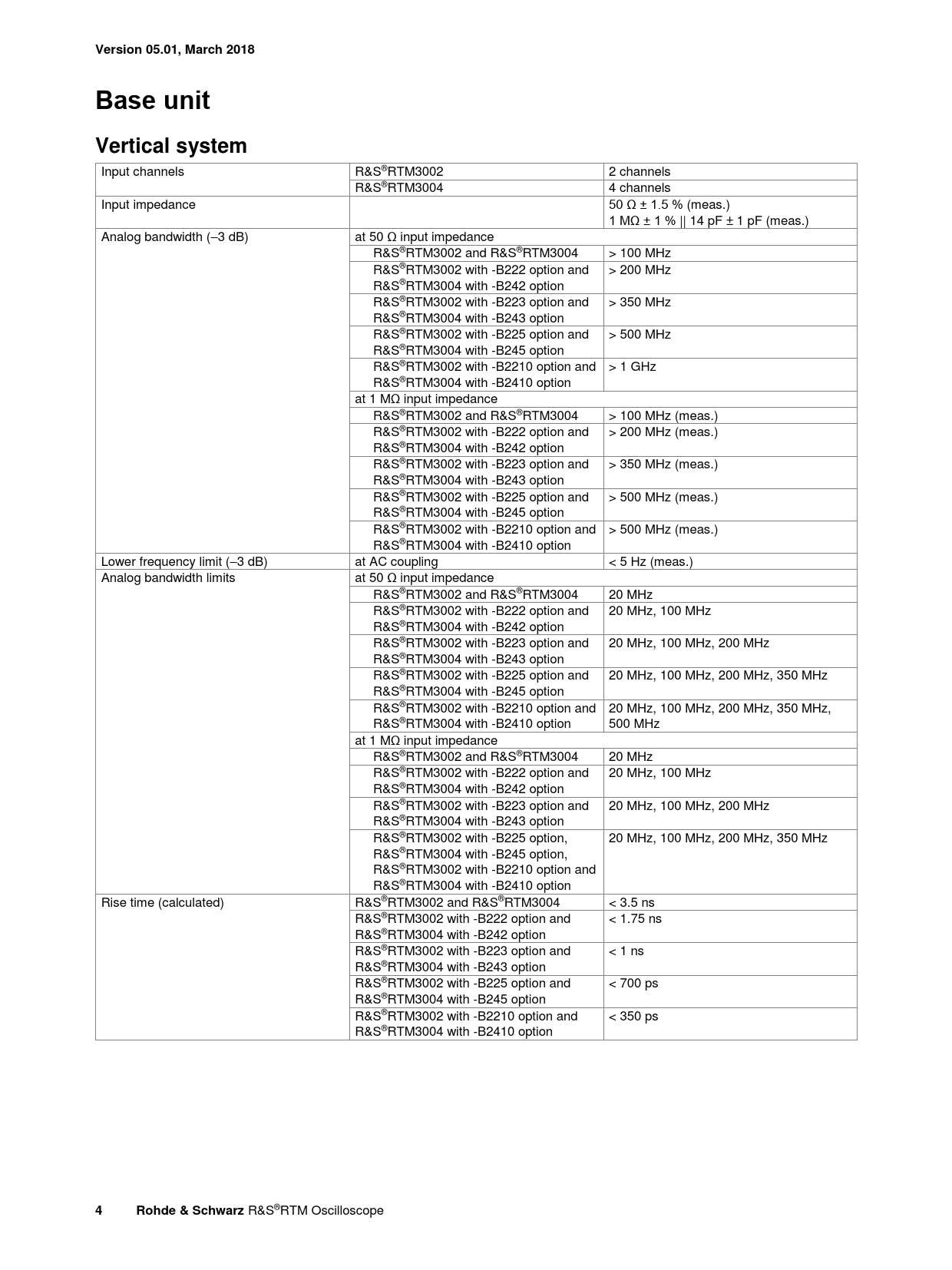

Version 05.01, March 2018. Base unit. Vertical system. Rohde & Schwarz
Text Version of Document
Version 05.01, March 2018 Base unit Vertical system
Input channels R&S®RTM3002 2 channels R&S®RTM3004 4 channels Input impedance 50 Ω ± 1.5 % (meas.) 1 MΩ ± 1 % || 14 pF ± 1 pF (meas.) Analog bandwidth (–3 dB) at 50 Ω input impedance R&S®RTM3002 and R&S®RTM3004 > 100 MHz R&S®RTM3002 with -B222 option and > 200 MHz R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and > 350 MHz R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option and > 500 MHz R&S®RTM3004 with -B245 option R&S®RTM3002 with -B2210 option and > 1 GHz R&S®RTM3004 with -B2410 option at 1 MΩ input impedance R&S®RTM3002 and R&S®RTM3004 > 100 MHz (meas.) R&S®RTM3002 with -B222 option and > 200 MHz (meas.) R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and > 350 MHz (meas.) R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option and > 500 MHz (meas.) R&S®RTM3004 with -B245 option R&S®RTM3002 with -B2210 option and > 500 MHz (meas.) R&S®RTM3004 with -B2410 option Lower frequency limit (–3 dB) at AC coupling < 5 Hz (meas.) Analog bandwidth limits at 50 Ω input impedance R&S®RTM3002 and R&S®RTM3004 20 MHz R&S®RTM3002 with -B222 option and 20 MHz, 100 MHz R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and 20 MHz, 100 MHz, 200 MHz R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option and 20 MHz, 100 MHz, 200 MHz, 350 MHz R&S®RTM3004 with -B245 option R&S®RTM3002 with -B2210 option and 20 MHz, 100 MHz, 200 MHz, 350 MHz, R&S®RTM3004 with -B2410 option 500 MHz at 1 MΩ input impedance R&S®RTM3002 and R&S®RTM3004 20 MHz R&S®RTM3002 with -B222 option and 20 MHz, 100 MHz R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and 20 MHz, 100 MHz, 200 MHz R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option, 20 MHz, 100 MHz, 200 MHz, 350 MHz R&S®RTM3004 with -B245 option, R&S®RTM3002 with -B2210 option and R&S®RTM3004 with -B2410 option Rise time (calculated) R&S®RTM3002 and R&S®RTM3004 < 3.5 ns R&S®RTM3002 with -B222 option and < 1.75 ns R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and < 1 ns R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option and < 700 ps R&S®RTM3004 with -B245 option R&S®RTM3002 with -B2210 option and < 350 ps R&S®RTM3004 with -B2410 option
4 Rohde & Schwarz
R&S®RTM Oscilloscope
Input channels R&S®RTM3002 2 channels R&S®RTM3004 4 channels Input impedance 50 Ω ± 1.5 % (meas.) 1 MΩ ± 1 % || 14 pF ± 1 pF (meas.) Analog bandwidth (–3 dB) at 50 Ω input impedance R&S®RTM3002 and R&S®RTM3004 > 100 MHz R&S®RTM3002 with -B222 option and > 200 MHz R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and > 350 MHz R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option and > 500 MHz R&S®RTM3004 with -B245 option R&S®RTM3002 with -B2210 option and > 1 GHz R&S®RTM3004 with -B2410 option at 1 MΩ input impedance R&S®RTM3002 and R&S®RTM3004 > 100 MHz (meas.) R&S®RTM3002 with -B222 option and > 200 MHz (meas.) R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and > 350 MHz (meas.) R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option and > 500 MHz (meas.) R&S®RTM3004 with -B245 option R&S®RTM3002 with -B2210 option and > 500 MHz (meas.) R&S®RTM3004 with -B2410 option Lower frequency limit (–3 dB) at AC coupling < 5 Hz (meas.) Analog bandwidth limits at 50 Ω input impedance R&S®RTM3002 and R&S®RTM3004 20 MHz R&S®RTM3002 with -B222 option and 20 MHz, 100 MHz R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and 20 MHz, 100 MHz, 200 MHz R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option and 20 MHz, 100 MHz, 200 MHz, 350 MHz R&S®RTM3004 with -B245 option R&S®RTM3002 with -B2210 option and 20 MHz, 100 MHz, 200 MHz, 350 MHz, R&S®RTM3004 with -B2410 option 500 MHz at 1 MΩ input impedance R&S®RTM3002 and R&S®RTM3004 20 MHz R&S®RTM3002 with -B222 option and 20 MHz, 100 MHz R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and 20 MHz, 100 MHz, 200 MHz R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option, 20 MHz, 100 MHz, 200 MHz, 350 MHz R&S®RTM3004 with -B245 option, R&S®RTM3002 with -B2210 option and R&S®RTM3004 with -B2410 option Rise time (calculated) R&S®RTM3002 and R&S®RTM3004 < 3.5 ns R&S®RTM3002 with -B222 option and < 1.75 ns R&S®RTM3004 with -B242 option R&S®RTM3002 with -B223 option and < 1 ns R&S®RTM3004 with -B243 option R&S®RTM3002 with -B225 option and < 700 ps R&S®RTM3004 with -B245 option R&S®RTM3002 with -B2210 option and < 350 ps R&S®RTM3004 with -B2410 option
4 Rohde & Schwarz
R&S®RTM Oscilloscope
