Datasheet RTM3000 oscilloscope (Rohde&Schwarz) - 10
| Manufacturer | Rohde&Schwarz |
| Description | Oscilloscope Specifications |
| Pages / Page | 32 / 10 — Version 05.01, March 2018. Mask testing. Waveform maths. Fast Fourier … |
| Revision | 05.01 |
| File Format / Size | PDF / 2.2 Mb |
| Document Language | English |

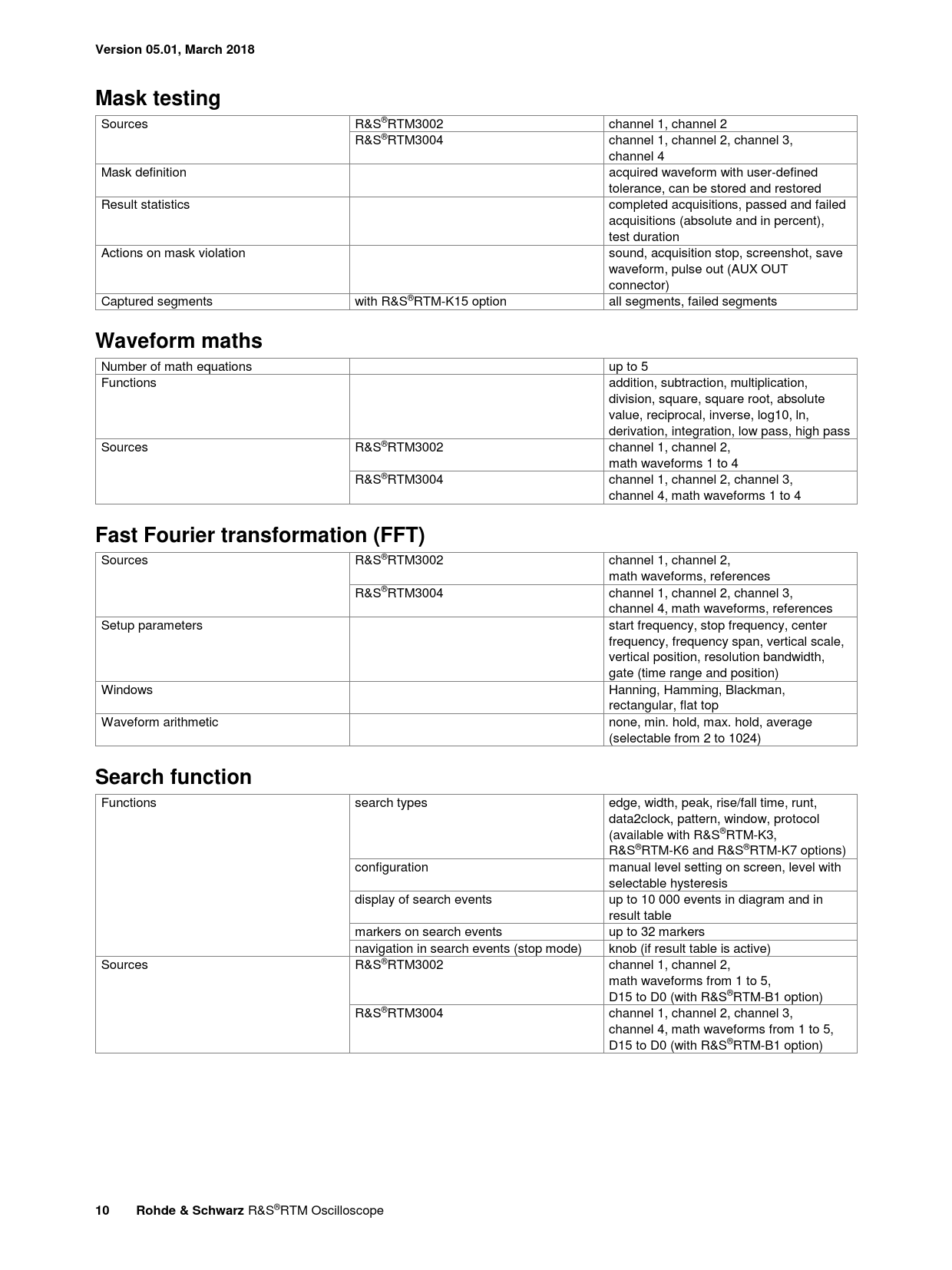

Version 05.01, March 2018. Mask testing. Waveform maths. Fast Fourier transformation (FFT). Search function. Rohde & Schwarz
Text Version of Document
Version 05.01, March 2018 Mask testing
Sources R&S®RTM3002 channel 1, channel 2 R&S®RTM3004 channel 1, channel 2, channel 3, channel 4 Mask definition acquired waveform with user-defined tolerance, can be stored and restored Result statistics completed acquisitions, passed and failed acquisitions (absolute and in percent), test duration Actions on mask violation sound, acquisition stop, screenshot, save waveform, pulse out (AUX OUT connector) Captured segments with R&S®RTM-K15 option all segments, failed segments
Waveform maths
Number of math equations up to 5 Functions addition, subtraction, multiplication, division, square, square root, absolute value, reciprocal, inverse, log10, ln, derivation, integration, low pass, high pass Sources R&S®RTM3002 channel 1, channel 2, math waveforms 1 to 4 R&S®RTM3004 channel 1, channel 2, channel 3, channel 4, math waveforms 1 to 4
Fast Fourier transformation (FFT)
Sources R&S®RTM3002 channel 1, channel 2, math waveforms, references R&S®RTM3004 channel 1, channel 2, channel 3, channel 4, math waveforms, references Setup parameters start frequency, stop frequency, center frequency, frequency span, vertical scale, vertical position, resolution bandwidth, gate (time range and position) Windows Hanning, Hamming, Blackman, rectangular, flat top Waveform arithmetic none, min. hold, max. hold, average (selectable from 2 to 1024)
Search function
Functions search types edge, width, peak, rise/fall time, runt, data2clock, pattern, window, protocol (available with R&S®RTM-K3, R&S®RTM-K6 and R&S®RTM-K7 options) configuration manual level setting on screen, level with selectable hysteresis display of search events up to 10 000 events in diagram and in result table markers on search events up to 32 markers navigation in search events (stop mode) knob (if result table is active) Sources R&S®RTM3002 channel 1, channel 2, math waveforms from 1 to 5, D15 to D0 (with R&S®RTM-B1 option) R&S®RTM3004 channel 1, channel 2, channel 3, channel 4, math waveforms from 1 to 5, D15 to D0 (with R&S®RTM-B1 option)
